HEADLAMP COVER

SFV650 GLADIUS 2009 (K9) USA (E03)

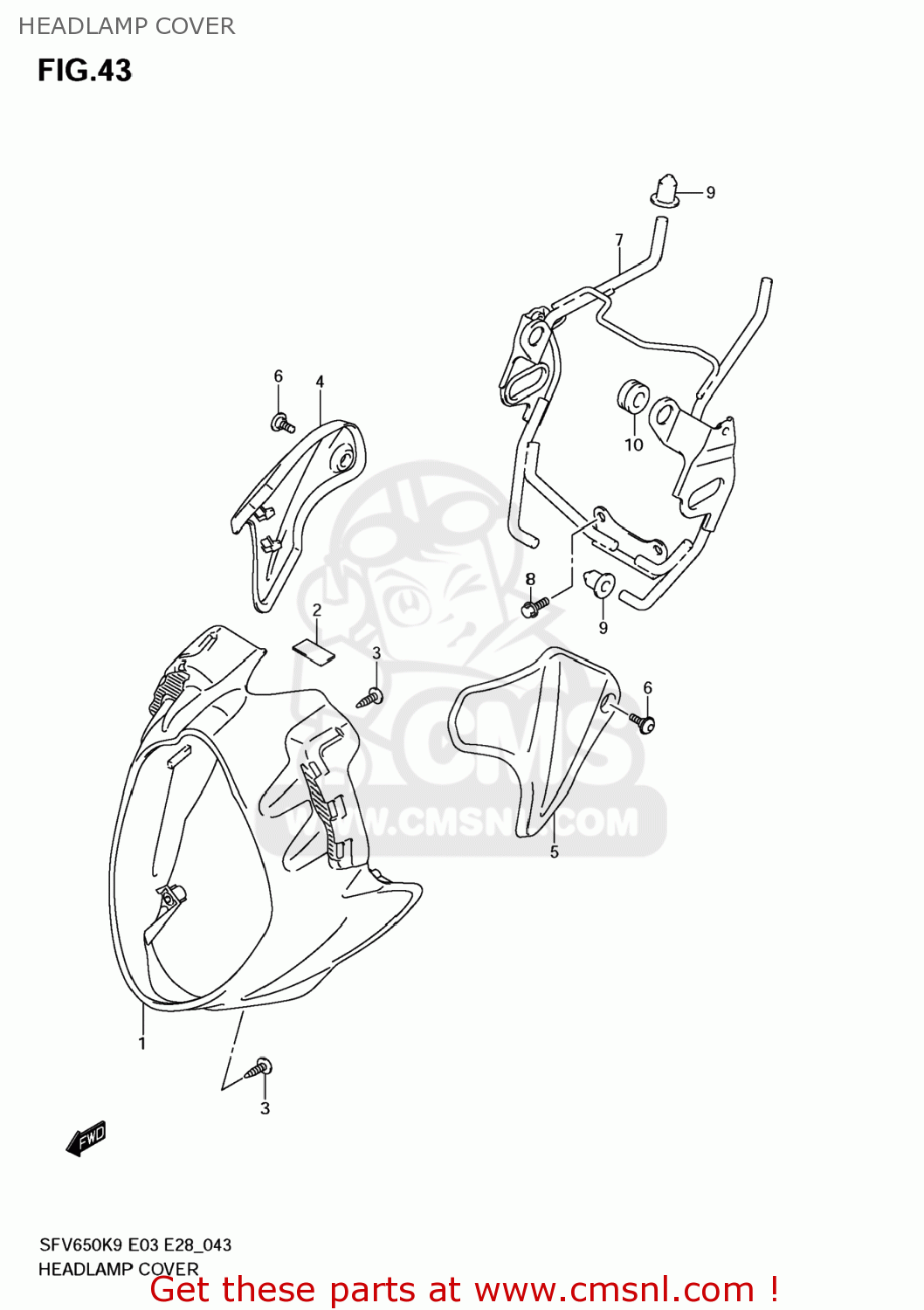

Headlamp cover diagram SFV650 GLADIUS 2009 (K9) USA (E03)

HEADLAMP COVER SFV650 GLADIUS 2009 (K9) USA (E03)

HEADLAMP COVER SFV650 GLADIUS 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5181144H00291
ref: 1

COVER,HEADLAMP

€ 39.00

2

4454310G00
ref: 2

CUSHION,FUEL TANK NO.2

€ 4.50

3

035410516A
ref: 3

SCREW

€ 1.50

4

5182144H00YD8
ref: 4

COVER,HEADLAMP,R

€ 38.50

5

5183144H00YD8
ref: 5

COVER,HEADLAMP,L

€ 50.00

6

0913905064
ref: 6

SCREW(5X13)

€ 2.50

7

5185044H00
ref: 7

BRACE,HEADLAMP HOUSING

€ 142.00

8

015470612B
ref: 8

BOLT

€ 2.00

9

5183121D00
ref: 9

CUSHION,HEADLAMP HOUSING BRACE

€ 3.00

10

0932010501
ref: 10

CUSHION

€ 5.50
