SFV650 GLADIUS 2009 (K9) USA (E03)

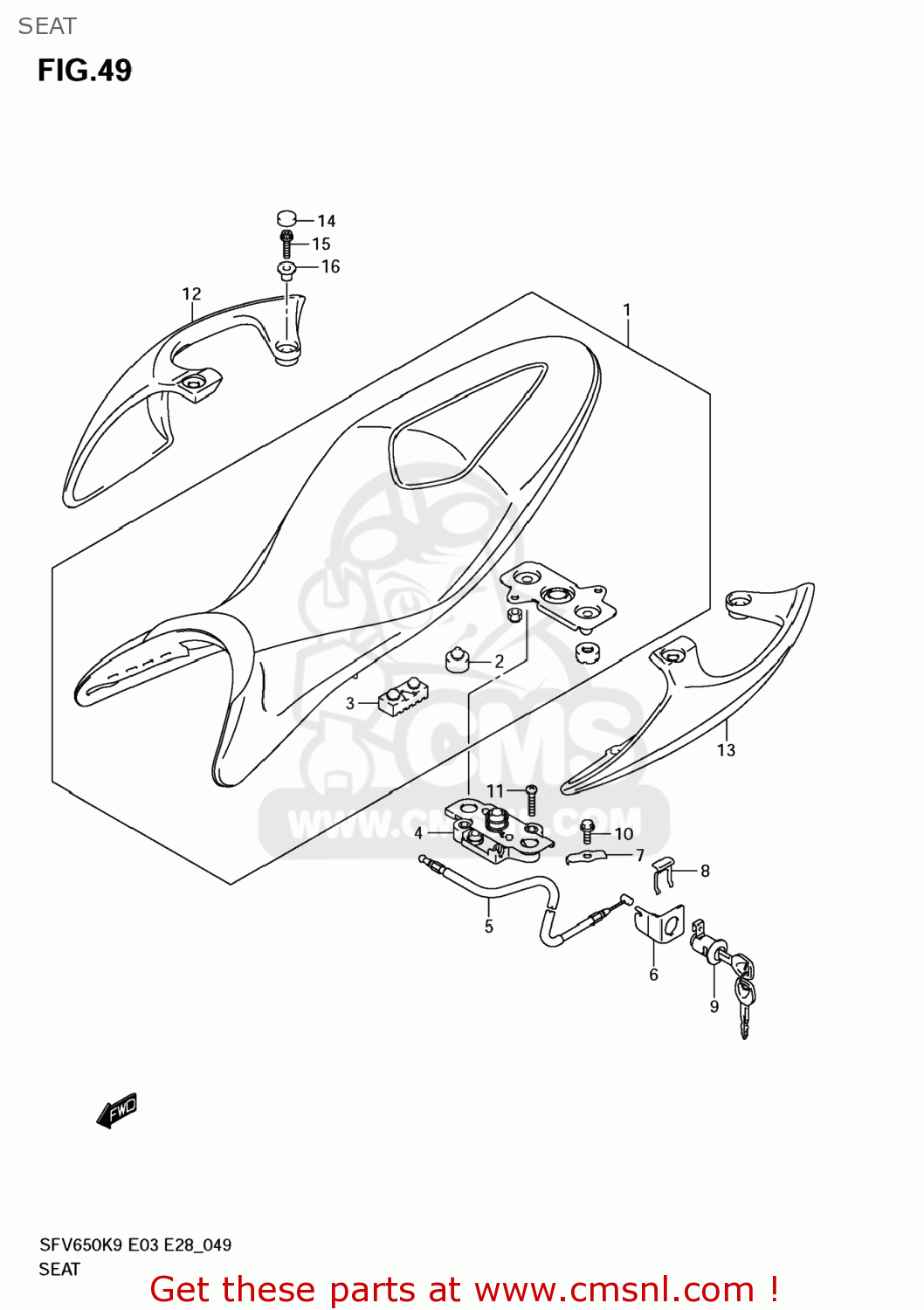

Seat diagram SFV650 GLADIUS 2009 (K9) USA (E03)
SEAT SFV650 GLADIUS 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510044H00GZJ
ref: 1
SEAT ASSY
€ 422.00
2
0932110011
ref: 2
CUSHION
€ 3.00
3
4514942F00
ref: 3
CUSHION
€ 4.50
4
4522015H00
ref: 4
BRACKET,STRIKER SUPPORT
€ 58.50
5
4528044H00
ref: 5
CABLE COMP,SEA
€ 17.50
6
4528814F00
ref: 6
GUIDE,SEAT LOCK CABLE
€ 3.00
7
4528844H00
ref: 7
GUIDE,SEAT LOCK CABLE
€ 8.50
8
4528911F00
ref: 8
PLATE,SEAT LOCK ASSY
€ 3.00
9
9570014810
ref: 9
LOCK SET,SEAT
€ 75.50
10
015470612A
ref: 10
BOLT
€ 2.00
11
021120630A
ref: 11
SCREW
€ 2.00
12
4621144H00YD8
ref: 12
HANDLE,PILLION RIDER,R
€ 150.00
12
4621144H00YD8
ref: 12
HANDLE,PILLION RIDER,R
€ 150.00
13-1
4623144H00YD8
ref: 13-1
HANDLE,PILLION RIDER,L
€ 150.00
13-1
4623144H00YD8
ref: 13-1
HANDLE,PILLION RIDER,L
€ 150.00
13-2
4623144H10YD8
ref: 13-2
HANDLE,PILLION RIDER,L
€ 146.00
13-2
4623144H10YD8
ref: 13-2
HANDLE,PILLION RIDER,L
€ 146.00
14
4627114G00
ref: 14
CAP
€ 3.00
15
0910608151
ref: 15
BOLT(8X25)
€ 3.50
16
0916908049
ref: 16
WASHER
€ 3.00
