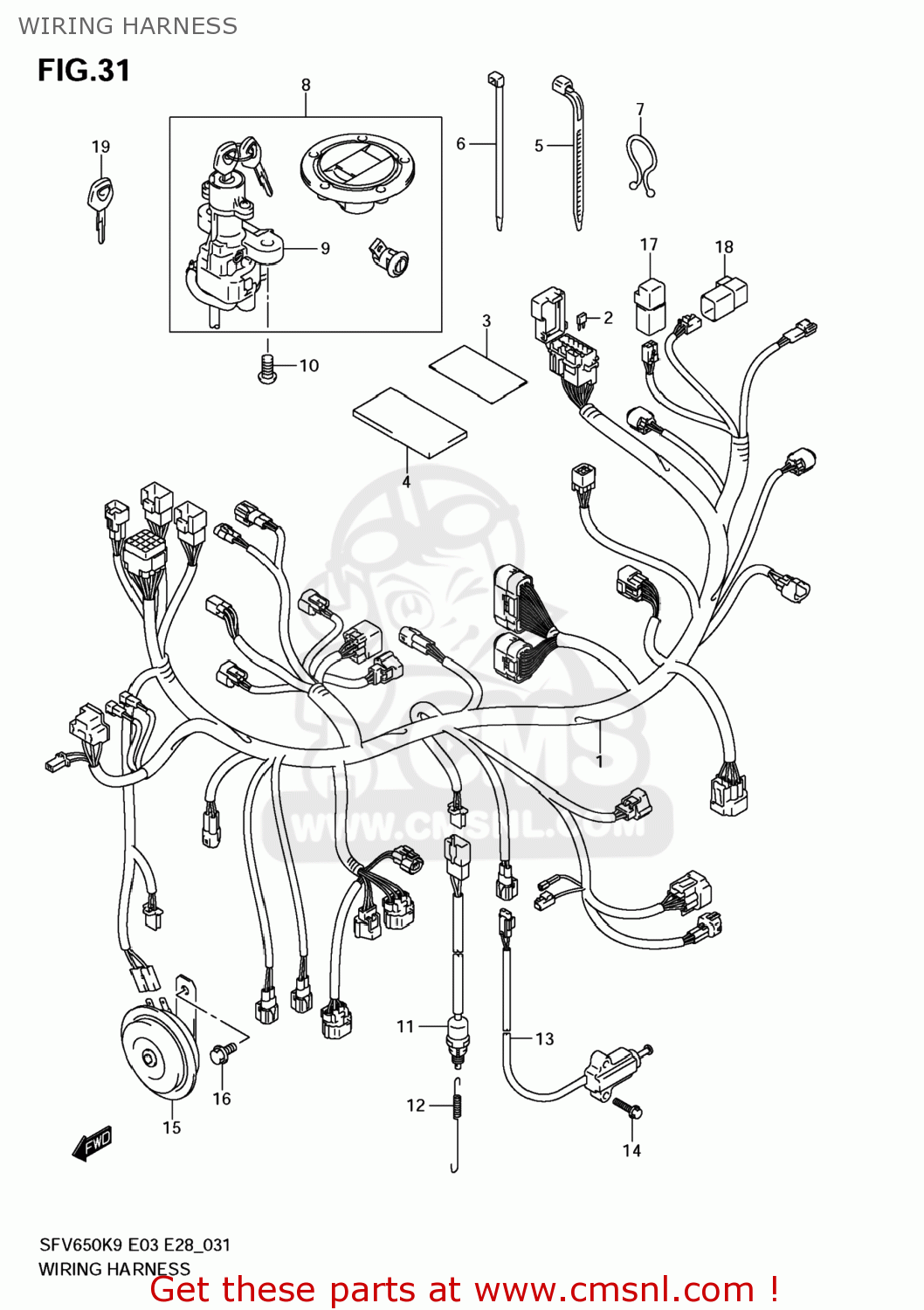

WIRING HARNESS

ref

part #

description

quantity

1-1

3661044H30
ref: 1-1

HARNESS,WIRING

€ 590.00

1-2

3661044H40
ref: 1-2

HARNESS,WIRING

€ 0.00

2-1

0948110501
ref: 2-1

FUSE(10A)

€ 3.00

2-2

0948115501
ref: 2-2

FUSE(15A)

€ 1.00

3

3661116G00
ref: 3

TAPE,WIRING HARNESS(28X50X0.13

€ 2.00

4

3692008D00
ref: 4

PROTECTOR(30X60X3)

€ 2.00

5-1

0940711401
ref: 5-1

CLAMP(L:95)

€ 2.50

5-2

0940714403
ref: 5-2

CLAMP(L:125)

€ 2.50

5-3

0940718402
ref: 5-3

CLAMP(L:165)

€ 2.50

5-4

0940719401
ref: 5-4

CLAMP(L:190)

€ 2.00

6

0940714407
ref: 6

CLAMP(L:145)

€ 4.00

7

0940800012
ref: 7

CLIP(ID:11.5)

€ 2.00

8-1

3700016840
ref: 8-1

LOCK SET

€ 506.00

8-2

3700016890
ref: 8-2

LOCK SET

€ 0.00

9

3710016G00
ref: 9

LOCK ASSY,STEERING

€ 211.00

10

0913908016
ref: 10

BOLT(8X20)

€ 3.50

11

3774044H00
ref: 11

SWITCH ASSY,ST

€ 15.00

12

0944306016
ref: 12

SPRING

€ 2.50

13

3784025D00
ref: 13

SWITCH ASSY,SIDE STAND

€ 63.50

14

015470625A
ref: 14

BOLT

€ 2.50

15

3850016G01
ref: 15

HORN ASSY

€ 58.50

16

015500812A
ref: 16

BOLT

€ 2.50

17

3874024X50
ref: 17

RELAY ASSY

€ 37.50

18

3874024X50
ref: 18

RELAY ASSY

€ 37.50

19

3714633E00
ref: 19

KEY,BLANK

€ 13.00
