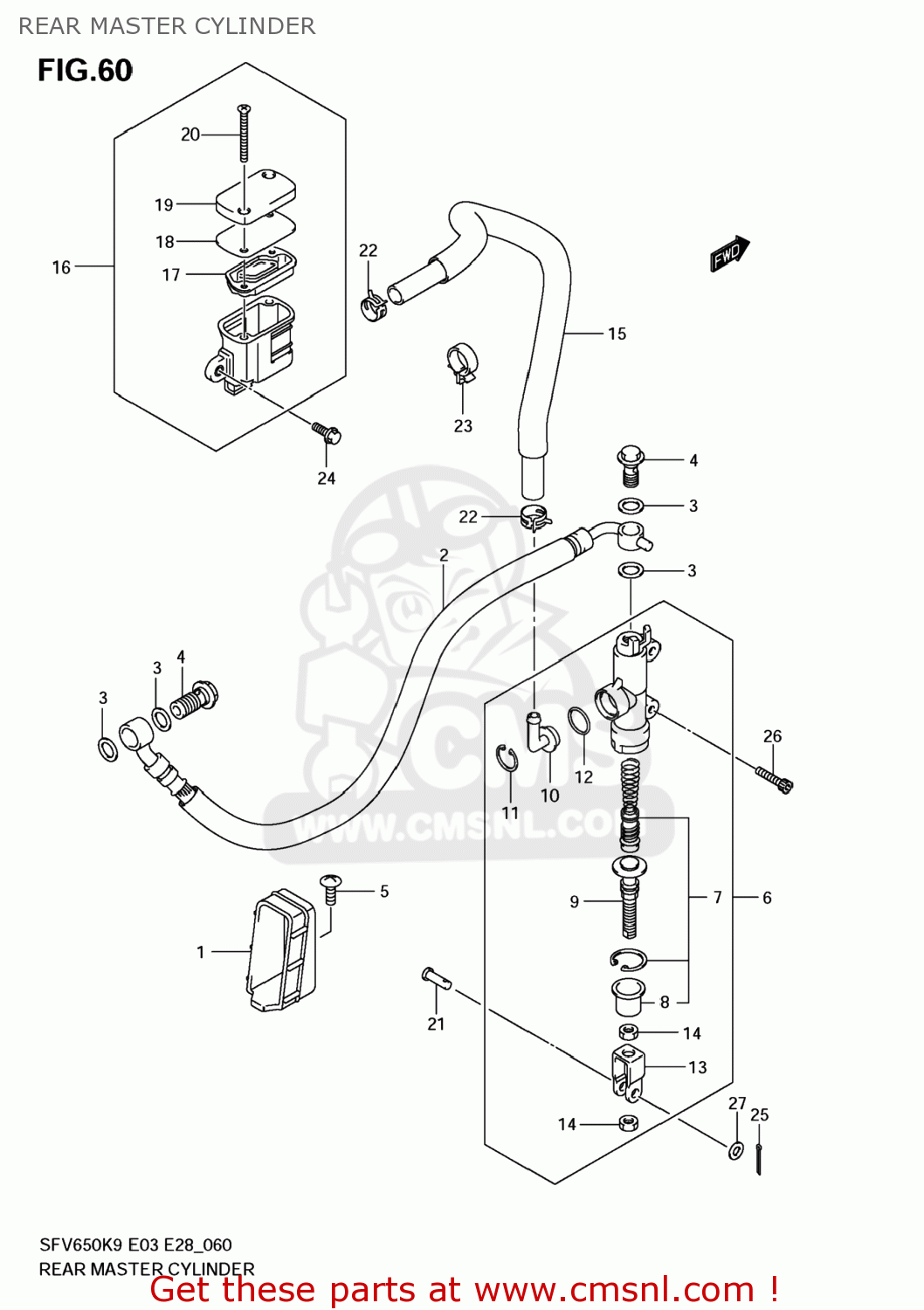

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6924344H00
ref: 1

GUIDE,RR BRAKE HOSE

€ 5.50

2

6948044H00
ref: 2

HOSE,RR BRAKE

€ 70.00

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

0936010062
ref: 4

BOLT UNION

€ 5.00

5

021420616A
ref: 5

SCREW

€ 2.50

6

6960044H00
ref: 6

CYLINDER ASSY,RR MASTER

€ 139.50

7

6960034820
ref: 7

PISTON/CUP SET

€ 37.00

8

6969100A00
ref: 8

BOOT

€ 3.50

9

6967048B00
ref: 9

ROD,PUSH

€ 20.50

10

6967200B20
ref: 10

CONNECTOR

€ 5.00

11

6967400B20
ref: 11

CIRCLIP

€ 3.00

12

6968634200
ref: 12

O RING

€ 3.50

13

6969244H00
ref: 13

YOKE

€ 10.50

14

6969305A00
ref: 14

NUT

€ 1.50

15

6973044H00
ref: 15

HOSE,RR RESERVOIR TANK

€ 49.50

16

6974001H10
ref: 16

TANK ASSY,RESERVOIR

€ 21.50

17

6966701H00
ref: 17

DIAPHRAGM

€ 4.50

18

6966801H00
ref: 18

PLATE,DIAPHRAGM

€ 3.50

19

6966901H00
ref: 19

CAP

€ 8.50

20

6968901H00
ref: 20

SCREW

€ 3.00

21

0920006068
ref: 21

PIN(6X18.2)

€ 5.00

22

0940112404
ref: 22

CLIP

€ 2.50

23

0940316412
ref: 23

CLAMP

€ 4.00

24

015470612A
ref: 24

BOLT

€ 2.00

25

041112015A
ref: 25

PIN

€ 1.50

26

0713006257
ref: 26

BOLT

€ 2.50

27

083220106A
ref: 27

WASHER

€ 2.00
