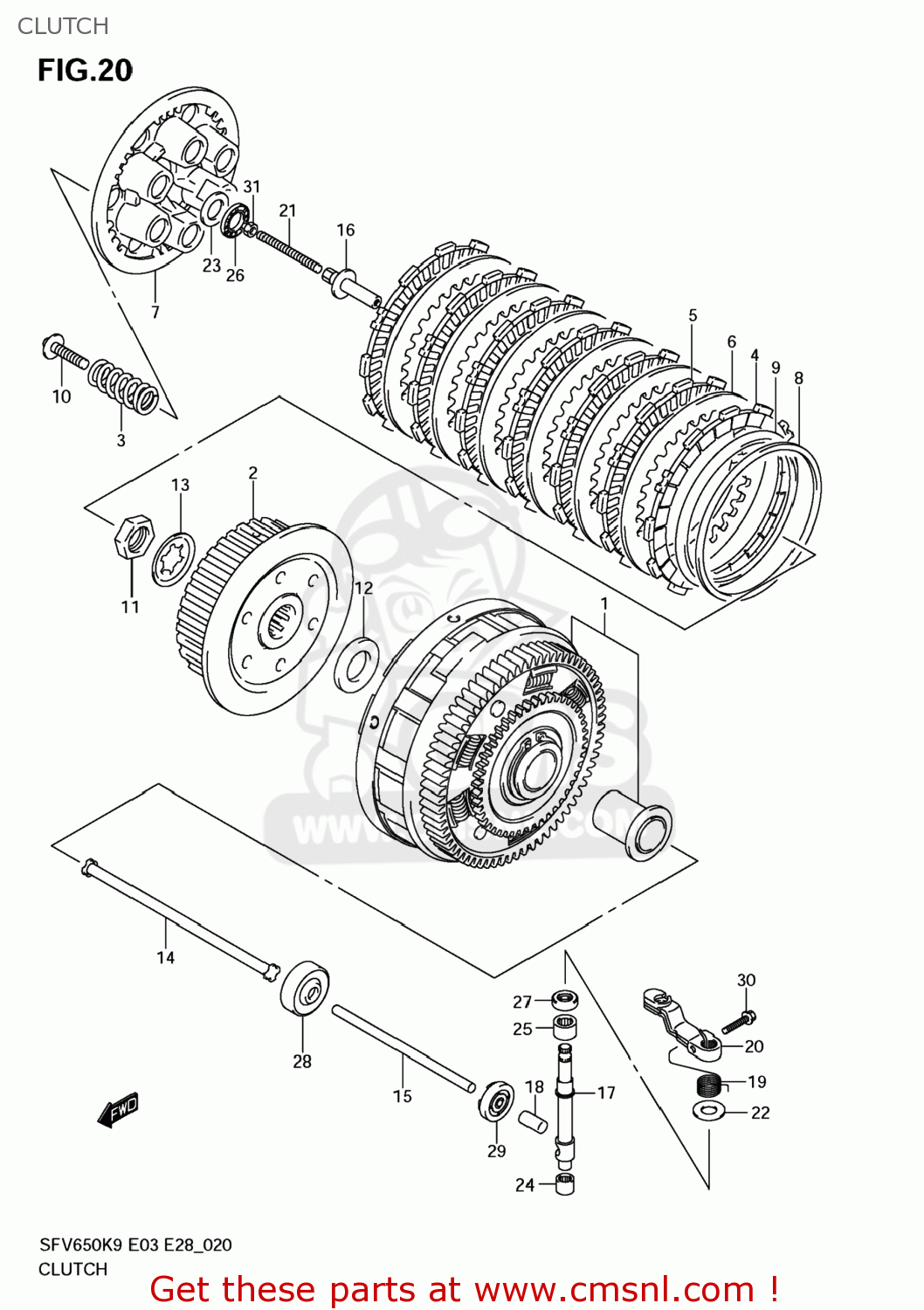

CLUTCH

ref

part #

description

quantity

1

2120044860
ref: 1

GEAR ASSY,PRI DRIVEN

€ 248.00

2

2141144101
ref: 2

HUB,CLUTCH SLEEVE

€ 56.50

3

2141317G01
ref: 3

SPRING,CLUTCH

€ 7.00

4

2144229F10
ref: 4

PLATE,CLUTCH DRIVE NO.2 (NAS)

€ 13.50

5

2144129F30
ref: 5

PLATE,CLUTCH DRIVE (NAS)

€ 14.50

6

2145128C31
ref: 6

PLATE,CLUTCH DRIVEN(T:1.6) (NAS)

€ 10.50

7

2146214301
ref: 7

DISC,CLUTCH PRESSURE

€ 51.00

8

2147117G00
ref: 8

SEAT,WAVE WASHER

€ 8.50

9

2147217G00
ref: 9

WASHER,CLUTCH PLATE WAVE

€ 15.00

10

0911606203
ref: 10

BOLT(6X30)

€ 2.50

11

0914020001
ref: 11

NUT

€ 3.50

12

0916020067
ref: 12

WASHER(20X36X3)

€ 6.50

13

0916720006
ref: 13
09167-20009

WASHER,LOCK

€ 3.00

14

2311044111
ref: 14

ROD,PUSH,R

€ 13.00

15

2311115501
ref: 15

ROD,CLUTCH PUSH,L

€ 11.50

16

2312144H00
ref: 16

PIECE,CLUTCH PUSH

€ 32.00

17

2312244H00
ref: 17

CAMSHAFT,CLUTCH RELEASE

€ 39.50

18

2312341G00
ref: 18

CAP,CLUTCH PUSH ROD

€ 9.00

19

2312541G00
ref: 19

SPRING,CLUTCH RELEASE RETURN

€ 3.00

20

2327144H00
ref: 20

ARM,CLUTCH RELEASE

€ 53.50

21

0913406015
ref: 21

SCREW(6X73)

€ 5.50

22

0916010020
ref: 22

WASHER(10.5X24X1)

€ 2.00

23

0916015045
ref: 23

WASHER(15.5X28X1)

€ 4.00

24

0926310014
ref: 24

BEARING(10X14X10)

€ 12.00

25

0926312027
ref: 25

BEARING(12X18X12)

€ 6.00

26

0926315003
ref: 26

BEARING(15X28X2)

€ 7.00

27

0928210012
ref: 27

SEAL,OIL(10X20X6)

€ 7.50

28

0928306008
ref: 28

SEAL,OIL(6X34X10.5)

€ 13.00

29

0928510004
ref: 29

SEAL,OIL(10X17X5)

€ 3.50

30

0910306223
ref: 30

BOLT(6X20)

€ 2.50

31

083100006A
ref: 31

NUT

€ 2.00
