MAGNETO

SFV650 GLADIUS 2009 (K9) USA (E03)

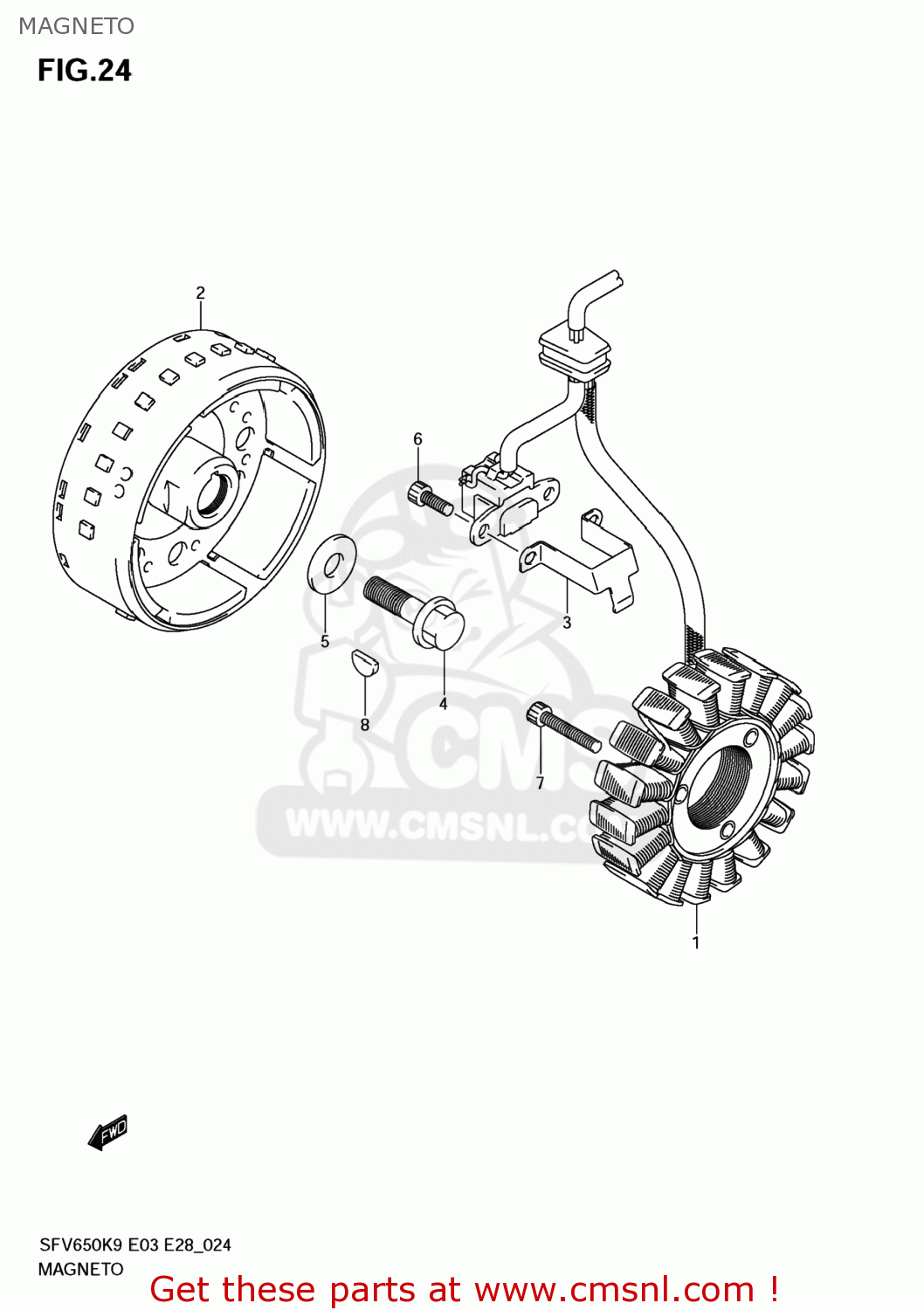

Magneto diagram SFV650 GLADIUS 2009 (K9) USA (E03)

MAGNETO SFV650 GLADIUS 2009 (K9) USA (E03)

MAGNETO SFV650 GLADIUS 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210117G20
ref: 1

STATOR ASSY

€ 369.00

2

3210217G01
ref: 2

ROTOR ASSY

€ 326.50

3

3237119F10
ref: 3

CLAMP,MAGNETO LEAD

€ 4.00

4

0910312004
ref: 4

BOLT(12X40)

€ 3.00

5

0916012036
ref: 5

WASHER(12X30X3)

€ 3.00

6

071300512B
ref: 6

BOLT

€ 2.50

7

071300630B
ref: 7

BOLT

€ 3.00

8

0942004008
ref: 8

KEY

€ 3.50
