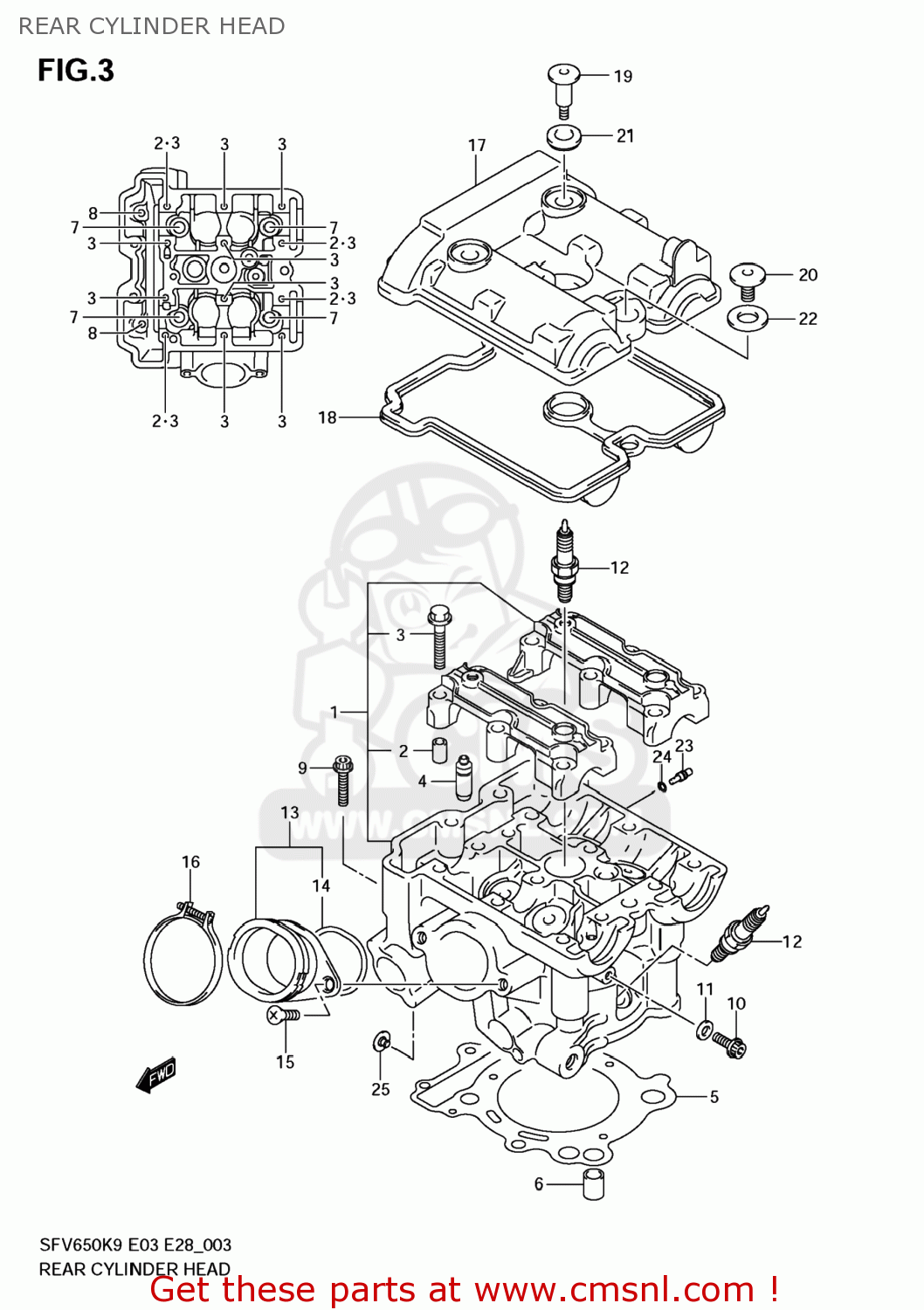

REAR CYLINDER HEAD

ref

part #

description

quantity

1

1110344H00
ref: 1

HEAD ASSY,CYLI

€ 984.00

2

0920608001
ref: 2

PIN(6.2X8X11)

€ 2.00

3

0910306026
ref: 3

BOLT(6X39)

€ 2.00

4

1111518D72
ref: 4

GUIDE,VALVE

€ 18.50

5

1114120F00
ref: 5

GASKET,CYLINDER HEAD (NAS)

€ 31.50

6

0421113189
ref: 6

PIN

€ 2.50

7

1111744H00
ref: 7

BOLT,CYLINDER HEAD(L:160)

€ 12.00

8

0910306103
ref: 8

BOLT(6X70)

€ 2.50

9

071200640B
ref: 9

BOLT

€ 3.50

10

071200612B
ref: 10

BOLT

€ 3.50

11

0916806023
ref: 11

GASKET(5.8X13X1.2) (NAS)

€ 2.00

12-1

0948200556
ref: 12-1

PLUG,SPARK(CR8EIA-9)

€ 20.00

12-2

0948200555
ref: 12-2

PLUG,SPARK(IU24D)

€ 20.00

12-3

0948200558
ref: 12-3

PLUG,SPARK(CR9EIA-9)

€ 21.00

12-4

0948200557
ref: 12-4

PLUG,SPARK(IU27D)

€ 21.00

12-5

0948200554
ref: 12-5

PLUG,SPARK(CR7EIA-9)

€ 13.50

12-6

0948200553
ref: 12-6

PLUG,SPARK(IU22D)

€ 13.50

13

1310217G10
ref: 13

PIPE ASSY,INTAKE RR

€ 42.00

14

0928046006
ref: 14

O RING(D:2.4,ID:47X42)

€ 8.00

15

021220616B
ref: 15

SCREW

€ 2.00

16

1382740H00
ref: 16

CLAMP

€ 11.00

17

1117219F20
ref: 17

COVER,CYLINDER HEAD RR

€ 131.50

18

1117319F01
ref: 18

GASKET,CYLINDER HEAD COVER (NAS)

€ 26.50

19

0910607009
ref: 19

BOLT(7X17.5)

€ 4.50

20

0910607010
ref: 20

BOLT(7X31)

€ 4.50

21

1119127E00
ref: 21

WASHER,CYL HEAD COVER

€ 4.50

22

1119213E00
ref: 22

CUSHION,HEAD COVER BOLT

€ 4.50

23

0949380005
ref: 23

JET(8)

€ 12.00

24

0928004004
ref: 24

O RING(D:1.2,ID:4)

€ 2.00

25

1115127G00
ref: 25

CAP,ENGINE MOUNTING

€ 2.50
