BATTERY HOLDER

SFV650 GLADIUS 2009 (K9) USA (E03)

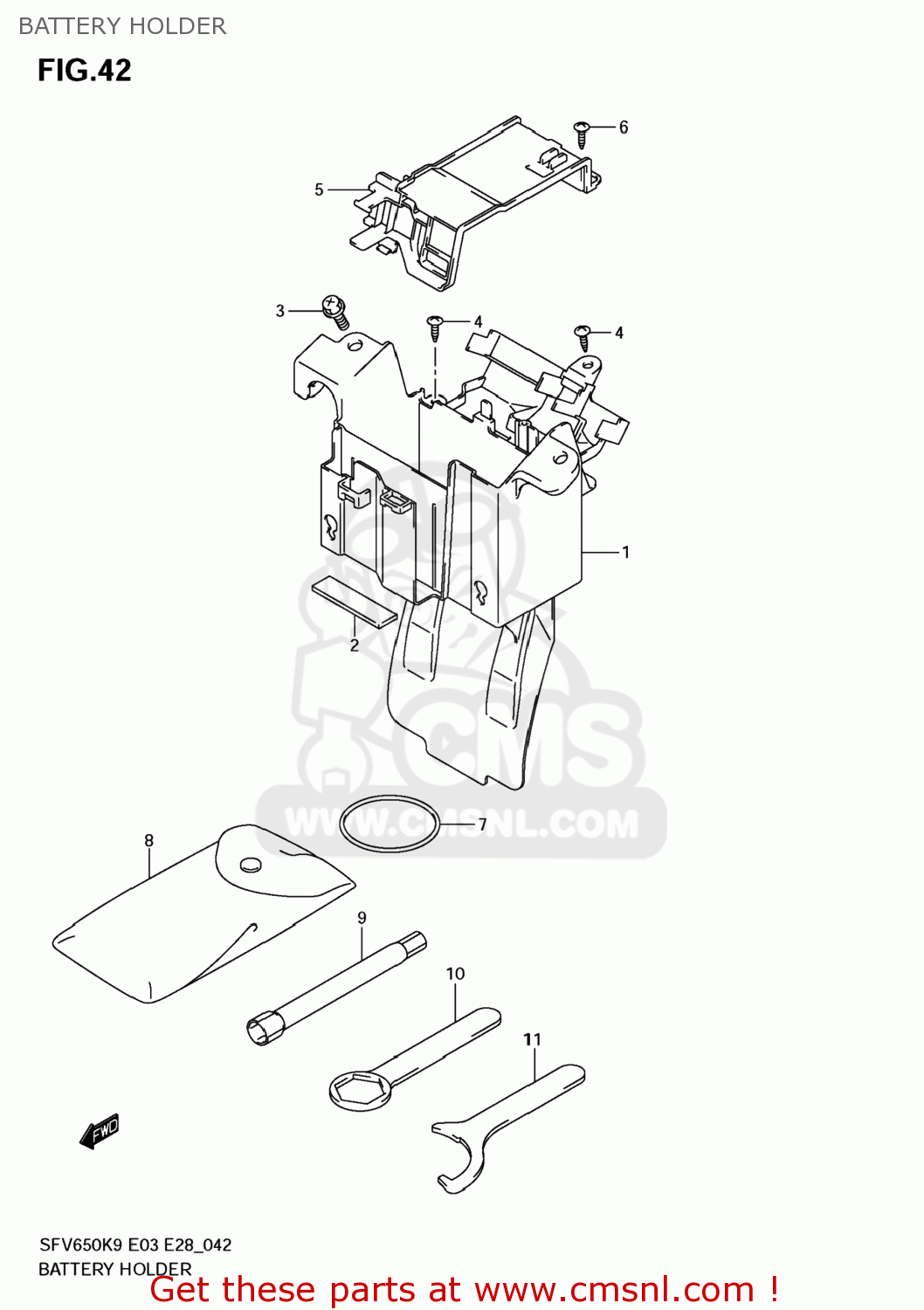

Battery holder diagram SFV650 GLADIUS 2009 (K9) USA (E03)

BATTERY HOLDER SFV650 GLADIUS 2009 (K9) USA (E03)

BATTERY HOLDER SFV650 GLADIUS 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4743144H00
ref: 1

HOLDER,BATTERY

€ 34.00

2

5314540A00
ref: 2

CUSHION,FR FENDER

€ 1.50

3

0911306001
ref: 3

BOLT(6X16)

€ 3.00

4

035410616A
ref: 4

SCREW

€ 2.00

5

4743244H00
ref: 5

LID,BATTERY HOLDER

€ 8.50

6

035410616A
ref: 6

SCREW

€ 2.00

7

0928061002
ref: 7

O RING(D:3.5,ID:61)

€ 5.00

8

0980021055
ref: 8

TOOL ASSY

€ 6.00

9

0981600149
ref: 9

SPARK PLUG WRENCH

€ 16.50

10

0981700040
ref: 10

RING SPANNER

€ 8.50

11

0982200003
ref: 11

CLAMP

€ 6.00
