OIL COOLER

SFV650 GLADIUS 2009 (K9) USA (E03)

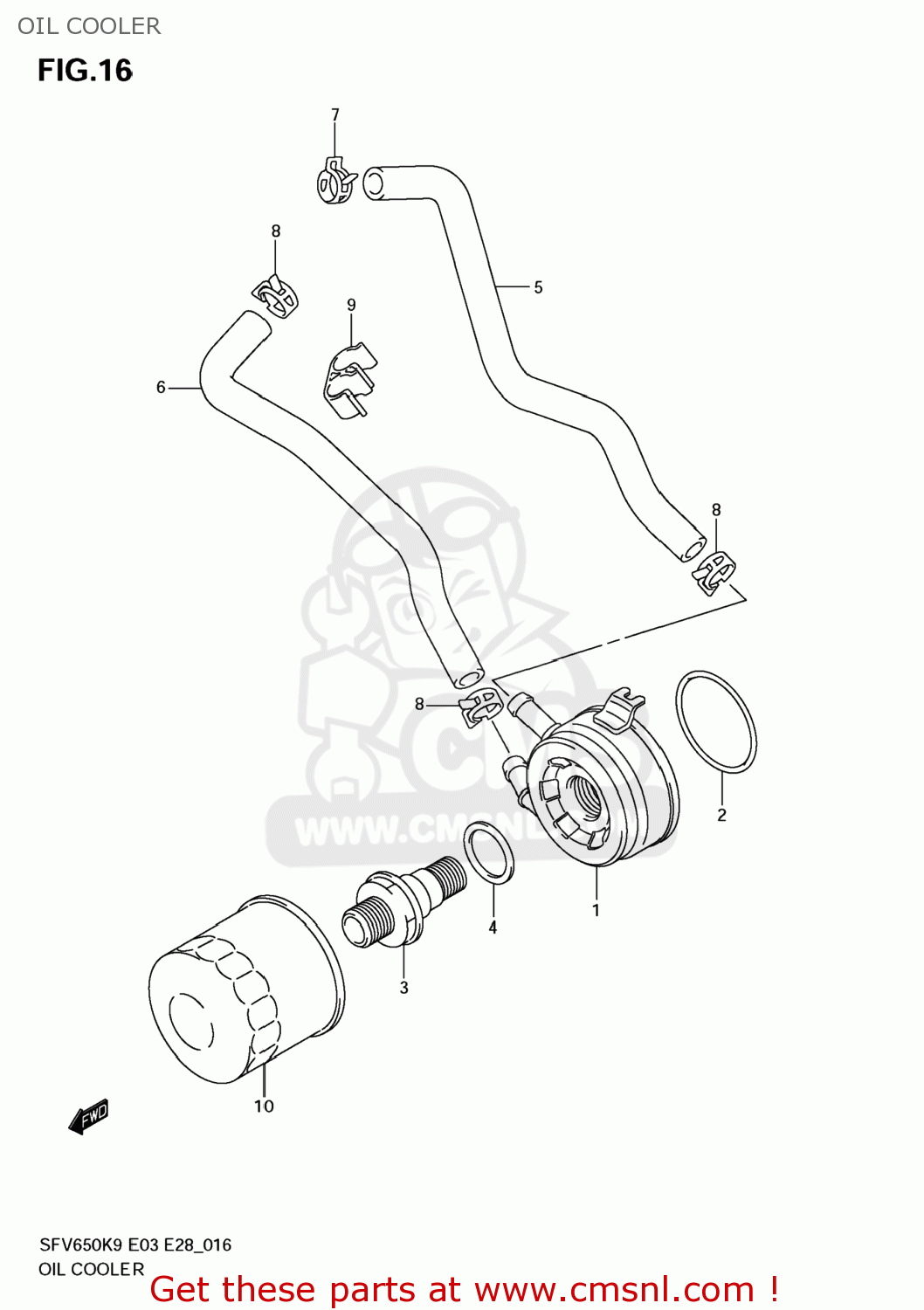

Oil cooler diagram SFV650 GLADIUS 2009 (K9) USA (E03)

OIL COOLER SFV650 GLADIUS 2009 (K9) USA (E03)

OIL COOLER SFV650 GLADIUS 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1660044H00
ref: 1

COOLER ASSY,OIL

€ 500.50

2

0928055002
ref: 2

O RING(D:3.1,ID:54.5)

€ 2.50

3

1659102F00
ref: 3

BOLT,OIL COOLER UNION

€ 31.00

4

0918125160
ref: 4

SHIM(25X34X0.7)

€ 3.00

5

1646144H00
ref: 5

HOSE,OIL COOLER INLET

€ 18.50

6

1647144H00
ref: 6

HOSE,OIL COOLER OUTLET

€ 18.50

7

0940116407
ref: 7

CLIP

€ 2.50

8

0940116409
ref: 8

CLIP

€ 2.50

9

0940800267
ref: 9

CLAMP

€ 2.00

10

1651003G00X07
ref: 10
16510-07J00

FILTER ASSY,EN

€ 12.50
