FRAME LOWER COVER

SFV650 GLADIUS 2009 (K9) USA (E03)

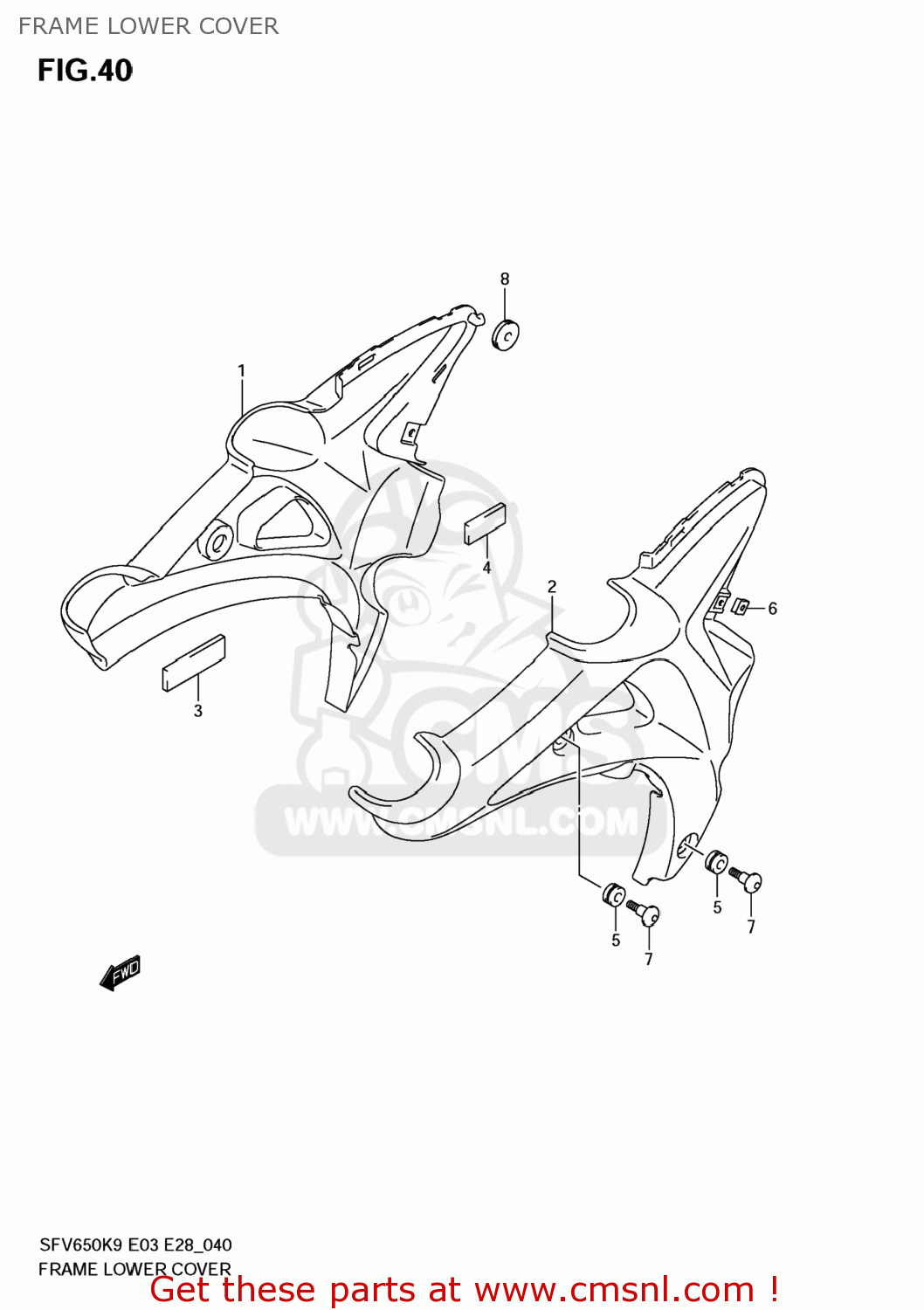

Frame lower cover diagram SFV650 GLADIUS 2009 (K9) USA (E03)

FRAME LOWER COVER SFV650 GLADIUS 2009 (K9) USA (E03)

FRAME LOWER COVER SFV650 GLADIUS 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4761144H00YD8
ref: 1

COVER,FRAME LWR,R

€ 143.50

2

4771144H00YD8
ref: 2

COVER,FRAME LWR,L

€ 143.50

3

4761244H00
ref: 3

CUSHION,FRAME COVER LWR NO.1

€ 3.00

4

4761344H00
ref: 4

CUSHION,FRAME COVER LWR NO.2

€ 3.00

5

0932009016
ref: 5

CUSHION

€ 2.50

6

0914805052
ref: 6

NUT

€ 3.50

7

0913906126
ref: 7

SCREW(6X20)

€ 4.00

8

0932008028
ref: 8

CUSHION

€ 2.50
