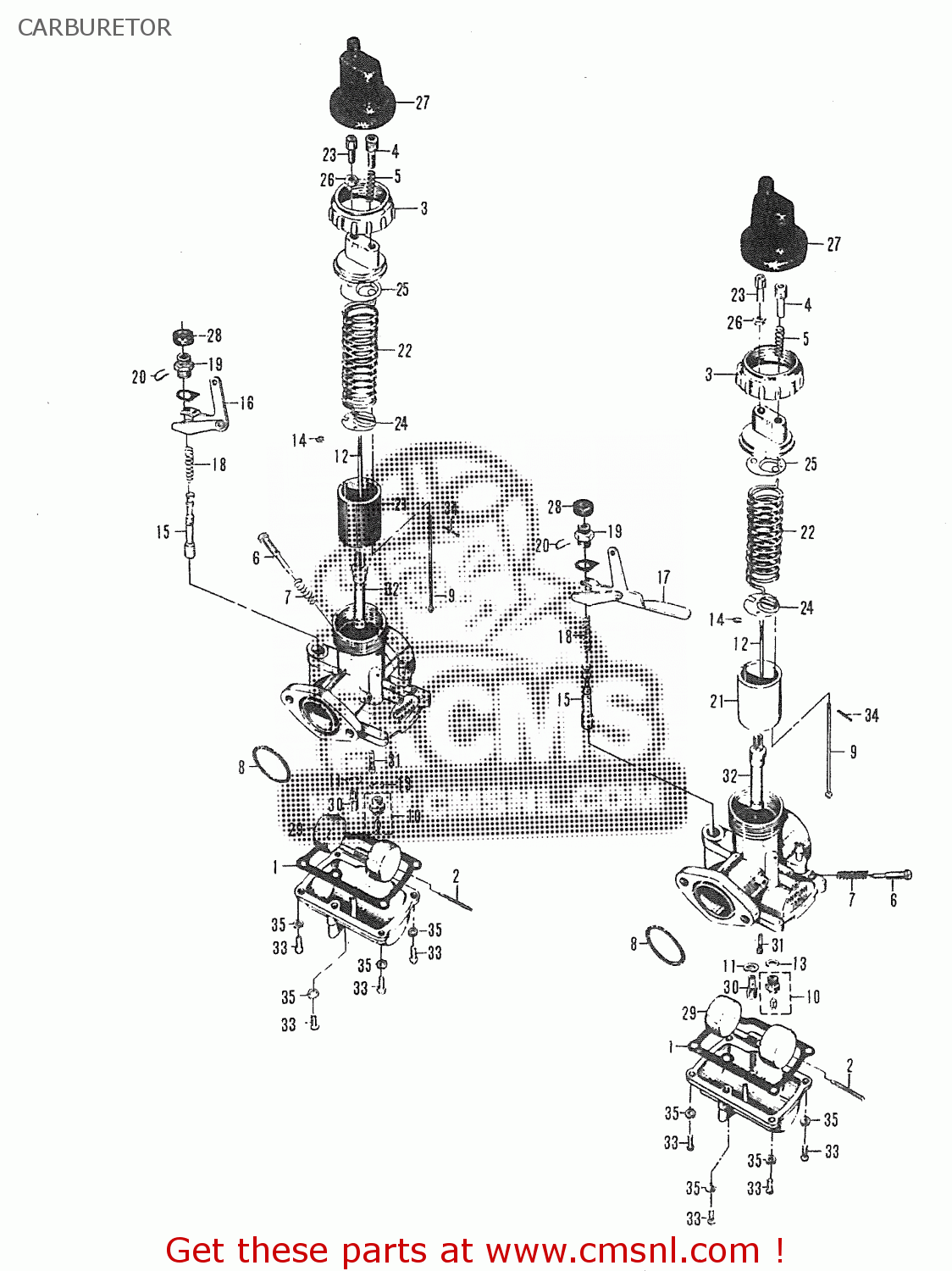

CARBURETOR

ref

part #

description

quantity

1

1325111010
ref: 1

GASKET,FLOAT CHAMBER (NAS)

€ 6.50

2

1325411010
ref: 2

PIN,FLOAT

€ 3.00

3

1326511010
ref: 3

MIXING CHAMBER CAP

€ 3.50

4

1326709210
ref: 4

SCREW,THROTTLE VALVE ADJUST

€ 4.50

5

1326803110
ref: 5

SPRING,THROTTLE SCREW

€ 3.50

6

1326911010
ref: 6

PILOT AIR ADJUSTING SCREW

€ 5.50

7

1327108010
ref: 7

PILOT AIR ADJUSTING SCREW SPRING

€ 3.50

8

1329552010
ref: 8

OUTLET O-RING

€ 0.00

9

1329511010
ref: 9

THROTTLE VALVE ADJUSTING ROD

€ 0.00

10

1337011010
ref: 10
#2.0

VALVE ASSY,NEEDLE

€ 62.50

11

1338203110
ref: 11

WASHER

€ 2.50

12

1338311600
ref: 12
4DH5-3

JET NEEDLE

€ 15.00

12

1338311011
ref: 12
T20-13502
4D4-3

JET NEEDLE

€ 12.50

13

1339201010
ref: 13

GASKET,NEEDLE VALVE (NAS)

€ 2.50

14

1339403010
ref: 14

CLIP,NEEDLE

€ 6.00

15

1341111011
ref: 15

STARTER PLUNGER

€ 27.50

16

1341311010
ref: 16

RIGHT PLUNGER LEVER

€ 16.50

17

1341411010
ref: 17

LEFT PLUNGER LEVER

€ 0.00

18

1341711010
ref: 18

SPRING

€ 6.00

19

1341809210
ref: 19

STARTER PLUNGER CAP

€ 3.00

20

1342611010
ref: 20

STARTER PLUNGER FITTING SPRING

€ 0.00

21

1355111010
ref: 21
CUT-AWAY=2.5

THROTTLE VALVE

€ 50.00

22

1357311011
ref: 22

THROTTLE VALVE SPRING

€ 0.00

23

1357703010
ref: 23

ADJUSTER,CABLE

€ 8.00

24

1358111010
ref: 24

SPRING GUIDE (A)

€ 5.50

25

1358911010
ref: 25

SPRING GUIDE (B)

€ 0.00

26

1366103010
ref: 26

NUT

€ 3.50

27

1368111010
ref: 27

CAP

€ 5.50

28

1368209210
ref: 28

CAP,PLUNGER

€ 3.00

29

1925211010
ref: 29

FLOAT

€ 23.50

30

0949195002
ref: 30
STANDARD (#95)

JET MAIN (95)

€ 8.00

30

0949185002
ref: 30
OPTIONAL (#85)

JET,MAIN 85

€ 6.00

30

0949190002
ref: 30
OPTIONAL (#90)

JET,MAIN 90

€ 9.50

30

0949120002
ref: 30
OPTIONAL (#100)

JET,MAIN(100)

€ 7.00

30

0949122003
ref: 30
OPTIONAL (#110)

JET,MAIN 110

€ 7.50

31

0949235001
ref: 31
#35

JET,PILOT

€ 6.50

32

0949400017
ref: 32
N-6

JET,NEEDLE(SN-6)

€ 17.50

33

0211104161
ref: 33

CROSS HEAD SCREW

€ 0.00

34

0411112081
ref: 34

COTTER PIN

€ 2.00

35

0832121041
ref: 35

LOCK WASHER

€ 2.00
