TC250 OIL PLUG/FILLER PIPE-DRIVE CHAIN-GEAR SHIFTING-KICKSTART

T20 TC250 SCRAMBLER 1965-1969 GENERAL EXPORT

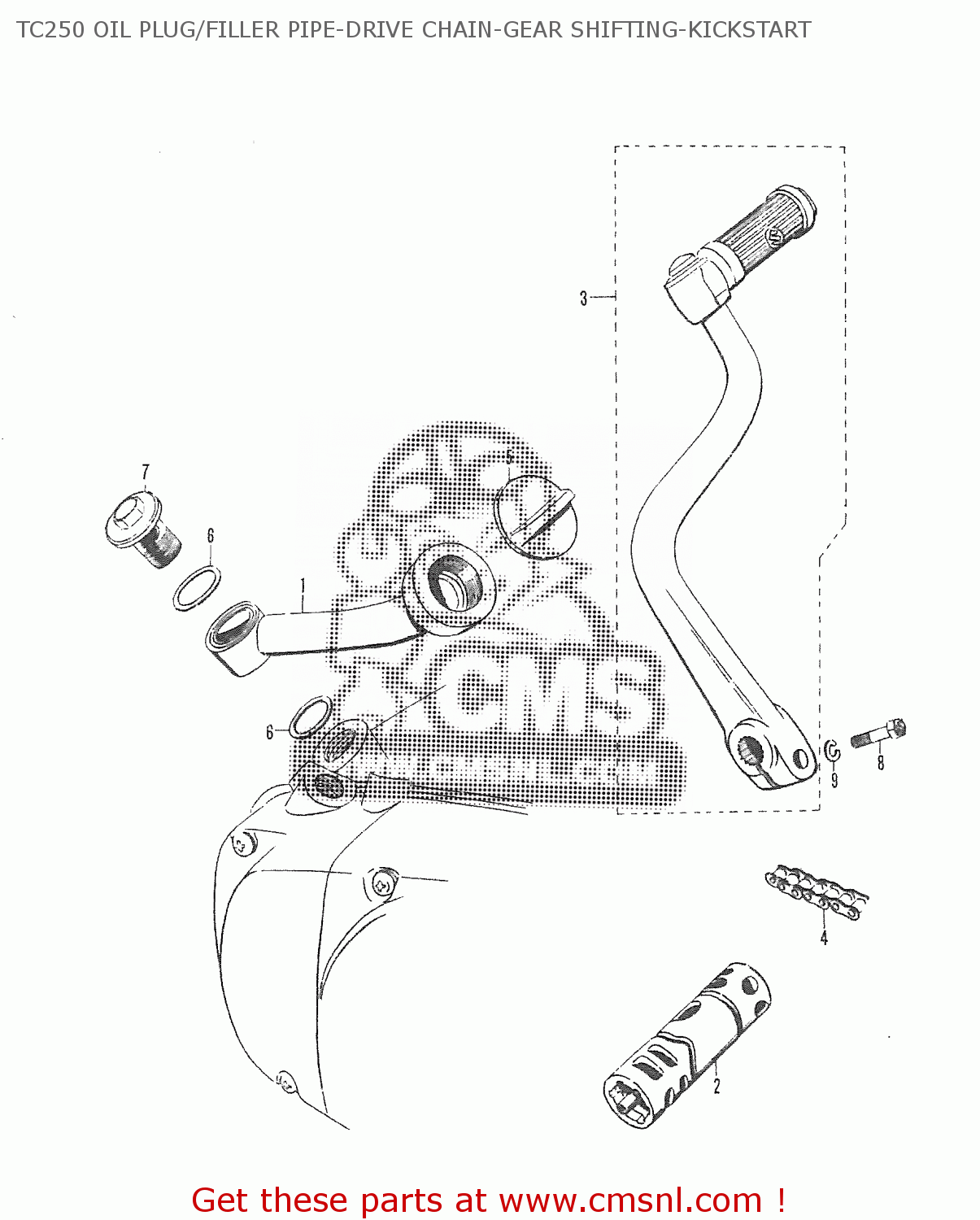

Tc250 oil plug/filler pipe-drive chain-gear shifting-kickstart diagram T20 TC250 SCRAMBLER 1965-1969 GENERAL EXPORT

TC250 OIL PLUG/FILLER PIPE-DRIVE CHAIN-GEAR SHIFTING-KICKSTART T20 TC250 SCRAMBLER 1965-1969 GENERAL EXPORT
TC250 OIL PLUG/FILLER PIPE-DRIVE CHAIN-GEAR SHIFTING-KICKSTART T20 TC250 SCRAMBLER 1965-1969 GENERAL EXPORT
TC250 OIL PLUG/FILLER PIPE-DRIVE CHAIN-GEAR SHIFTING-KICKSTART T20 TC250 SCRAMBLER 1965-1969 GENERAL EXPORT
prices are in EUR
ref
part #
description
quantity
1
2484011201
ref: 1
OIL FILLER PIPE
€ 0.00
2
2531011701
ref: 2
THIS PART ALLOWS TRANSMISSION GEARS TO BE SHIFTED FROM 2ND DIRECTLY LOW PART NEUTRAL
GEAR SHIFTING CAM COMP
€ 94.00
3
2630011201
ref: 3
KICK START LEVER ASS'Y
2630011201
€ 99.00
4
2760011210
ref: 4
CHAIN ASSEMBLY,DRIVE
€ 55.00
5
0925920002
ref: 5
OIL PLUG
€ 8.00
6
0928022001
ref: 6
O RING(D:2.4,ID:21.8)
0928022001
€ 2.00
7
0936020001
ref: 7
OIL FILLER PIPE JOINT
€ 0.00
8
0112208251
ref: 8
STRONG SMALL HEAD HEXAGON BOLT
€ 2.50
9
0832121081
ref: 9
LOCK WASHER
€ 2.00
