Buy Suzuki T Parts Online


HEAD LAMP- HEAD LAMP HOUSING-NETHERLANDS

T20 TC250 SCRAMBLER 1965-1969 GENERAL EXPORT

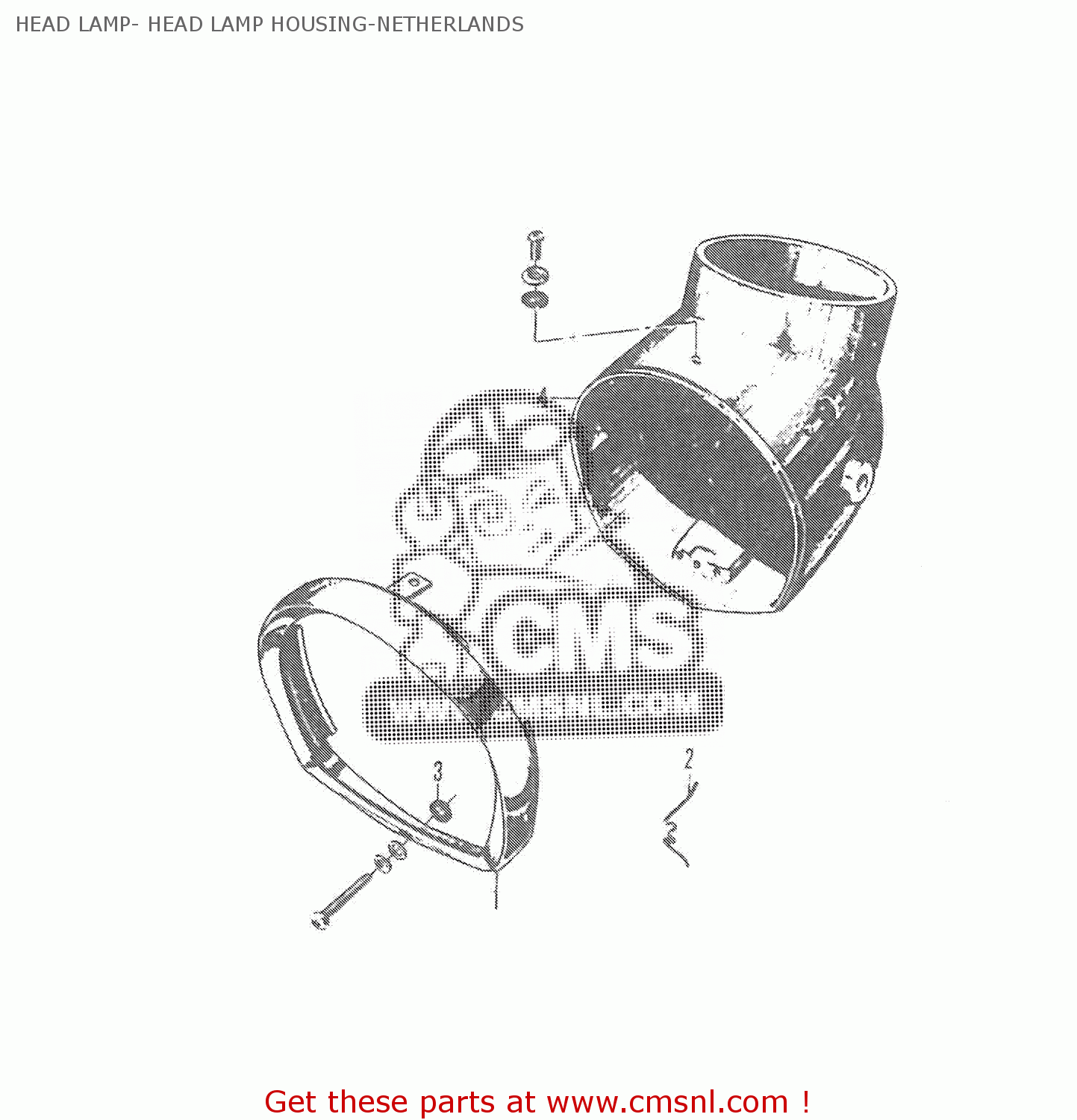

Head lamp- head lamp housing-netherlands diagram T20 TC250 SCRAMBLER 1965-1969 GENERAL EXPORT

HEAD LAMP- HEAD LAMP HOUSING-NETHERLANDS T20 TC250 SCRAMBLER 1965-1969 GENERAL EXPORT
HEAD LAMP- HEAD LAMP HOUSING-NETHERLANDS T20 TC250 SCRAMBLER 1965-1969 GENERAL EXPORT
HEAD LAMP- HEAD LAMP HOUSING-NETHERLANDS T20 TC250 SCRAMBLER 1965-1969 GENERAL EXPORT
prices are in EUR
ref
part #
description
quantity
1
3511111030
ref: 1
E25
HEAD LAMP RIM
3511111030
€ 27.50
2
3512811030
ref: 2
E25
SPRING,HEAD LA
3512811030
€ 2.50
3
3518901330
ref: 3
E25
HEAD LAMP FITTING SPACER
€ 0.00
4
5181011001019
ref: 4
E25
HEAD LAMP HOUSING
€ 0.00
4
5181011001078
ref: 4
E25
HEAD LAMP HOUSING
€ 0.00
4
5181011001079
ref: 4
E25
HEAD LAMP HOUSING
€ 0.00
