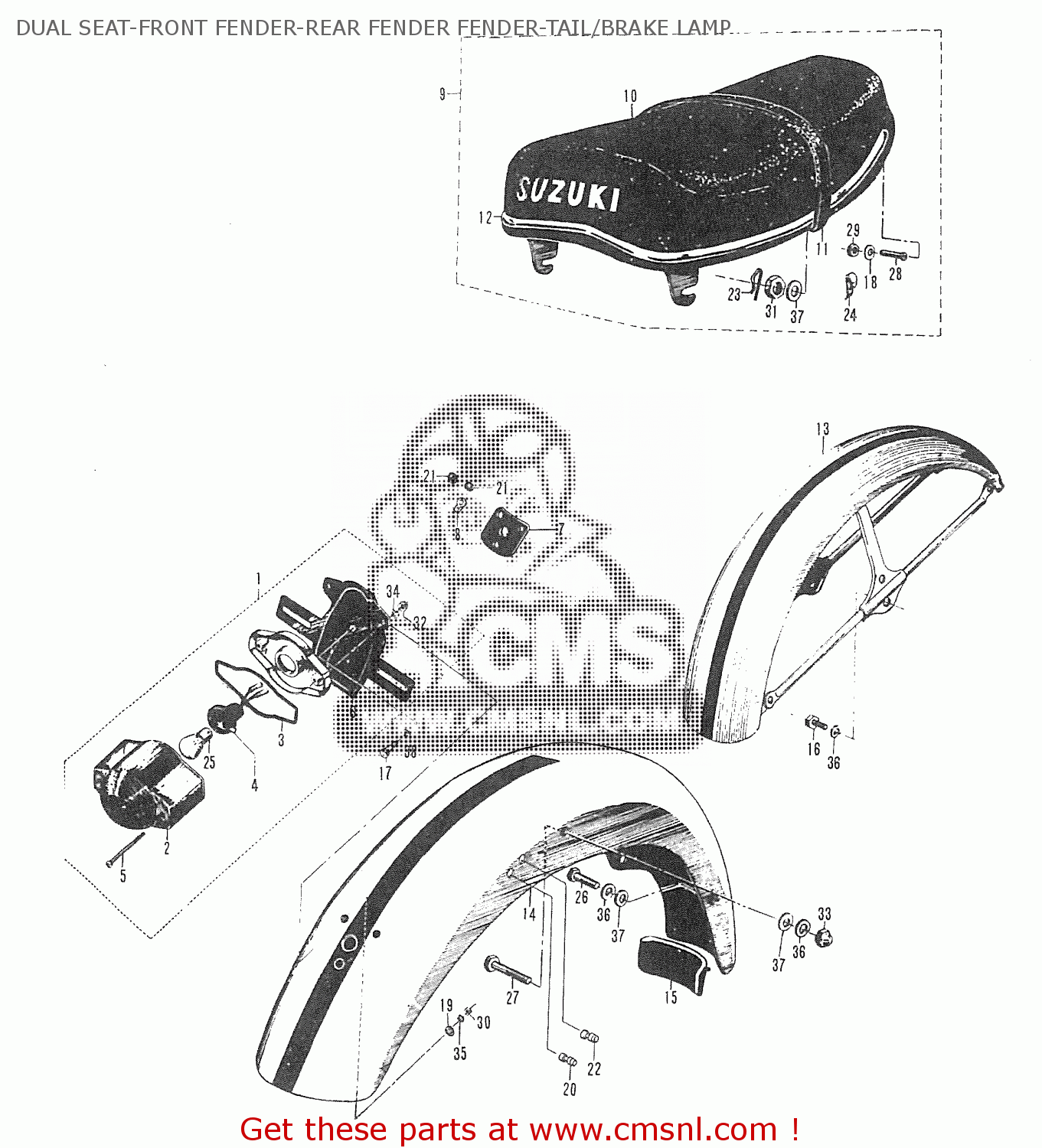

DUAL SEAT-FRONT FENDER-REAR FENDER FENDER-TAIL/BRAKE LAMP

ref

part #

description

quantity

1

3571011010
ref: 1

LAMP ASSEMBLY,REAR COMBINATION

€ 0.00

2

3571211011
ref: 2

LENS,REAR COMBINATION LAMP

€ 26.00

3

3571311010
ref: 3

GASKET,REAR COMBINATION LAMP LENS (NAS)

€ 1.50

4

3571511011
ref: 4

HOUSING,REAR COMBINATION LAMP

€ 0.00

5

3572303310
ref: 5
O.D=3(0.12) L=51 (2.01)

3X51 CROSS HEAD SCREW

€ 1.50

6

3572611012
ref: 6

BRACKET,REAR COMBINATION LAMP

€ 0.00

7

3573511000
ref: 7

TAIL/BRAKE LAMP BUFFER

€ 0.00

8

3573711000
ref: 8

TAIL/BRAKE LAMP GROUNDING PIECE

€ 0.00

9

4510011601
ref: 9

DUEL SEAT ASS'Y

€ 0.00

10

4516111000
ref: 10

DUEL SEAT LEATHER

€ 0.00

11

4518011600
ref: 11

DUAL SEAT PASSENGER STRAP ASS'Y

€ 0.00

12

4519111001
ref: 12

DUEL SEAT RIM

€ 0.00

12

4519111000
ref: 12
T20-52424

DUEL SEAT RIM

€ 0.00

13

5311011000019
ref: 13

FRONT FENDER

€ 0.00

13

5311011000078
ref: 13

FRONT FENDER

€ 0.00

13

5311011000079
ref: 13

FRONT FENDER

€ 0.00

14

6311011601019
ref: 14

FENDER,REAR

€ 0.00

14

6311011601078
ref: 14

FENDER,REAR

€ 0.00

14

6311011601079
ref: 14

FENDER,REAR

€ 0.00

15

6341111000
ref: 15

MUD GUARD,REAR FENDER

€ 9.00

16

0910008003
ref: 16

FRONT FENDER BRACE BOLT

€ 1.50

17

0911105001
ref: 17

TAIL/BRAKE LAMP FITTING BOLT

€ 4.50

17

0111106121
ref: 17
T20-41304

HEXAGON BOLT

€ 2.00

18

0916003001
ref: 18
O.D=14 (0.55) I.D=3.6 (0.14) T=0.8 (0.03)

WASHER

€ 0.00

19

0916005008
ref: 19
O.D=13 (0.51) I.D=5.2 (0.20) T=1.0 (0.04)

WASHER

€ 2.00

20

0925005001
ref: 20
T20-49661

PLUG

€ 1.00

21

0932006004
ref: 21
O.D=13 (0.51) I.D=6 (0.24) T=3 (0.12)

TAIL/BRAKE LAMP RUBBER WASHER

€ 0.00

22

0932110004
ref: 22
O.D=16 (0.63)
T20-49661

CUSHION

€ 4.00

23

0938506001
ref: 23

CLIP

€ 11.00

24

0941000004
ref: 24

DUAL SEAT LEATHER FITTING CLIP

€ 2.50

25

0947112002
ref: 25
12V 32/4CP

BULB

€ 5.50

26

0112108121
ref: 26

SMALL HEAD HEXAGON BOLT

€ 2.50

27

0112108451
ref: 27

SMALL HEXAGON BOLT

€ 2.50

28

0214103201
ref: 28

CROSS HEAD SCREW

€ 1.00

29

0831111031
ref: 29

HEXAGON NUT

€ 1.00

30

0831111051
ref: 30

HEXAGON NUT

€ 1.00

30

0831111061
ref: 30
T20-41304

HEXAGON NUT

€ 2.50

31

0831131081
ref: 31

HEXAGON NUT

€ 2.00

32

0831311042
ref: 32

CROWN NUT

€ 1.00

33

0831311082
ref: 33

CROWN NUT

€ 2.50

34

0832121041
ref: 34

LOCK WASHER

€ 2.00

35

0832121051
ref: 35

LOCK WASHER

€ 2.00

35

0832121061
ref: 35
T20-41304

LOCK WASHER

€ 2.50

36

0832121081
ref: 36

LOCK WASHER

€ 2.00

37

0832211081
ref: 37

SMALL FLAT WASHER

€ 2.00
