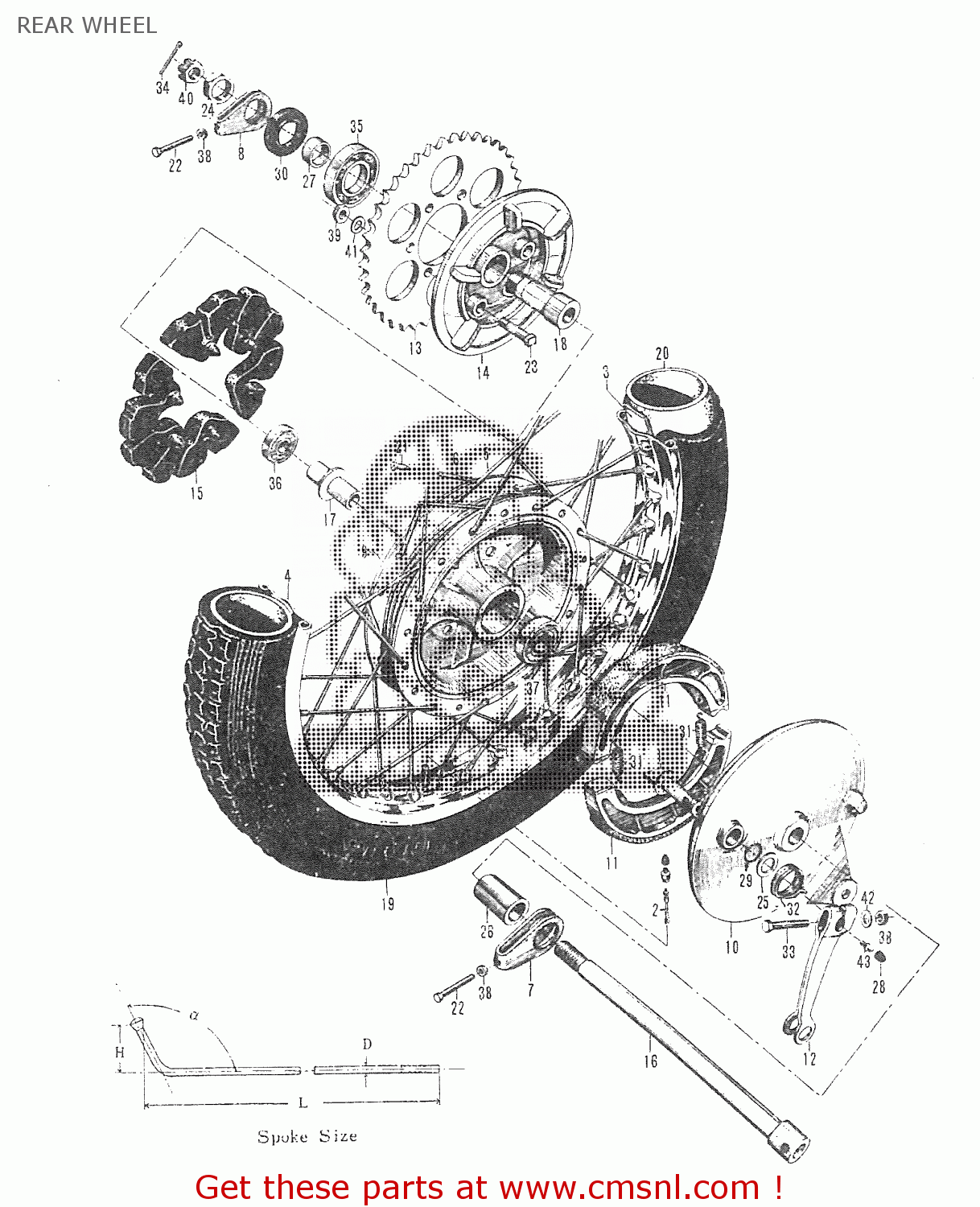

REAR WHEEL

ref

part #

description

quantity

0

6000011821
ref: 0
INCLUDES REF.NO. 1,4-6,9-12,14-18,21-24-38,40,42,43

REAR WHEEL ASS'Y

€ 0.00

0

6400011811
ref: 0
INCLUDES REF.NO. 1,4-6,14-18,24-38,40,42,43

REAR HUB ASS'Y

€ 0.00

1

5444011002
ref: 1

CAM,FRONT BRAKE

€ 43.00

2

5525001000
ref: 2

VALVE,INNER TUBE

€ 0.00

3

5526111010
ref: 3

PROTECTOR,INNER TUBE

€ 3.50

4

5531111020
ref: 4

RIM,FRONT WHEEL

€ 35.00

4

5532011819
ref: 4

SPOKE SET,FRONT

€ 65.00

5

5532111020
ref: 5

SPOKE,WHEEL

€ 2.50

6

5532211020
ref: 6

SPOKE,WHEEL

€ 1.00

7

6141011600
ref: 7
CHROME-PLATED

ADJUSTER,CHAIN

€ 4.50

8

6142011600
ref: 8
CHROME-PLATED

ADJUSTER,CHAIN

€ 15.50

9

6411011000
ref: 9

DRUM,REAR HUB

€ 156.50

10

6421011000
ref: 10

PANEL,REAR HUB

€ 83.50

11

6441011000
ref: 11

SHOE SET,BRAKE (MCA)

€ 101.00

12

6445111000
ref: 12

LEVER,REAR BRAKE CAM

€ 21.00

13

6451111000
ref: 13
STANDARD

SPROCKET,REAR

€ 29.50

13

6451111700
ref: 13
OPTIONAL

SPROCKET,REAR

€ 63.00

13

6451111710
ref: 13
OPTIONAL

SPROCKET,REAR

€ 63.00

13

6451111720
ref: 13
OPTIONAL

SPROCKET,REAR

€ 29.50

13

6451111730
ref: 13
OPTIONAL

SPROCKET,REAR

€ 26.00

14

6461111000
ref: 14

DRUM,REAR SPROCKET MOUNT

€ 44.00

15

6465111000
ref: 15

CUSHION,REAR DRUM

€ 19.50

16

6471011000
ref: 16

AXLE,REAR

€ 36.00

17

6473011000
ref: 17

SPACER

€ 21.00

18

6476111000
ref: 18

SHAFT,SPROCKET MOUNTING

€ 28.50

19

6510011010
ref: 19

TIRE

€ 0.00

20

6520011600
ref: 20
INCLUDES REF.NO. 2

TUBE ASSEMBLY,WHEEL,INNER

€ 24.50

21

6532503020
ref: 21

NIPPLE,SPOKE

€ 0.00

22

0910006002
ref: 22

BOLT

€ 1.50

23

0911910002
ref: 23

BOLT

€ 3.50

24

0914024002
ref: 24

NUT

€ 8.50

25

0916015001
ref: 25

WASHER (15X24X1.6)

€ 2.50

26

0918017005
ref: 26

REAR AXLE SPACER

€ 0.00

27

0918025001
ref: 27

SPROCKET MOUNTING DRUM SHAFT SPACER

€ 0.00

28

0925104001
ref: 28

GREASE NIPPLE CAP

€ 3.00

29

0928015001
ref: 29

O-RING,BOSS

€ 2.00

30

0928330001
ref: 30

OIL SEAL

€ 20.00

31

0944310001
ref: 31

SPRING

€ 3.50

32

0944830001
ref: 32

SPRING

€ 16.00

33

0111106401
ref: 33

HEXAGON NUT

€ 2.00

34

0411140351
ref: 34

COTTER PIN

€ 2.00

35

0811362050
ref: 35

BEARING

€ 20.50

36

0814362030
ref: 36
SEALED BEARING

BEARING

€ 18.50

37

0814363030
ref: 37
SEALED BEARING

BALL BEARING

€ 23.00

38

0831111061
ref: 38

HEXAGON NUT

€ 2.50

39

0831231101
ref: 39

SMALL HEXAGON NUT

€ 2.50

40

0831431162
ref: 40

CASTLE NUT

€ 0.00

41

0832121101
ref: 41

LOCK WASHER

€ 2.00

42

0832221061
ref: 42

FLAT WASHER

€ 2.00

43

0835111000
ref: 43

GREASE NIPPLE

€ 32.00

all assemblies
