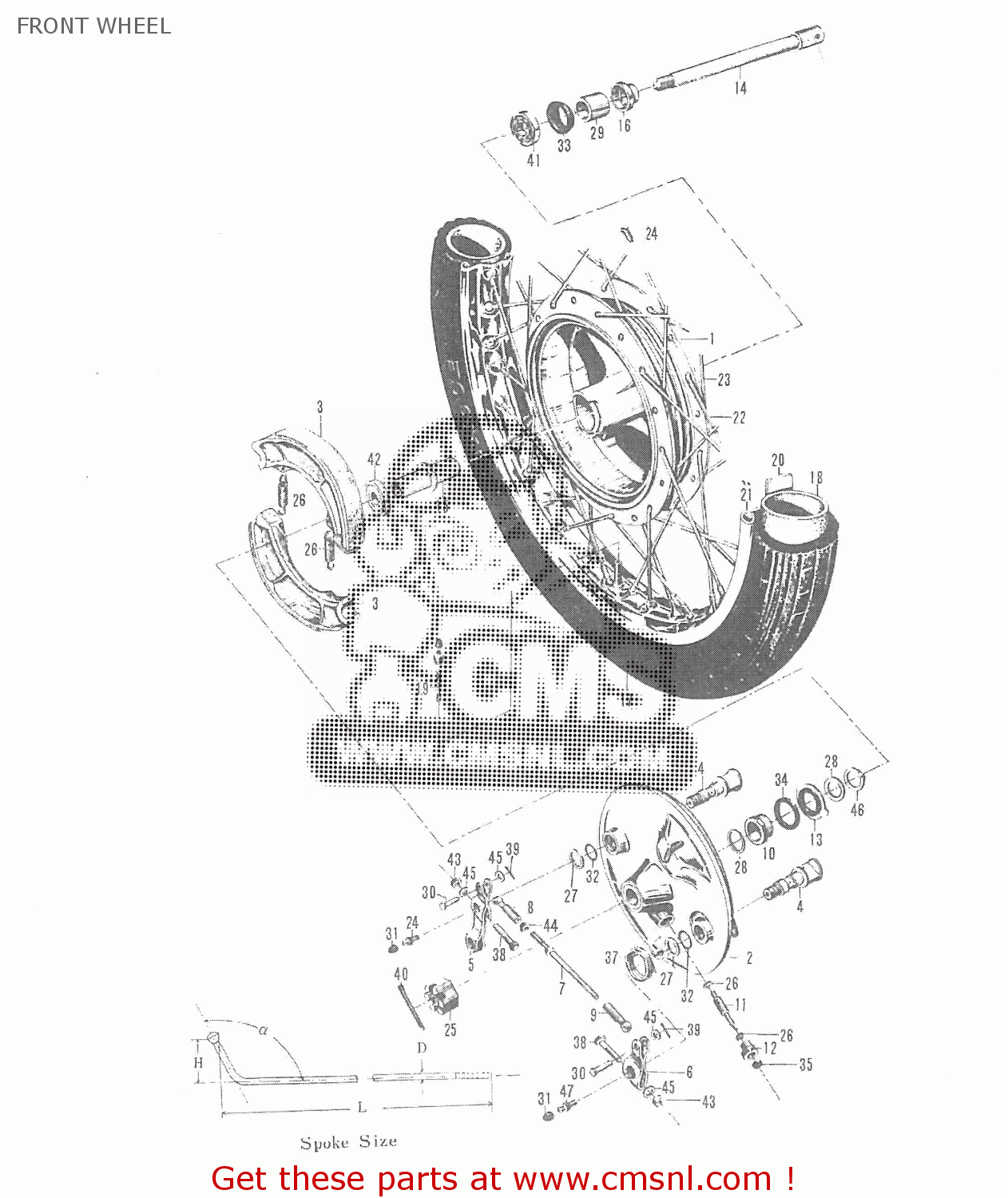

FRONT WHEEL

ref

part #

description

quantity

0

5000011818
ref: 0
INCLUDES REF.NO. 1-16, 21-47

FRONT WHEEL ASS'Y

€ 0.00

0

5410011000
ref: 0
INCLUDES REF.NO. 1-16, 25-47

FRONT HUB ASS'Y

€ 0.00

1

5411011000
ref: 1

HUB,FRONT

€ 67.50

2

5421011000
ref: 2

PANEL,FRONT HUB

€ 82.50

3

5441011000
ref: 3

SHOE,BRAKE

€ 25.50

4

5444011002
ref: 4

CAM,FRONT BRAKE

€ 43.00

5

5445011000
ref: 5
CHROME-PLATED

LEVER,FRONT BRAKE CAM

€ 6.50

6

5446111000
ref: 6
CHROME-PLATED

LEVER,FRONT BRAKE CAM

€ 5.00

7

5447011000
ref: 7
CHROME-PLATED

BRAKE CAM LEVER CONNECTING ROD

€ 40.00

8

5448111000
ref: 8
CHROME-PLATED

BRAKE CAM LEVER CONNECTING ROD FRONT END PIECE

€ 9.50

9

5448211000
ref: 9
CHROME-PLATED

BRAKE CAM LEVER CONNECTING ROD REAR END PIECE

€ 9.50

10

5461111000
ref: 10
N.T=25

GEAR,SPEEDOMETER

€ 52.00

11

5462111000
ref: 11
N.T=9

PINION,SPEEDOMETER

€ 11.50

12

5463211020
ref: 12

BUSHING,SPEEDOMETER PINION

€ 6.50

13

5466011030
ref: 13

DRIVER,SPEEDOMETER GEAR

€ 31.00

14

5471111000
ref: 14
O.D=14(0.55) L=195 (7.68)

FRONT AXLE

€ 0.00

15

5473011000
ref: 15
L=65 (2.56)

SPACER,FRONT HUB BEARING

€ 36.00

16

5473011000
ref: 16

SPACER,FRONT HUB BEARING

€ 36.00

17

5510011010
ref: 17

TIRE,FRONT

€ 201.00

18

5520011600
ref: 18
INCLUDES REF.NO. 19

TUBE,INNER

€ 24.50

19

5525001000
ref: 19

VALVE,INNER TUBE

€ 0.00

20

5526111010
ref: 20

PROTECTOR,INNER TUBE

€ 3.50

21

5531111020
ref: 21

RIM,FRONT WHEEL

€ 35.00

21

5532011819
ref: 21
INCLUDES REF.NO. 22-24

SPOKE SET,FRONT

€ 65.00

22

5532111020
ref: 22

SPOKE,WHEEL

€ 2.50

23

5532211020
ref: 23

SPOKE,WHEEL

€ 1.00

24

6532503020
ref: 24

NIPPLE,SPOKE

€ 0.00

25

0914114001
ref: 25

NUT

€ 4.50

26

0916005001
ref: 26

WASHER (5.1X9X0.4)

€ 2.00

27

0916015001
ref: 27

WASHER (15X24X1.6)

€ 2.50

28

0916022001
ref: 28

WASHER(22.5X27X1)

€ 2.00

29

0918015001
ref: 29

SPACER

€ 6.00

30

0920006001
ref: 30

PIN

€ 3.00

31

0925104001
ref: 31

GREASE NIPPLE CAP

€ 3.00

32

0928015001
ref: 32

O-RING,BOSS

€ 2.00

33

0928422001
ref: 33

OIL SEAL

€ 4.00

34

0928526001
ref: 34

OIL SEAL

€ 22.00

35

0928906001
ref: 35

SEAL,OIL(6X10X3)

€ 4.00

36

0944310001
ref: 36

SPRING

€ 3.50

37

0944830001
ref: 37

SPRING

€ 16.00

38

0111106301
ref: 38

HEXAGON BOLT

€ 2.50

39

0411112101
ref: 39

COTTER PIN

€ 2.00

40

0411130351
ref: 40

COTTER PIN

€ 1.50

41

0811360020
ref: 41

BEARING

€ 14.00

42

0814362020
ref: 42
SEALED BEARING

BEARING

€ 12.50

43

0831111061
ref: 43

HEXAGON NUT

€ 2.50

44

0831121051
ref: 44

HEXAGON NUT

€ 1.00

45

0832221061
ref: 45

FLAT WASHER

€ 2.00

46

0833111220
ref: 46

CIRCLIP

€ 2.00

47

0835111000
ref: 47

GREASE NIPPLE

€ 32.00
