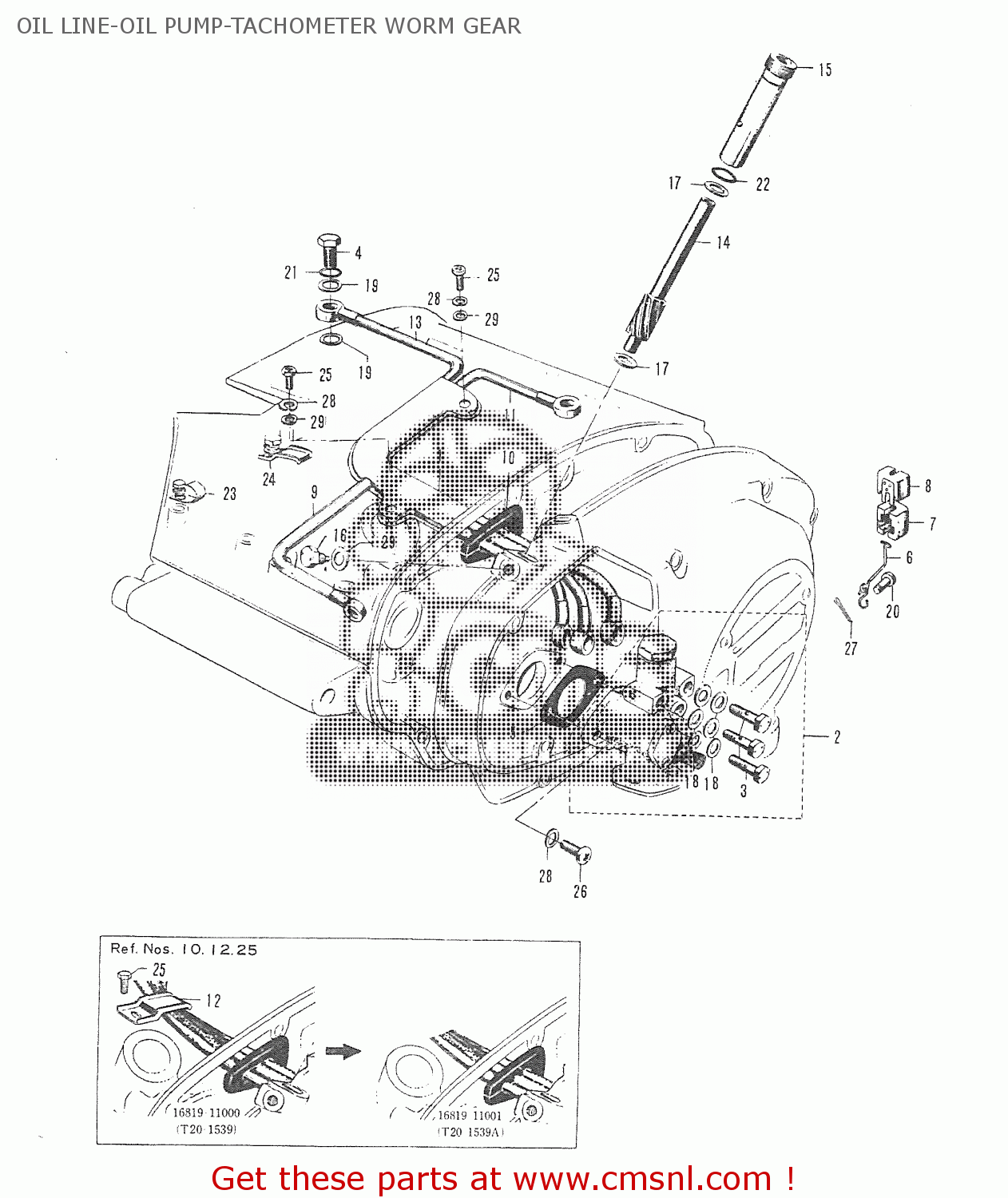

OIL LINE-OIL PUMP-TACHOMETER WORM GEAR

ref

part #

description

quantity

1

1144111030
ref: 1
T20-21413

OIL LINE COVER

€ 0.00

2

1600011816
ref: 2

OIL PUMP ASS'Y

€ 64.00

3

1629311010
ref: 3

OIL PUMP UNION BOLT

€ 5.00

4

1671011011
ref: 4

VALVE,CHECK

€ 16.50

5

1673111000
ref: 5

GASKET,OIL PUMP (MCA)

€ 1.50

6

1675511010
ref: 6

OIL PUMP LEVER CHAIN

€ 1.50

7

1675611030
ref: 7

OIL PUMP LEVER CHAIN CONNECTOR

€ 1.50

8

1675711030
ref: 8

OIL PUMP LEVER CHAIN CONNECTOR (TC250TC250)

€ 3.50

9

1681011031
ref: 9

OIL TANK SIDE OIL LINE

€ 15.50

10

1681911001
ref: 10

OIL LINE BUSHING

€ 1.50

10

1681911000
ref: 10
T20-21412

OIL LINE BUSHING

€ 1.50

11

1682011031
ref: 11
O.D=6 (0.24) I.D=4 (0.16)

RIGHT CYLINDER SIDE OIL LINE

€ 0.00

12

1682611010
ref: 12
T20-21412

OIL LINE CLIP BAND

€ 0.00

13

1684011030
ref: 13
O.D=6 (0.24) I.D=4 (0.16)

LEFT CYLINDER SIDE OIL LINE

€ 12.50

14

2643111000
ref: 14
N.T=9

TACHOMETER WORM GEAR

€ 6.00

15

2644111000
ref: 15

TACHOMETER WORM GEAR BUSHING

€ 5.50

16

0913506002
ref: 16
O.D=6 (0.24) L=10 (0.39)

BOLT

€ 2.50

17

0916008003
ref: 17
O.D=13.7 (0.54) I.D=8 (0.31) T=1.0 (0.04)

WASHER(8X13.7X1)

€ 2.00

18

0916806002
ref: 18
O.D=12 (0.47) I.D=6.2 (0.24) T=1.5 (0.05)

GASKET (NAS)

€ 1.50

19

0916810005
ref: 19
O.D=16 (0.63) I.D=10 (0.39) W=3.0 (0.12)

GASKET(10X16X3) (NAS)

€ 6.00

20

0920004001
ref: 20

OIL PUMP LEVER PIN

€ 3.00

21

0928008003
ref: 21
O.D=10.2 (0.40) I.D=7.6 (0.30) T=1.3 (0.05)

O RING(D:1.3,ID:7.6)

€ 1.00

22

0928010001
ref: 22
O.D=12 (0.47) I.D=10 (0.39) T=1.5 (0.06)

O RING(D:1.3,ID:9.6)

€ 2.00

23

0940300008
ref: 23

CLAMP

€ 3.50

24

0940300023
ref: 24
T20-21412

OIL LINE CLIP BAND

€ 2.00

24

0940300023
ref: 24

OIL LINE CLIP BAND

€ 2.00

25

0211106081
ref: 25

CROSS HEAD SCREW

€ 2.00

25

0111106081
ref: 25
T20-21412

HEXAGON BOLT

€ 2.00

26

0211106121
ref: 26
2021413

CROSS HEAD SCREW

€ 2.00

27

0411116121
ref: 27

COTTER PIN

€ 2.00

28

0832121061
ref: 28

LOCK WASHER

€ 2.50

29

0832211061
ref: 29

SMALL FLAT WASHER

€ 2.00
