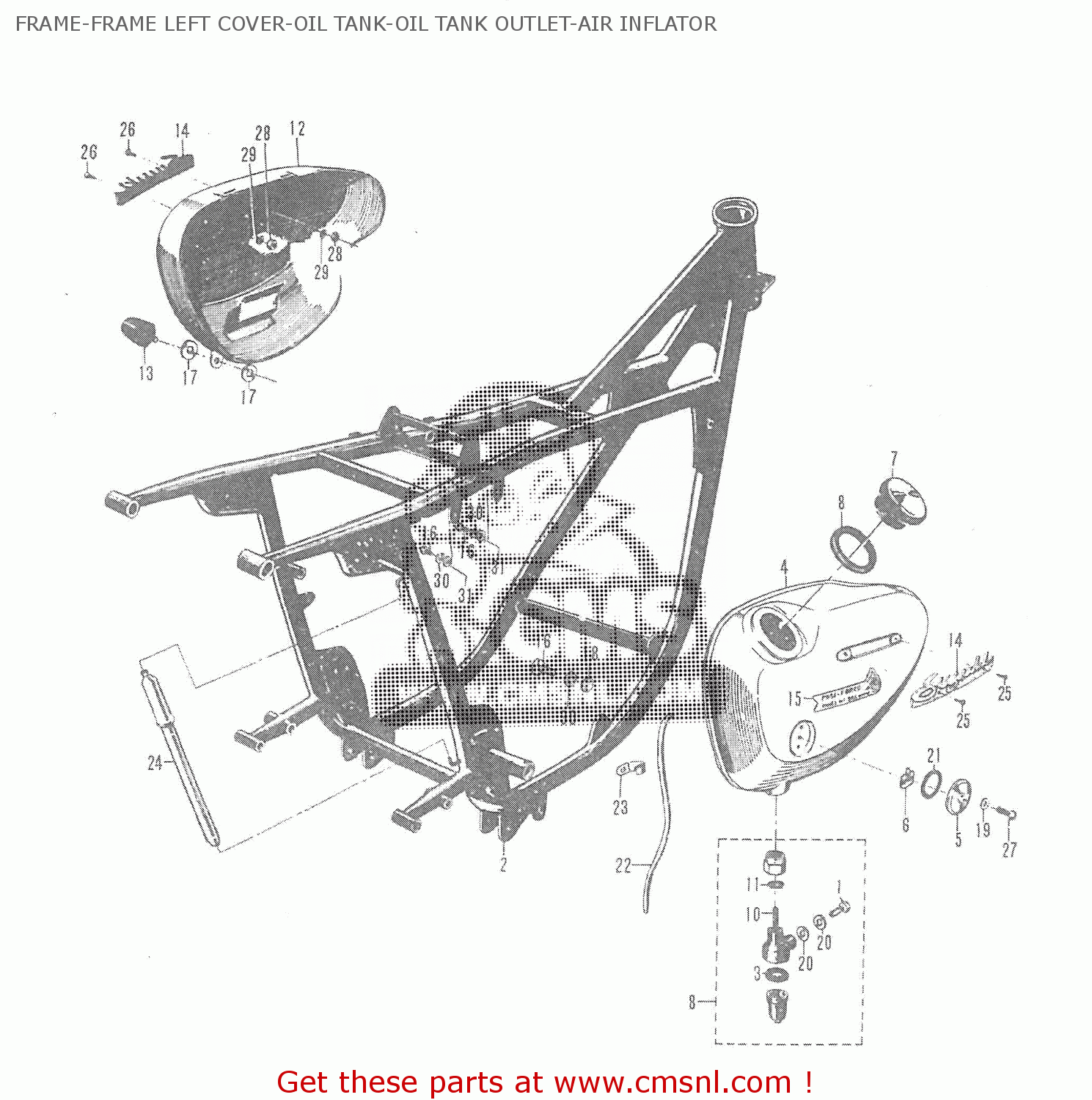

FRAME-FRAME LEFT COVER-OIL TANK-OIL TANK OUTLET-AIR INFLATOR

ref

part #

description

quantity

1

1629311010
ref: 1

OIL PUMP UNION BOLT

€ 5.00

2

4110011001019
ref: 2

FRAME

€ 0.00

3

4434602030
ref: 3
O.D=19 (0.75) I.D=13.5 (0.53) T=1.5 (0.06)

GASKET,FUEL COCK STRAINER (NAS)

€ 2.50

4

4461011001019
ref: 4

OIL TANK

€ 0.00

4

4461011001078
ref: 4

OIL TANK

€ 0.00

4

4461011001079
ref: 4

OIL TANK

€ 0.00

5

4464111000
ref: 5

LENS,INSPECTION

€ 1.50

6

4464211000
ref: 6

PLATE,OIL LEVEL INSPECTION

€ 8.50

7

4465111040
ref: 7

CAP,OIL TANK

€ 14.00

7

4465011031
ref: 7
T20-14968

OIL TANK CAP

€ 14.00

8

4466111000
ref: 8
O.D=46 (1.81) I.D=35 (1.38) T=3.5 (0.14)

GASKET,OIL TANK FILLER CAP (NAS)

€ 4.00

9

4470011827
ref: 9

OUTLET ASSY.OIL

€ 9.50

10

4472011030
ref: 10

UNIT,OIL FILTER

€ 5.50

11

4473311030
ref: 11
O.D=13.5 (0.53) I.D=8.2 (0.32) T=2.5 (0.10)

GASKET,OIL OUTLET JOINT (NAS)

€ 2.00

12

4721011000019
ref: 12

FRAME LEFT COVER

€ 0.00

12

4721011000078
ref: 12

FRAME LEFT COVER

€ 0.00

12

4721011000079
ref: 12

FRAME LEFT COVER

€ 0.00

13

4723011000
ref: 13

FRAME COVER KNOB

€ 3.00

14

6813111001
ref: 14

EMBLEM

€ 6.50

15

6817111601
ref: 15

EMBLEM

€ 0.00

16

0910006026
ref: 16
O.D=6 (0.24) L=14 (0.55)

BOLT

€ 2.50

17

0915206001
ref: 17

NUT

€ 1.50

18

0916006006
ref: 18

WASHER

€ 2.00

19

0916805001
ref: 19
O.D=9.5 (0.37) I.D=5.0 (0.20) T=1.0 (0.04)

GASKET(5X9.5X1) (NAS)

€ 2.00

20

0916806002
ref: 20
O.D=12 (0.47) I.D=6.2 (0.24) T=1.5 (0.06)

GASKET (NAS)

€ 1.50

21

0928023001
ref: 21
O.D=29 (1.14) I.D=23 (0.91) T=3 (0.12)

O RING(D:3,ID:23)

€ 2.00

22

0934405002
ref: 22
O.D=7 (0.28) I.D=5.0 (0.20) L=200(7.87)

OIL BREATHER LINE

€ 10.00

23

0940300004
ref: 23

CLAMP

€ 0.00

24

0982100001
ref: 24

AIR INFLATOR

€ 66.00

25

0211103041
ref: 25

CROSS HEAD SCREW

€ 0.00

26

0211103081
ref: 26

CROSS HEAD SCREW

€ 1.00

27

0211105162
ref: 27

CROSS HEAD SCREW

€ 0.00

28

0831111031
ref: 28

HEXAGON NUT

€ 1.00

29

0832121031
ref: 29

LOCK WASHER

€ 1.50

30

0832121061
ref: 30

LOCK WASHER

€ 2.50

31

0832221061
ref: 31

FLAT WASHER

€ 2.00
