Buy Suzuki T Parts Online


FRONT/REAR TURN SIGNAL-SIGNAL RELAY AUSTRALIA

T20 TC250 SCRAMBLER 1965-1969 GENERAL EXPORT

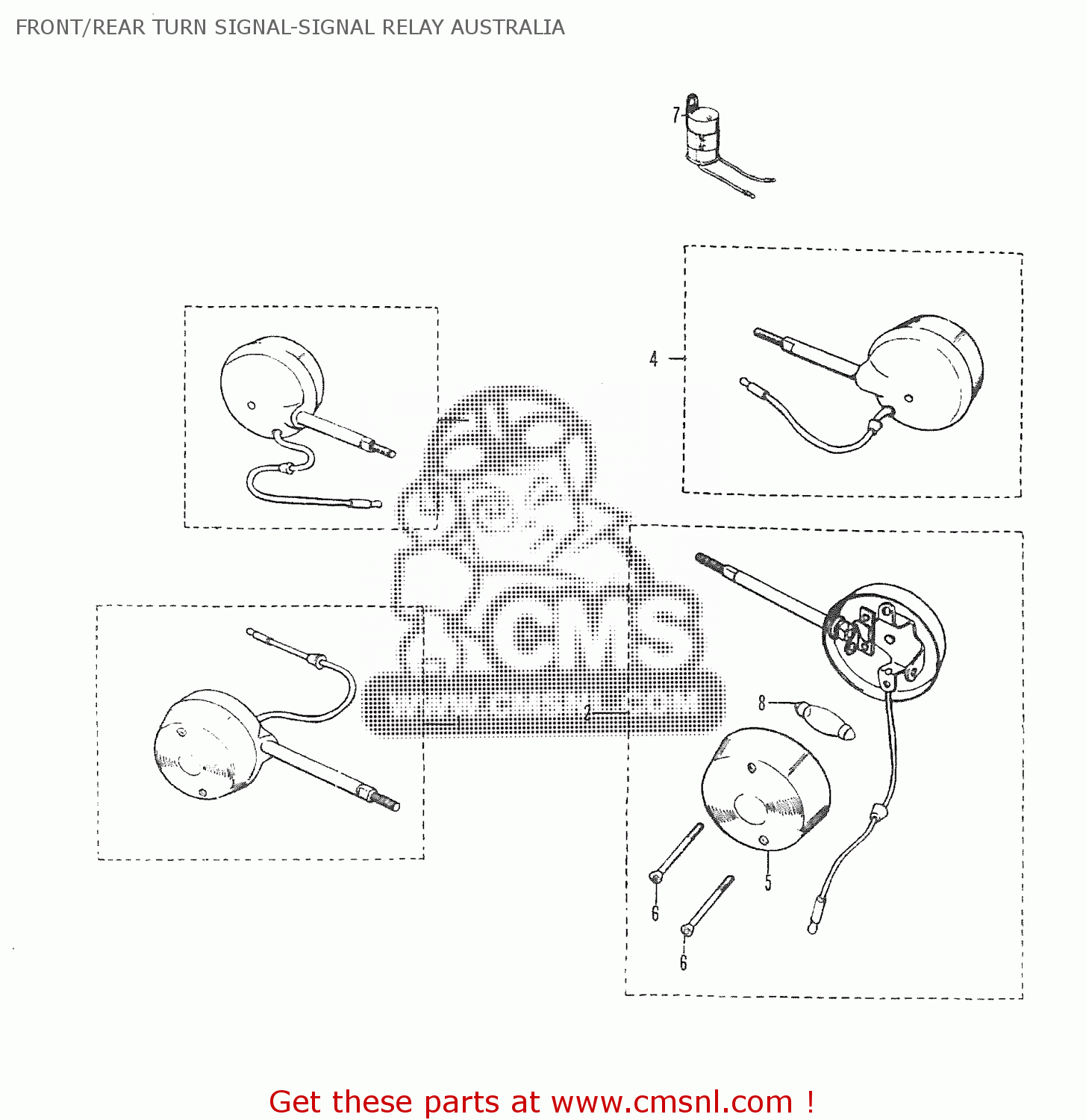

Front/rear turn signal-signal relay australia diagram T20 TC250 SCRAMBLER 1965-1969 GENERAL EXPORT

FRONT/REAR TURN SIGNAL-SIGNAL RELAY AUSTRALIA T20 TC250 SCRAMBLER 1965-1969 GENERAL EXPORT
FRONT/REAR TURN SIGNAL-SIGNAL RELAY AUSTRALIA T20 TC250 SCRAMBLER 1965-1969 GENERAL EXPORT
FRONT/REAR TURN SIGNAL-SIGNAL RELAY AUSTRALIA T20 TC250 SCRAMBLER 1965-1969 GENERAL EXPORT
prices are in EUR
ref
part #
description
quantity
1
3560111660
ref: 1
E24
RIGHT FRONT TURN SIGNAL ASS'Y
€ 0.00
2
3560211660
ref: 2
E24
LEFT FRONT TURN SIGNAL ASS'Y
€ 0.00
3
3560311660
ref: 3
E24
RIGHT REAR TURN SIGNAL ASS'Y
€ 0.00
4
3560411660
ref: 4
E24
LEFT REAR TURN SIGNAL ASS'Y
€ 0.00
5
3561203011
ref: 5
E24
TURN SIGNAL LENS
€ 8.50
6
3562303010
ref: 6
E24
3X28 CROSS HEAD SCREW
3562303010
€ 2.00
7
3861008210
ref: 7
E24
TURN SIGNAL RELAY
€ 46.00
8
0947112011
ref: 8
E24
BRAKE LAMP BULB
0947112011
€ 1.50
