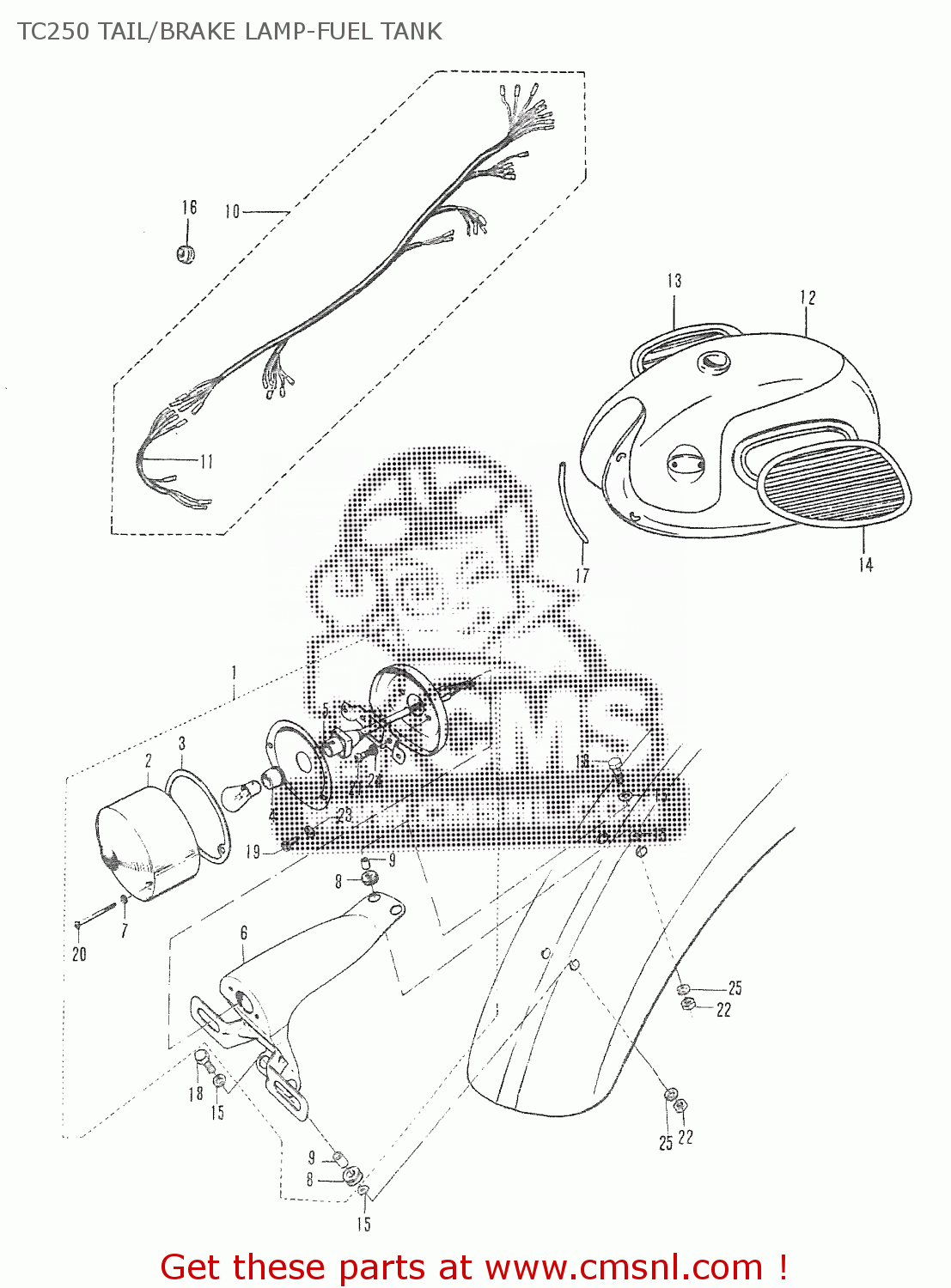

TC250 TAIL/BRAKE LAMP-FUEL TANK

ref

part #

description

quantity

1

3571015010
ref: 1
T20-52425

TAIL/BRAKE LAMP ASS'Y

€ 42.00

2

3571215011
ref: 2
T20-52425

LENS,REAR COMBINATION LAMP

€ 37.50

3

3571315010
ref: 3
T20-52425

GASKET,REAR COMBINATION LAMP LENS (NAS)

€ 3.50

4

3571615010
ref: 4
T20-52425

PLATE,REAR COMBINATION LAMP

€ 1.50

5

3571815011
ref: 5
T20-52425

SOCKET & CORD ASSEMBLY

€ 4.50

6

3572615010
ref: 6
T20-52425

TAIL/BRAKE LAMP BRACKET

€ 0.00

7

3572703010
ref: 7
T20-52425

WASHER,REAR COMBINATION LAMP

€ 1.50

8

3576515010
ref: 8
T20-52425

CUSHION

€ 9.00

9

3576615010
ref: 9
T20-52425

SPACER,REAR COMBINATION LAMP

€ 11.50

10

3660010816
ref: 10
T20-52425

MAIN WIRING HARNESS ASS'Y

€ 53.50

11

3662010100
ref: 11
T20-52425

TAIL/BRAKE LAMP WIRING HARNESS

€ 0.00

12

4411011200019
ref: 12
T20-52425

FUEL TANK

€ 730.00

12

4411011200078
ref: 12
T20-52425

TANK ASSEMBLY,FUEL

€ 730.00

12

4411011200079
ref: 12
T20-52425

FUEL TANK

€ 730.00

13

4425110100
ref: 13
T20-52425

RIGHT KNEE GRIP

€ 0.00

14

4425210100
ref: 14
T20-52425

LEFT KNEE GRIP

€ 0.00

15

0916006020
ref: 15
T20-52425

WASHER

€ 2.00

16

0930804001
ref: 16
T20-52425

GROMMET

€ 1.50

17

0934405004
ref: 17
T20-52425

HOSE

€ 1.50

18

0111106161
ref: 18
T20-52425

HEXAGON BOLT

€ 3.00

19

0211104081
ref: 19
T20-52425

CROSS HEAD SCREW

€ 0.00

20

0211104551
ref: 20
T20-52425

CROSS HEAD SCREW

€ 1.00

21

0211105121
ref: 21
T20-52425

CROSS HEAD SCREW

€ 0.00

22

0831111061
ref: 22
T20-52425

HEXAGON NUT

€ 2.50

23

0832121041
ref: 23
T20-52425

LOCK WASHER

€ 2.00

24

0832121051
ref: 24
T20-52425

LOCK WASHER

€ 2.00

25

0832121061
ref: 25
T20-52425

LOCK WASHER

€ 2.50

all assemblies
