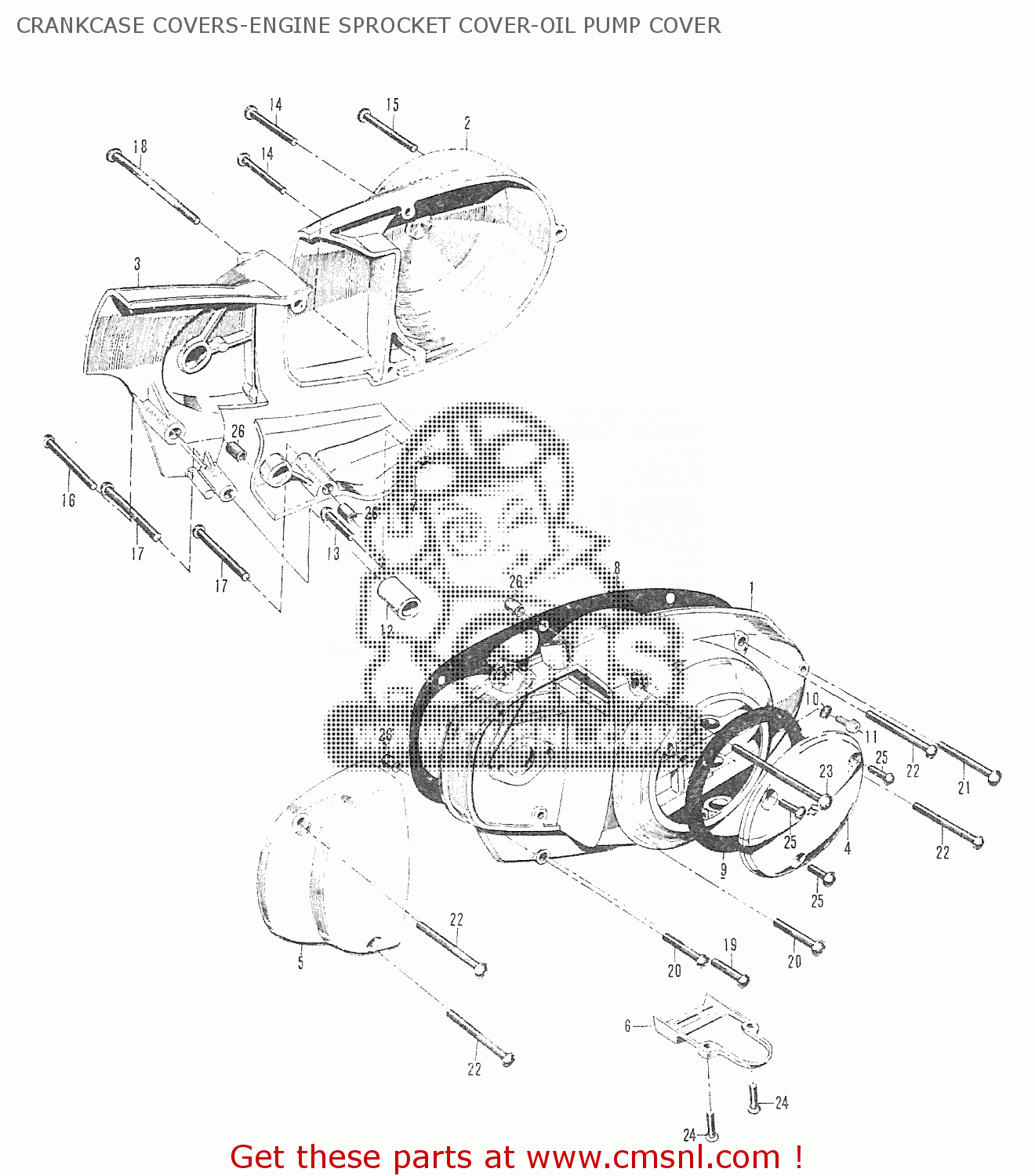

CRANKCASE COVERS-ENGINE SPROCKET COVER-OIL PUMP COVER

ref

part #

description

quantity

1

1134211815
ref: 1
INCLUDES 09304-10003 (3PCS)

CRANKCASE RIGHT COVER

€ 121.00

2

1135111100
ref: 2

COVER,MAGNETO

€ 151.00

3

1136111100
ref: 3

ENGINE SPROCKET COVER

€ 48.00

4

1138711000
ref: 4

CLUTCH RELEASE ADJUSTING CAP

€ 20.50

5

1141111100
ref: 5

OIL PUMP COVER

€ 0.00

6

1145111000
ref: 6

COVER, CLUTCH RELEASE

€ 31.50

7

1146111000
ref: 7

GEAR SHIFTING SHAFT HOLDER

€ 0.00

8

1148211000
ref: 8

CRANKEASE RIGHT COVER GASKET

€ 6.50

9

1149511000
ref: 9
O.D=110 (4.33) I.D=78 (3.07) T=0.45 (0.02)

CLUTCH RELEASE ADJUSTING CAP G (TC250; I.D.=78(3.07). O.D.=110(4

€ 6.00

10

0916806001
ref: 10
O.D=11 (0.43) I.D=6.2 (0.24) T=1.0 (0.04)

GASKET(6.2X11X1) (NAS)

€ 1.50

11

0924706001
ref: 11
O.D=6 SCREW L=12 (0.47)

PLUG

€ 1.50

12

0932016001
ref: 12
O.D=20.5 (0.81) I.D=16.5 (0.65) W=20 (0.79)

ENGINE SPROCKET COVER CHAIN BUFFER

€ 4.00

13

0211106301
ref: 13

CROSS HEAD SCREW

€ 2.50

14

0211106351
ref: 14

CROSS HEAD SCREW

€ 2.50

15

0211106401
ref: 15

CROSS HEAD SCREW

€ 2.00

16

0211106451
ref: 16

CROSS HEAD SCREW

€ 2.00

17

0211106501
ref: 17

CROSS HEAD SCREW

€ 2.50

18

0211106801
ref: 18

CROSS HEAD SCREW

€ 3.00

19

0211206201
ref: 19

STRONG CROSS HEAD SCREW

€ 2.00

20

0211206301
ref: 20

STRONG CROSS HEAD SCREW

€ 2.50

21

0211206451
ref: 21

STRONG CROSS HEAD SCREW

€ 2.00

22

0211206501
ref: 22

STRONG CROSS HEAD SCREW

€ 2.50

23

0211206701
ref: 23

STRONG CROSS HEAD SCREW

€ 3.00

24

0212106121
ref: 24

CROSS HEAD SCREW

€ 3.00

25

0213106121
ref: 25

CROSS HEAD SCREW

€ 3.00

26

0421109120
ref: 26

DOWEL PIN

€ 2.00
