CAM SHAFT / VALVE

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

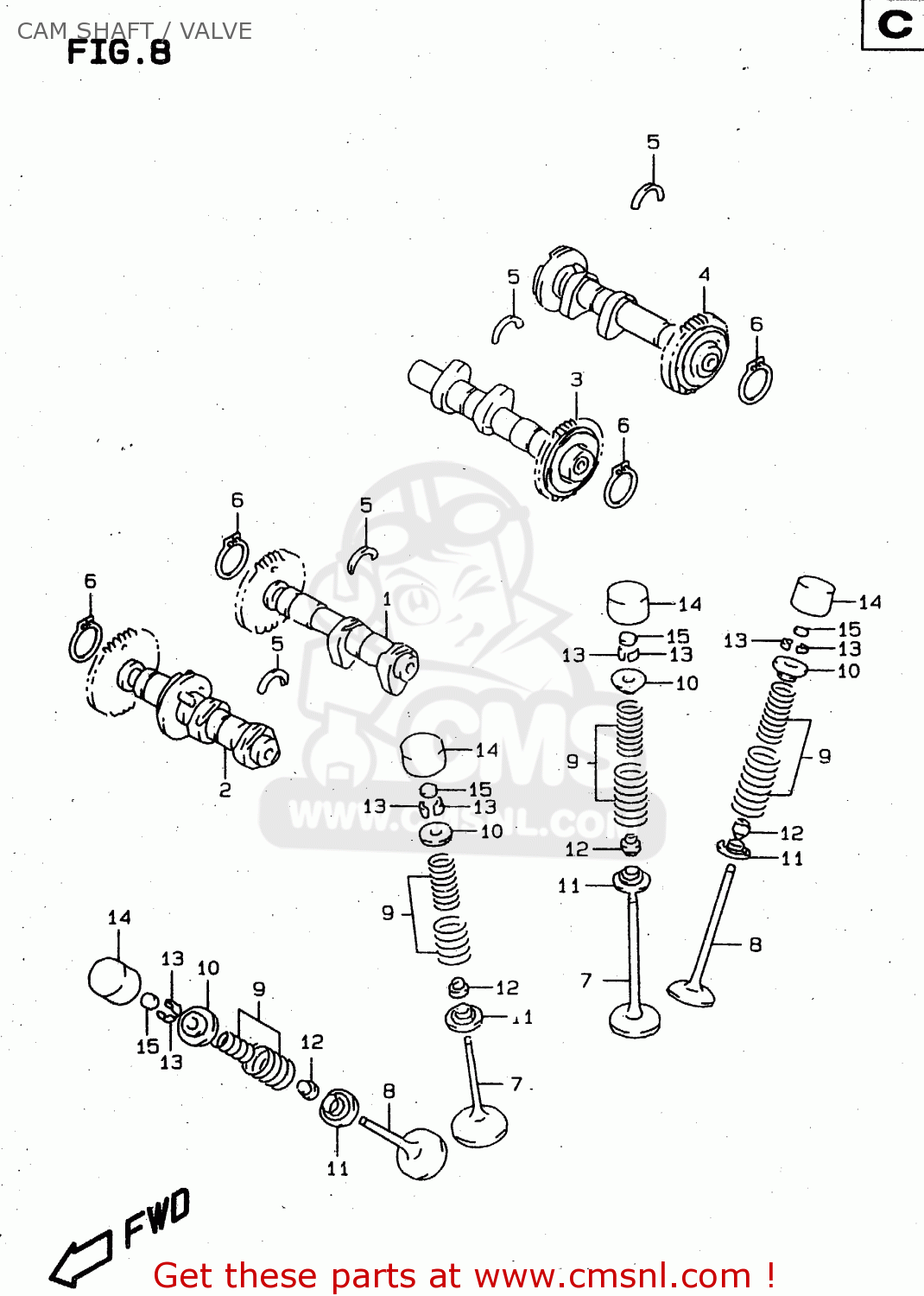

Cam shaft / valve diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

CAM SHAFT / VALVE TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)
CAM SHAFT / VALVE TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)
CAM SHAFT / VALVE TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
1270102F00
ref: 1
MODEL V
CAMSHAFT ASSEMBLY,INTAKE,FRONT
€ 346.00
1
1270102F10
ref: 1
MODEL V E4
CAMSHAFT ASSEMBLY,INTAKE,FRONT
€ 346.00
1
1270102F40
ref: 1
MODEL W/X
CAMSHAFT ASSEMBLY,INTAKE,FRONT
€ 438.50
2
1270202F00
ref: 2
MODEL V
CAMSHAFT ASSY,EXHAUST FR
1270202F00
€ 574.50
2
1270202F40
ref: 2
MODEL W/X
CAMSHAFT ASSY,EXHAUST FR
€ 565.50
3
1270302F00
ref: 3
MODEL V
CAMSHAFT ASSY,INTAKE RR
€ 396.00
3
1270302F10
ref: 3
MODEL V E4
CAMSHAFT ASSEMBLY,INTAKE,REAR
€ 396.00
3
1270302F40
ref: 3
MODEL W/X
CAMSHAFT ASSY,INTAKE RR
€ 413.00
4
1270402F00
ref: 4
MODEL V
CAMSHAFT ASSY,EXHAUST RR
€ 574.50
4
1270402F40
ref: 4
MODEL W/X
CAMSHAFT ASSY,EXHAUST RR
1270402F40
€ 565.50
5
0939022006
ref: 5
C RING
0939022006
€ 3.00
6
0833131266
ref: 6
CIRCLIP
0833131266
€ 2.50
7
1291102F00
ref: 7
VALVE,INTAKE
1291102F00
€ 36.00
8
1291202F00
ref: 8
VALVE,EXHAUST
1291202F00
€ 81.00
9
1292002F00
ref: 9
SPRING SET,VALVE
1292002F00
€ 14.00
10
1293102F00
ref: 10
RETAINER,VALVE SPRING
€ 13.00
11
1293338400
ref: 11
SEAT,VALVE SPRING
1293338400
€ 4.50
12
0928905015
ref: 12
SEAL,OIL(5.5X11X8.2)
0928905015
€ 6.50
13
1293224400
ref: 13
COTTER,VALVE
1293224400
€ 2.00
14
1289102F00
ref: 14
TAPPET
1289102F00
€ 42.50
15
1289241C00230
ref: 15
SHIM,TAPPET(T:2.3)
1289241C00230
€ 7.50
15
1289241C00235
ref: 15
SHIM,TAPPET(T:2.35)
1289241C00235
€ 7.00
15
1289241C00240
ref: 15
SHIM,TAPPET(T:2.4)
€ 7.00
15
1289241C00245
ref: 15
SHIM,TAPPET(T:2.45)
1289241C00245
€ 7.00
15
1289241C00250
ref: 15
SHIM,TAPPET(T:2.5)
1289241C00250
€ 7.00
15
1289241C00255
ref: 15
SHIM,TAPPET(T:2.55)
1289241C00255
€ 7.50
15
1289241C00260
ref: 15
SHIM,TAPPET(T:2.6)
1289241C00260
€ 8.00
15
1289241C00265
ref: 15
SHIM,TAPPET(T:2.65)
1289241C00265
€ 7.00
15
1289241C00270
ref: 15
SHIM,TAPPET(T:2.7)
1289241C00270
€ 8.00
15
1289241C00275
ref: 15
SHIM,TAPPET(T:2.75)
1289241C00275
€ 7.50
15
1289241C00280
ref: 15
SHIM,TAPPET(T:2.8)
1289241C00280
€ 7.50
15
1289241C00285
ref: 15
SHIM,TAPPET(T:2.85)
1289241C00285
€ 7.50
15
1289241C00290
ref: 15
SHIM,TAPPET(T:2.9)
1289241C00290
€ 7.50
15
1289241C00295
ref: 15
SHIM,TAPPET(T:2.95)
1289241C00295
€ 7.00
15
1289241C00300
ref: 15
SHIM,TAPPET(T:3.0)
1289241C00300
€ 7.00
15
1289241C00305
ref: 15
SHIM,TAPPET(T:3.05)
1289241C00305
€ 7.50
15
1289241C00310
ref: 15
SHIM,TAPPET(T:3.1)
1289241C00310
€ 7.50
15
1289241C00315
ref: 15
SHIM,TAPPET(T:3.15)
1289241C00315
€ 7.50
15
1289241C00320
ref: 15
SHIM,TAPPET(T:3.2)
1289241C00320
€ 7.50
15
1289241C00325
ref: 15
SHIM,TAPPET(T:3.25)
1289241C00325
€ 7.00
15
1289241C00330
ref: 15
SHIM,TAPPET(T:3.3)
1289241C00330
€ 7.00
15
1289241C00335
ref: 15
SHIM,TAPPET(T:3.35)
1289241C00335
€ 7.00
15
1289241C00340
ref: 15
SHIM,TAPPET(T:3.4)
1289241C00340
€ 7.00
15
1289241C00345
ref: 15
SHIM,TAPPET(T:3.45)
€ 7.00
15
1289241C00350
ref: 15
SHIM,TAPPET(T:3.5)
1289241C00350
€ 7.00
16
1280041810
ref: 16
OPT NOT SHOWN
SHIM SET,TAPPET
€ 793.00
17
9900069471
ref: 17
OPT NOT SHOWN
CASE,TAPPET SHIM
9900069471
€ 103.50
