CRANKSHAFT

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

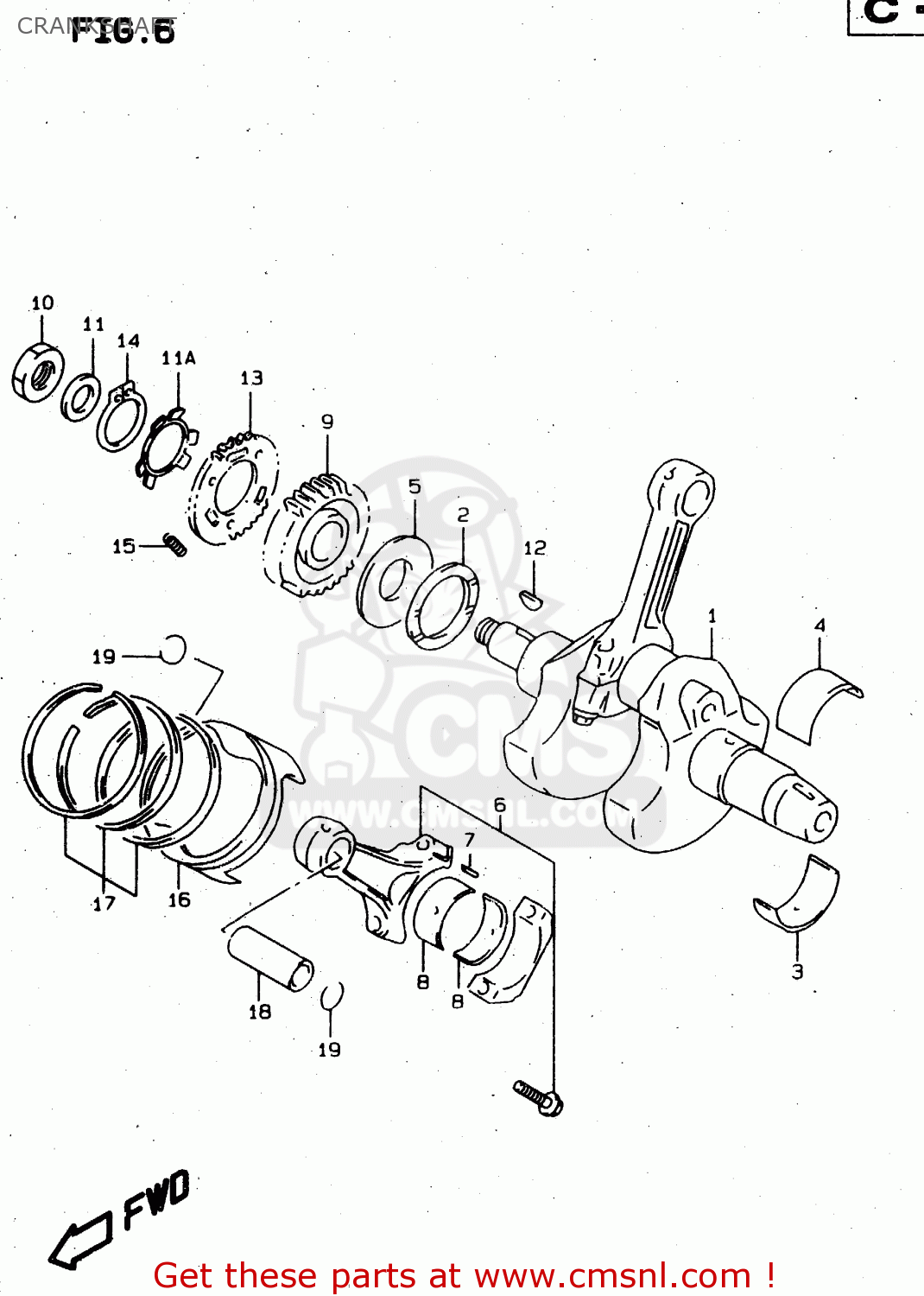

Crankshaft diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

CRANKSHAFT TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)
CRANKSHAFT TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)
CRANKSHAFT TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
1200002810
ref: 1
CRANKSHAFT SET
€ 1,306.50
2
0916048001
ref: 2
WASHER(48.1X64X1.94)
0916048001
€ 18.50
2
0916048002
ref: 2
WASHER(48.1X64X1.96)
0916048002
€ 17.00
2
0916048003
ref: 2
WASHER(48.1X64X1.99)
0916048003
€ 17.00
2
0916048004
ref: 2
WASHER(48.1X64X2.01)
0916048004
€ 17.00
2
0916048005
ref: 2
WASHER(48.1X64X2.04)
0916048005
€ 17.00
2
0916048006
ref: 2
WASHER(48.1X64X2.06)
0916048006
€ 17.00
2
0916048007
ref: 2
WASHER(48.1X64X2.09)
0916048007
€ 17.00
2
0916048008
ref: 2
WASHER(48.1X64X2.11)
0916048008
€ 17.00
2
0916048009
ref: 2
WASHER(48.1X64X2.14)
0916048009
€ 17.00
2
0916048010
ref: 2
WASHER(48.1X64X2.16)
0916048010
€ 17.00
3
1222902F000A0
ref: 3
MODEL V/W
BEARING,CRANKSHAFT,LOWER
1222902F000A0
€ 23.00
3
1222902F000B0
ref: 3
MODEL V/W
BEARING,CRANKSHAFT,LOWER
1222902F000B0
€ 25.50
3
1222902F000C0
ref: 3
MODEL V/W
BEARING,CRANKSHAFT,LOWER
1222902F000C0
€ 25.50
3
1222902F210A0
ref: 3
MODEL X
BEARING,CRANKSHAFT
1222902F210A0
€ 23.00
3
1222902F210B0
ref: 3
MODEL X
BEARING,CRANKSHAFT
1222902F210B0
€ 25.50
3
1222902F210C0
ref: 3
MODEL X
BEARING,CRANKSHAFT
1222902F210C0
€ 25.50
4
1222902F100A0
ref: 4
MODEL V/W
BEARING,CRANKSHAFT,UPPER
1222902F100A0
€ 23.00
4
1222902F100B0
ref: 4
MODEL V/W
BEARING,CRANKSHAFT,UPPER
1222902F100B0
€ 25.50
4
1222902F100C0
ref: 4
MODEL V/W
BEARING,CRANKSHAFT,UPPER
1222902F100C0
€ 25.50
4
1222902F210A0
ref: 4
MODEL X
BEARING,CRANKSHAFT
1222902F210A0
€ 23.00
4
1222902F210B0
ref: 4
MODEL X
BEARING,CRANKSHAFT
1222902F210B0
€ 25.50
4
1222902F210C0
ref: 4
MODEL X
BEARING,CRANKSHAFT
1222902F210C0
€ 25.50
5
1265238B00
ref: 5
MODEL V/W
WASHER,CRANK THRUST
1265238B00
€ 54.50
5
1265202F00
ref: 5
MODEL X
WASHER,CRANK THRUST
€ 47.00
6
1216002F00
ref: 6
CONNECTING ROD ASSY
€ 146.50
7
1216527A50
ref: 7
PIN,CONNECTING ROD
1216527A50
€ 1.00
8
1216402F000A0
ref: 8
BEARING,CRANK PIN
1216402F000A0
€ 11.00
8
1216402F000B0
ref: 8
BEARING,CRANK PIN
1216402F000B0
€ 12.50
8
1216402F000C0
ref: 8
BEARING,CRANK PIN
1216402F000C0
€ 16.50
8
1216402F000D0
ref: 8
BEARING,CRANK PIN
1216402F000D0
€ 11.00
9
2111102F00
ref: 9
MODEL V/W
GEAR,PRIMARY DRIVE
€ 96.00
9
2111102F10
ref: 9
MODEL X
GEAR,PRIMARY DRIVE
€ 91.50
10
0914022012
ref: 10
NUT
0914022012
€ 7.50
11
0916422007
ref: 11
WASHER
0916422007
€ 5.00
11A
2111402F00
ref: 11A
MODEL X
WASHER,PRI DRIVE
2111402F00
€ 5.50
12
0834131069
ref: 12
KEY
0834131069
€ 4.50
13
2111202F00
ref: 13
GEAR,PRIMARY DRIVE SCISSORS
2111202F00
€ 72.50
14
0833131426
ref: 14
MODEL V/W
CIRCLIP
0833131426
€ 2.00
14
0833131406
ref: 14
MODEL X
CIRCLIP
0833131406
€ 2.50
15
0944007001
ref: 15
SPRING
0944007001
€ 2.00
16
1211102F000F0
ref: 16
PISTON
1211102F000F0
€ 87.00
17
1214002F40
ref: 17
MODEL V
RING SET,PISTON
1214002F40
€ 84.00
17
1214002F42
ref: 17
MODEL W/X
RING SET,PISTON
1214002F42
€ 84.00
18
1215102F00
ref: 18
PIN,PISTON
1215102F00
€ 21.50
19
0938122002
ref: 19
CIRCLIP
0938122002
€ 1.50
