SEAT

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

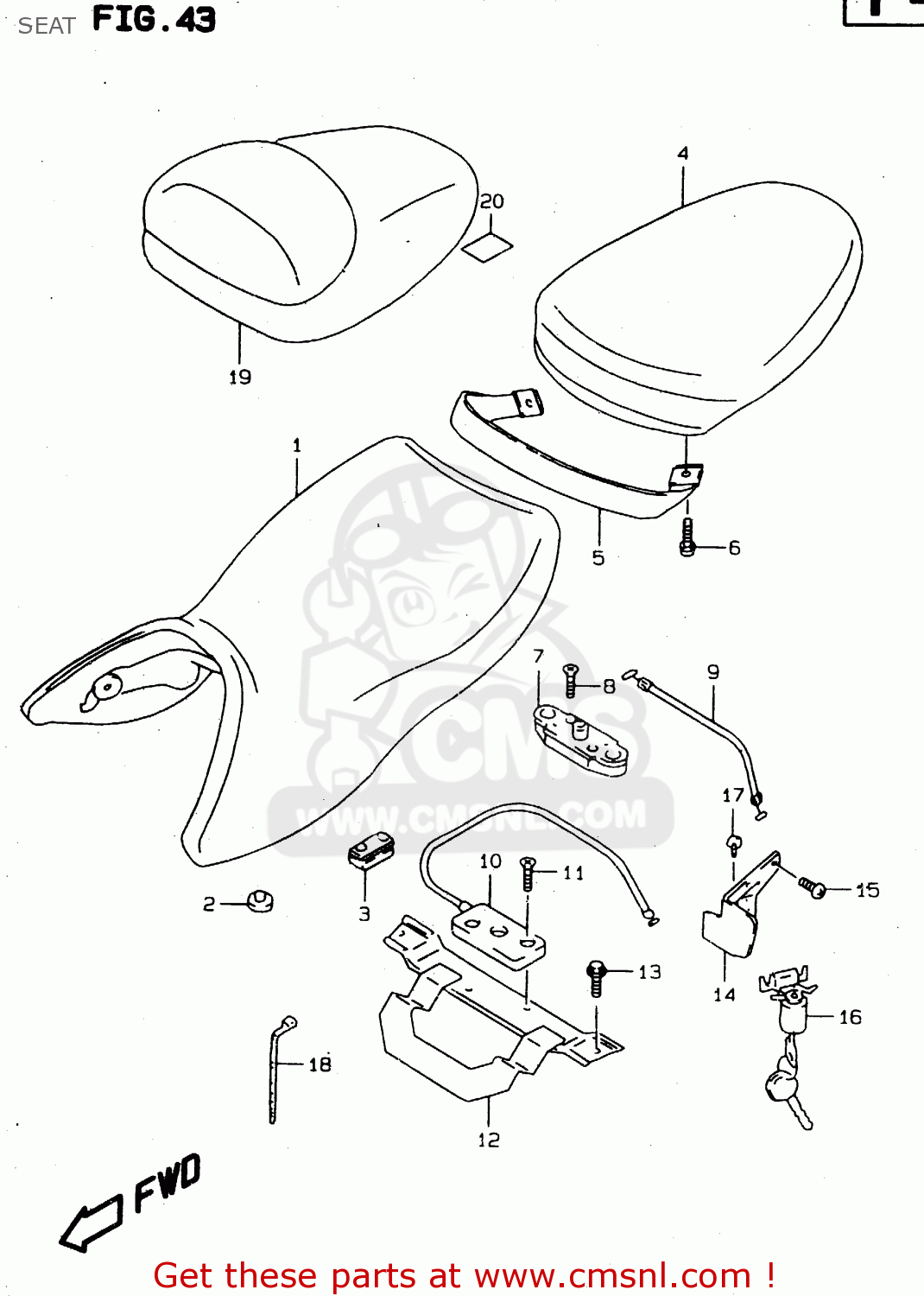

Seat diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

SEAT TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

SEAT TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4510002F10R42
ref: 1

SEAT ASSY(BLACK)

€ 303.50

2

4514836C00
ref: 2

CUSHION,SEAT

€ 4.00

2

0932110002
ref: 2

CUSHION(11.5X22X20)

€ 2.00

3

4514931300
ref: 3

CUSHION,SEAT(40X20X15)

€ 2.00

4

4530002F10R42
ref: 4

SEAT ASSY,PILLION(BLACK)

€ 197.50

5

4518002F00R42
ref: 5

BAND ASSY,PILLION SEAT(BLACK)

€ 38.50

6

0155006207
ref: 6

BOLT

€ 2.50

7

4522020A01
ref: 7

BRACKET,SEAT SUPPORT,RIGHT

€ 79.50

8

0212206303
ref: 8

SCREW

€ 2.00

9

4528038400
ref: 9

CABLE,SEAT LOCK

€ 10.00

10

4522002F00
ref: 10

BRACKET,SEAT SUPPORT FR

€ 23.50

11

0212206253
ref: 11

SCREW

€ 2.00

12

4512002F00
ref: 12

BRACKET,SEAT LOCK

€ 19.00

13

0155006163
ref: 13

BOLT

€ 2.50

14

4528902F00
ref: 14

BRACKET,SEAT LOCK KEY CYLINDER

€ 10.00

15

0214206123
ref: 15

SCREW 6X12

€ 2.00

16

9570002820
ref: 16

LOCK SET,SEAT

€ 79.50

17

0214205103
ref: 17

SCREW

€ 2.50

18

0940714403
ref: 18

CLAMP(L:125)

€ 2.50

19

4555002F001UH
ref: 19
MODEL V

BOX,SEAT TAIL(GREEN)

€ 194.50

19

4555002F0028V
ref: 19
MODEL V/W

BOX,SEAT TAIL(RED)

€ 194.50

19

4555002F0033J
ref: 19
MODEL V/W/X

BOX,SEAT TAIL(BLACK)

€ 182.50

19

4555002F00Y2D
ref: 19
MODEL W/X

BOX COMP,SEAT TAIL

€ 180.50

19

4555002F00Y3G
ref: 19
MODEL W

BOX COMP,SEAT TAIL

€ 114.00

19

4555002F00Y0W
ref: 19
MODEL X

BOX COMP,SEAT TAIL

€ 180.50

19

4555002F00Y7H
ref: 19
MODEL X

BOX COMP,SEAT TAIL

€ 180.50

20

4555933E00
ref: 20

PROTECTOR SET,SEAT TAIL BOX

€ 10.00
