RADIATOR

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

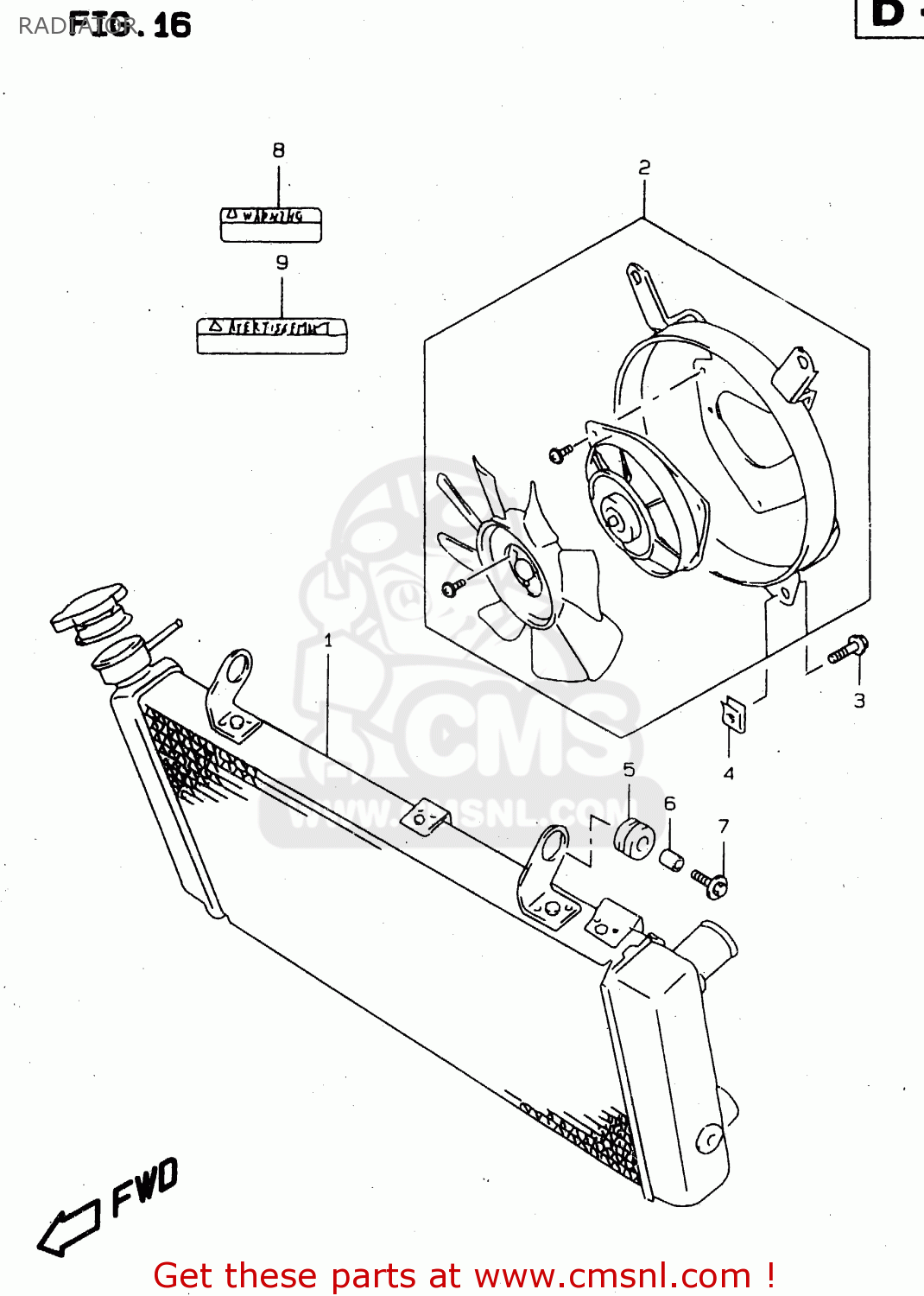

Radiator diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1771002F00
ref: 1
MODLE V

RADIATOR ASSY,WATER

€ 781.50

1771002F10
ref: 1
MODEL W/X

RADIATOR ASSY,WATER

€ 830.50

1780002F00
ref: 2

FAN ASSY,RADIATOR

€ 569.00

0155006103
ref: 3

BOLT

€ 2.50

0914806015
ref: 4
<-17762-39A00

NUT

€ 3.50

0932010042
ref: 5

CUSHION

€ 4.00

0918006290
ref: 6

SPACER(6.5X10X12)

€ 2.50

0911806097
ref: 7
MODEL V

BOLT(6X25)

€ 2.50

0911806097
ref: 7
MODEL W/X

BOLT(6X25)

€ 2.50

1799102F00
ref: 8

LABEL (COOLING FAN)

€ 4.00

1799102F10
ref: 9
E4, E18, E34

LABEL,COOLING FAN

€ 6.50
