REAR DAMPER

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

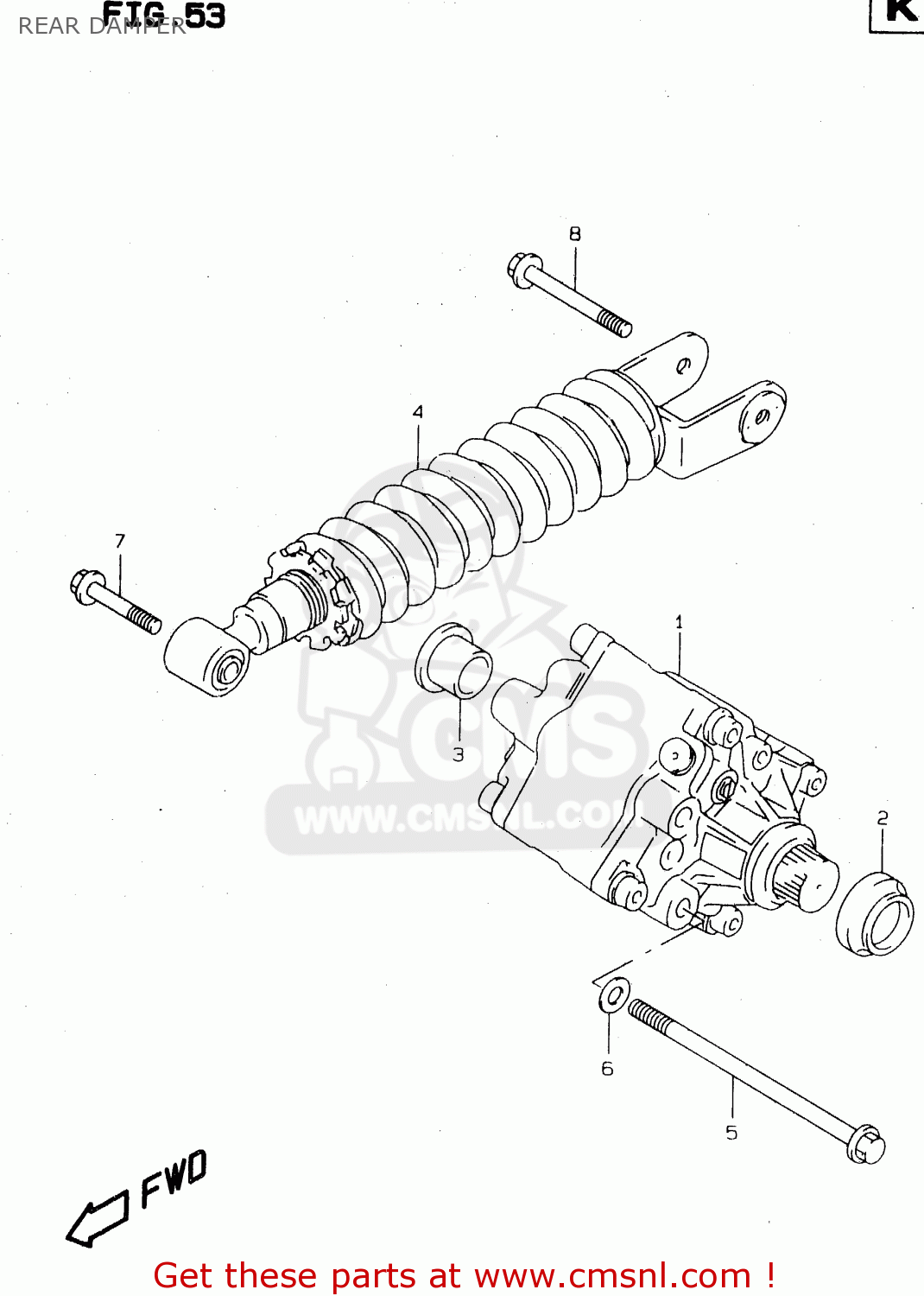

Rear damper diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

6211002F00
ref: 1
MODEL V

DAMPER ASSY,RR

€ 1,578.50

6211002F40
ref: 1
MODEL W/X

DAMPER ASSEMBLY,REAR

€ 1,496.00

6213802F00
ref: 2

CAP

€ 5.00

6213902F00
ref: 3

CAP

€ 7.00

6220002F0037W
ref: 4
MODEL V

UNIT ASSY,RR SPRING

€ 468.50

6220002F2037W
ref: 4
MODEL W/X

UNIT ASSY,RR SPRING

€ 464.00

0910310122
ref: 5

BOLT(10X130)

€ 9.50

0916410008
ref: 6

WASHER

€ 1.50

0910310101
ref: 7

BOLT(10X54)

€ 3.00

0910310050
ref: 8

BOLT(10X60)

€ 5.50
