STEERING STEM (MODEL V)

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

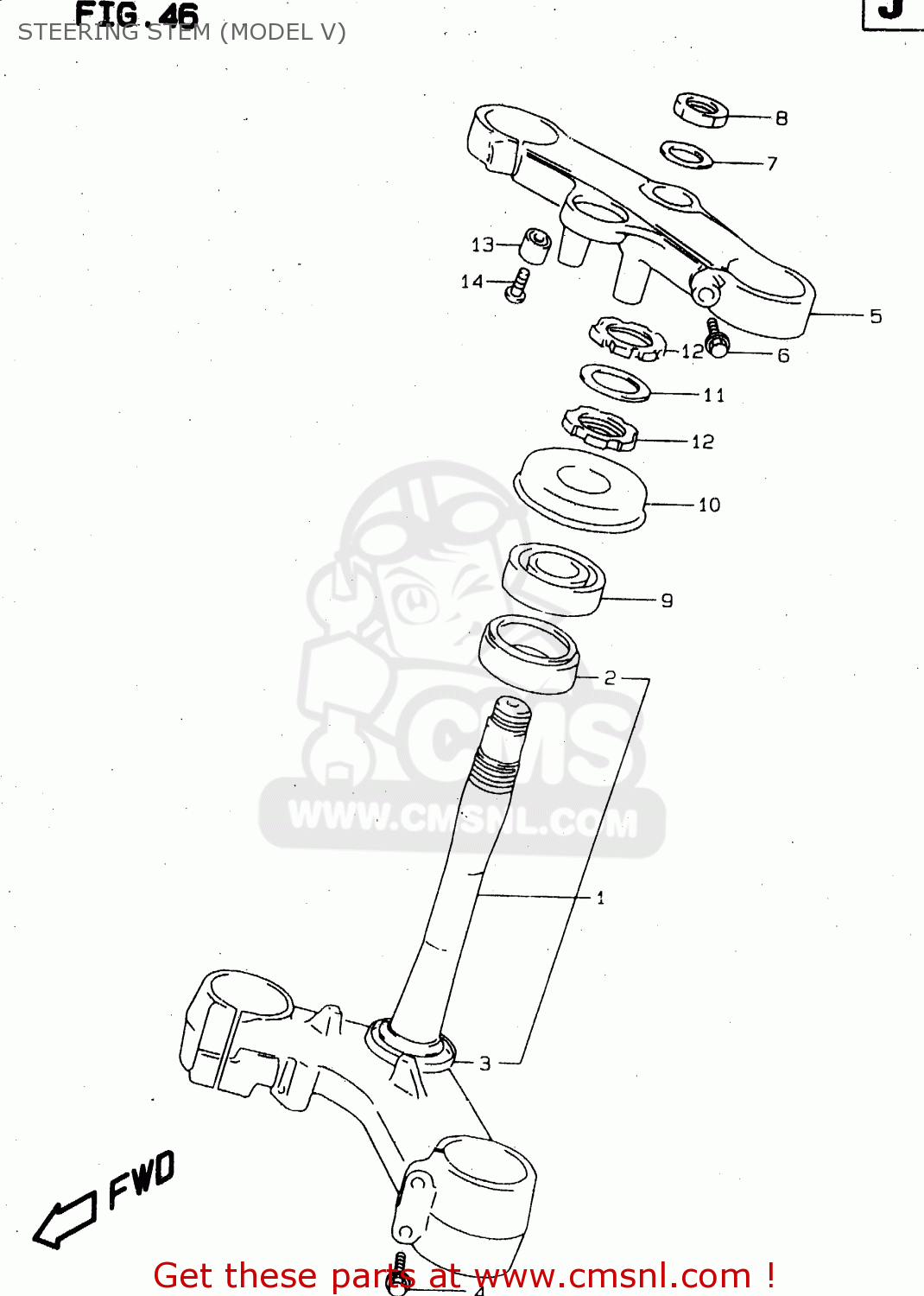

Steering stem (model v) diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

STEERING STEM (MODEL V) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

STEERING STEM (MODEL V) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

5141002F00
ref: 1

STEM,STEERING

€ 716.50

2

0926730010
ref: 2

BEARING(30X55X17)

€ 46.50

3

5164412C00
ref: 3

SEAL,STEERING LWR

€ 5.50

4

0155008407
ref: 4

BOLT

€ 3.50

5

5131102F00
ref: 5

HEAD,STEERING STEM

€ 345.50

6

0155008357
ref: 6
NO STEERING DAMPER

BOLT

€ 3.50

6

5132803FA0
ref: 6
WITH STEERING DAMPER

BOLT(8X32)

€ 3.00

6

0155008357
ref: 6
WITH STEERING DAMPER

BOLT

€ 3.50

7

5135627C00
ref: 7
NO STEERING DAMPER

WASHER,STEM HEAD(24.5X34X1.6)

€ 2.50

7

5172302F00
ref: 7
WITH STEERING DAMPER

WASHER,STEERING DAMPER

€ 4.50

8

5135302F00
ref: 8
NO STEERING DAMPER

NUT

€ 26.50

8

5135302F10
ref: 8
WITH STEERING DMPAER

NUT,STEM TOP

€ 24.50

9

0926730010
ref: 9

BEARING(30X55X17)

€ 46.50

10

5164333E00
ref: 10

SEAL,STEERING UPR DUST

€ 12.50

11

5164133E00
ref: 11

WASHER,STEERING STEM

€ 3.00

12

5163133E00
ref: 12

NUT,STEERING STEM

€ 12.00

13

5627802F00
ref: 13

BALANCER,BRACKET UPR

€ 18.50

14

0214206303
ref: 14

SCREW

€ 2.00
