FUEL TANK (MODEL X)

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

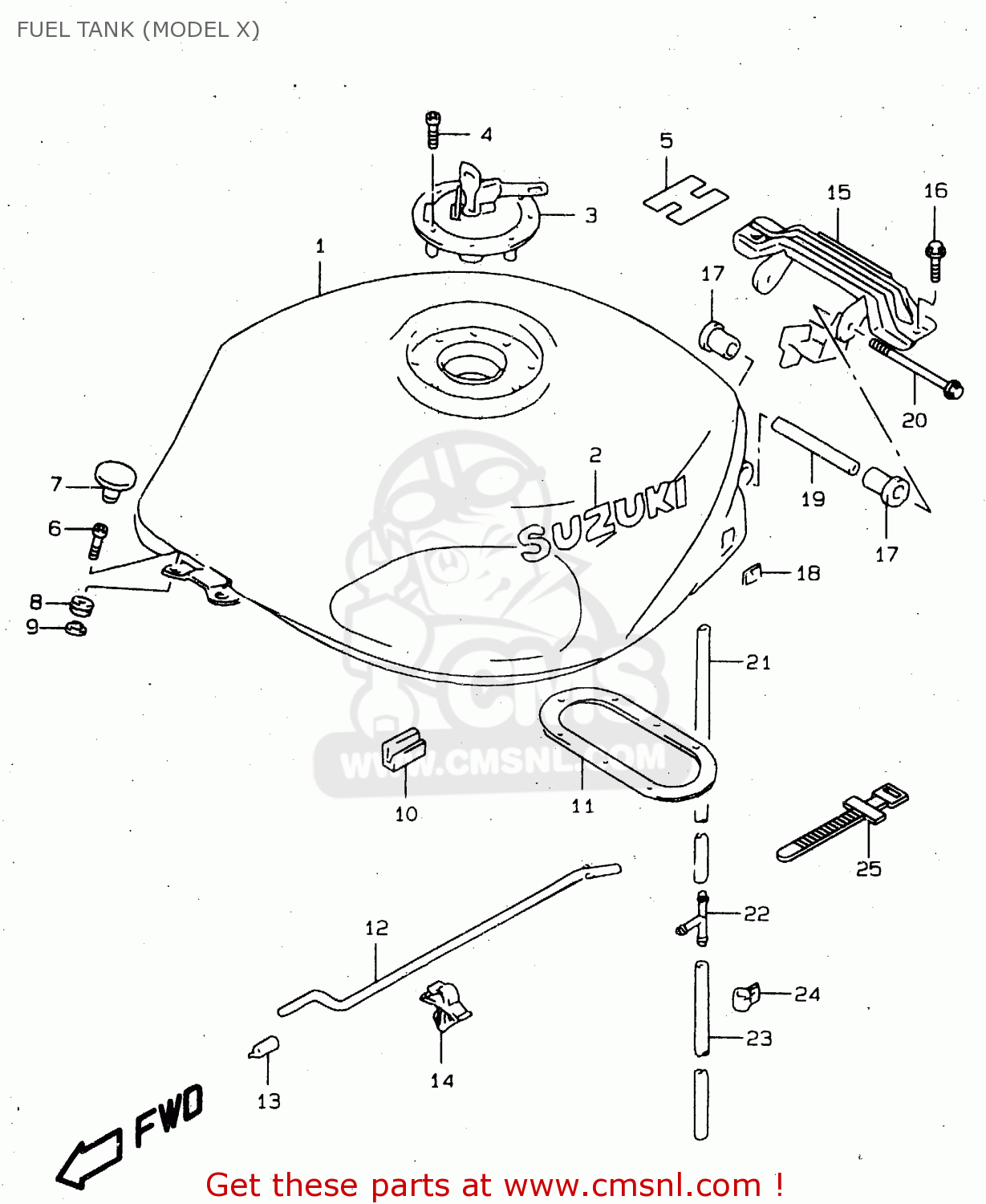

Fuel tank (model x) diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

FUEL TANK (MODEL X) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

FUEL TANK (MODEL X) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4410002F002AX
ref: 1

TANK ASSEMBLY,FUEL

€ 489.50

1

4410002F00Y0W
ref: 1

TANK ASSEMBLY,FUEL

€ 476.00

1

4410002F00Y2D
ref: 1

TANK ASSEMBLY,FUEL

€ 778.50

1

4410002F00Y7H
ref: 1

TANK ASSEMBLY,FUEL

€ 1,122.00

2

6811112C0017U
ref: 2
FOR 2AX

EMBLEM,FUEL TANK

€ 15.50

2

6811112C0020G
ref: 2
FOR Y0W, Y2D

EMBLEM,FUEL TANK

€ 19.50

2

6811112C001ZY
ref: 2
FOR Y7H

EMBLEM,FUEL TANK

€ 12.50

3

4420033870
ref: 3

CAP SET,FUEL TANK

€ 253.50

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

4426102F00
ref: 5

LABEL,FUEL TANK INNER

€ 4.00

6

0713006653
ref: 6

BOLT

€ 4.00

7

4451402F00
ref: 7

CAP,BOLT

€ 4.00

8

0932009009
ref: 8

CUSHION

€ 5.00

9

0916906062
ref: 9

WASHER

€ 3.00

10

4454133E00
ref: 10

CUSHION,FUEL TANK SIDE

€ 20.50

11

4459602F01
ref: 11

GASKET,FUEL PUMP (NAS)

€ 38.00

12

4457433E01
ref: 12

STAY,FUEL TANK

€ 13.50

13

0925105006
ref: 13

CAP,OD:11

€ 5.50

14

0940305310
ref: 14

CLAMP

€ 4.50

15

4455002F00
ref: 15

BRACKET,FUEL TANK,REAR

€ 27.00

16

0910608140
ref: 16

BOLT(8X16)

€ 6.00

17

4454102F00
ref: 17

CUSHION,FUEL TANK RR

€ 27.50

18

4457202F00
ref: 18

FASTENER,FUEL TANK

€ 8.50

19

4456133E10
ref: 19

SPACER,FUEL TANK RR

€ 19.00

20

0155008953
ref: 20

BOLT

€ 3.50

21

4442302F01
ref: 21

HOSE,FUEL TANK DRAIN

€ 12.00

22

0936708005
ref: 22

3 WAY

€ 4.00

23

0935270103600
ref: 23

HOSE(7X10.2X600)

€ 8.00

24

0940314408
ref: 24

CLAMP

€ 6.00

25

0940714403
ref: 25
MODEL W

CLAMP(L:125)

€ 2.50

all assemblies
