FOOTREST

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

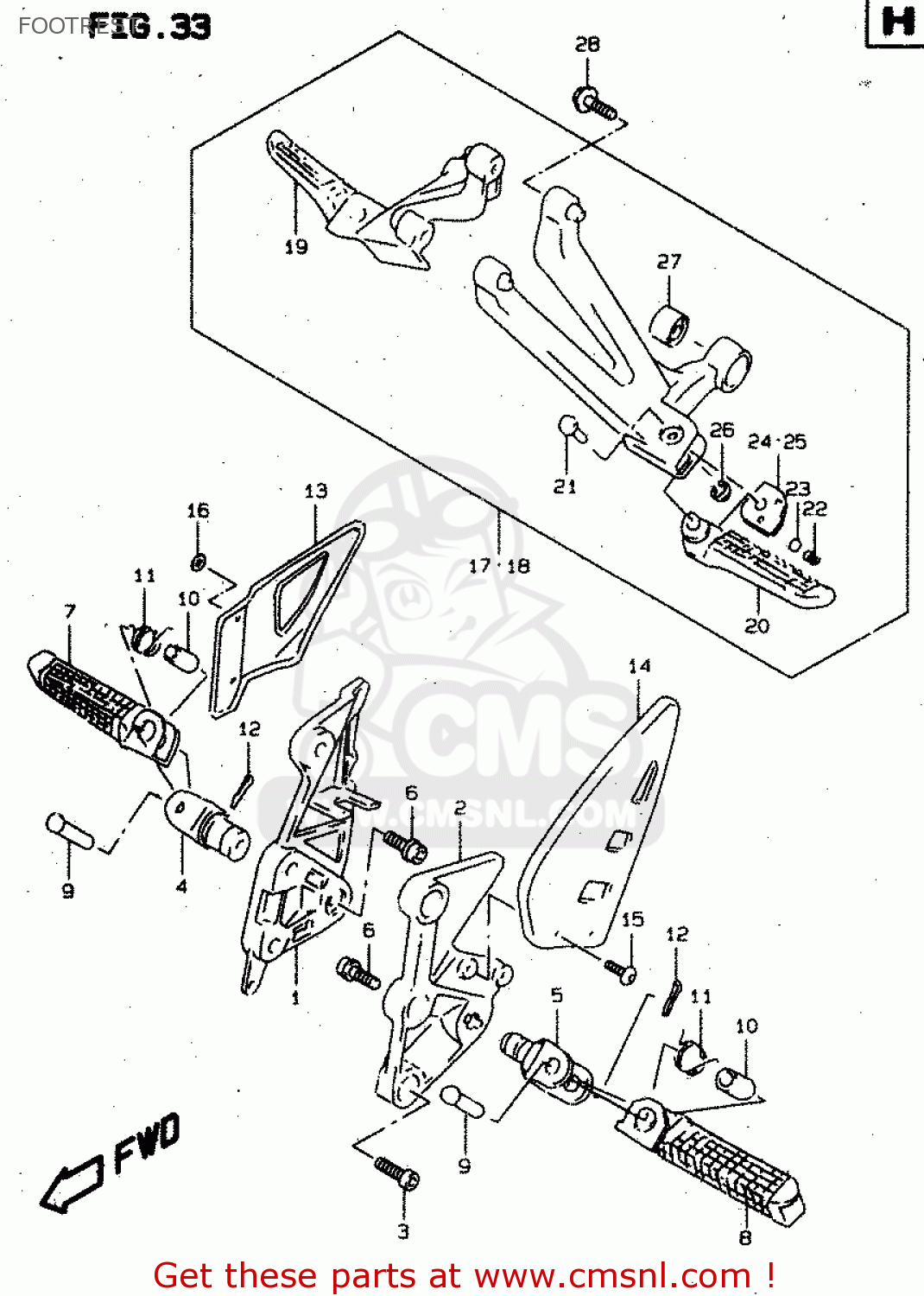

Footrest diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

FOOTREST TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)
FOOTREST TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)
FOOTREST TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
4351102F00
ref: 1
BRACKET,FR FOOTREST,R
4351102F00
€ 121.50
2
4352102F00
ref: 2
BRACKET,FR FOOTREST,L
4352102F00
€ 110.50
3
0713008207
ref: 3
MODEL V
BOLT
0713008207
€ 3.00
3
0713008203
ref: 3
MODEL W/X
BOLT
0713008203
€ 3.00
4
4353017E00
ref: 4
MODEL V
HOLDER,FOOTREST,RIGHT
4353017E00
€ 33.00
4
4353017E01
ref: 4
MODEL W/X
HOLDER,FOOTREST,R
4353017E01
€ 33.00
5
4354017E00
ref: 5
HOLDER,FOOTREST,L
4354017E00
€ 33.00
6
0910610064
ref: 6
BOLT(10X28)
0910610064
€ 4.50
7
4351002F00
ref: 7
BAR,FRONT FOOTREST,RIGHT
4351002F00
€ 37.00
8
4352002F00
ref: 8
BAR,FRONT FOOTREST,LEFT
4352002F00
€ 37.00
9
0920008057
ref: 9
PIN
0920008057
€ 3.00
10
0918008149
ref: 10
SPACER(8.1X12X22)
0918008149
€ 7.00
11
0944818022
ref: 11
SPRING
0944818022
€ 3.50
12
0411125158
ref: 12
PIN 20X15
0411125158
€ 1.50
13
4357002F00
ref: 13
MODEL V
GUARD COMP,FRONT FOOTREST
€ 56.50
13
4357002F01
ref: 13
MODEL W/X
GUARD,FR FOOTREST,R
4357002F01
€ 56.50
14
4358002F00
ref: 14
MODEL V
GUARD COMP,FRONT FOOTREST
4358002F00
€ 58.00
14
4358002F01
ref: 14
MODEL W/X
GUARD,FR FOOTREST,L
4358002F01
€ 58.00
15
0913905033
ref: 15
SCREW(5X10)
0913905033
€ 2.00
16
0916006129
ref: 16
WASHER(6.5X16X1)
0916006129
€ 2.00
17
4360002F00
ref: 17
FOOTREST ASSY,PILLION,R
4360002F00
€ 150.00
18
4370002F00
ref: 18
FOOTREST ASSY,PILLION,L
€ 167.00
19
4361133E00
ref: 19
BAR,PILLION FOOTREST,RIGHT
4361133E00
€ 23.50
20
4362133E00
ref: 20
BAR,PILLION FOOTREST,LEFT
4362133E00
€ 23.50
21
8725985510
ref: 21
PIN
8725985510
€ 4.50
22
0944005005
ref: 22
SPRING
0944005005
€ 1.50
23
0611107004
ref: 23
BALL
0611107004
€ 1.50
24
4381623E10
ref: 24
MODEL V
PLATE,PILLION FOOT,R
4381623E10
€ 4.50
24
4381633E20
ref: 24
MODEL W/X
PLATE,PILLION,RIGHT
4381633E20
€ 15.00
25
4382623E10
ref: 25
MODEL V
PLATE,PILLION FOOT,L
4382623E10
€ 4.50
25
4382633E20
ref: 25
MODEL W/X
PLATE,PILLION,LEFT
€ 15.00
26
0833211043
ref: 26
E-RING
0833211043
€ 2.00
27
0931908028
ref: 27
BUSH
0931908028
€ 17.00
28
0155008163
ref: 28
BOLT
0155008163
€ 3.00
