REAR SWINGING ARM (E2, E4, E25, E34, P37)

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

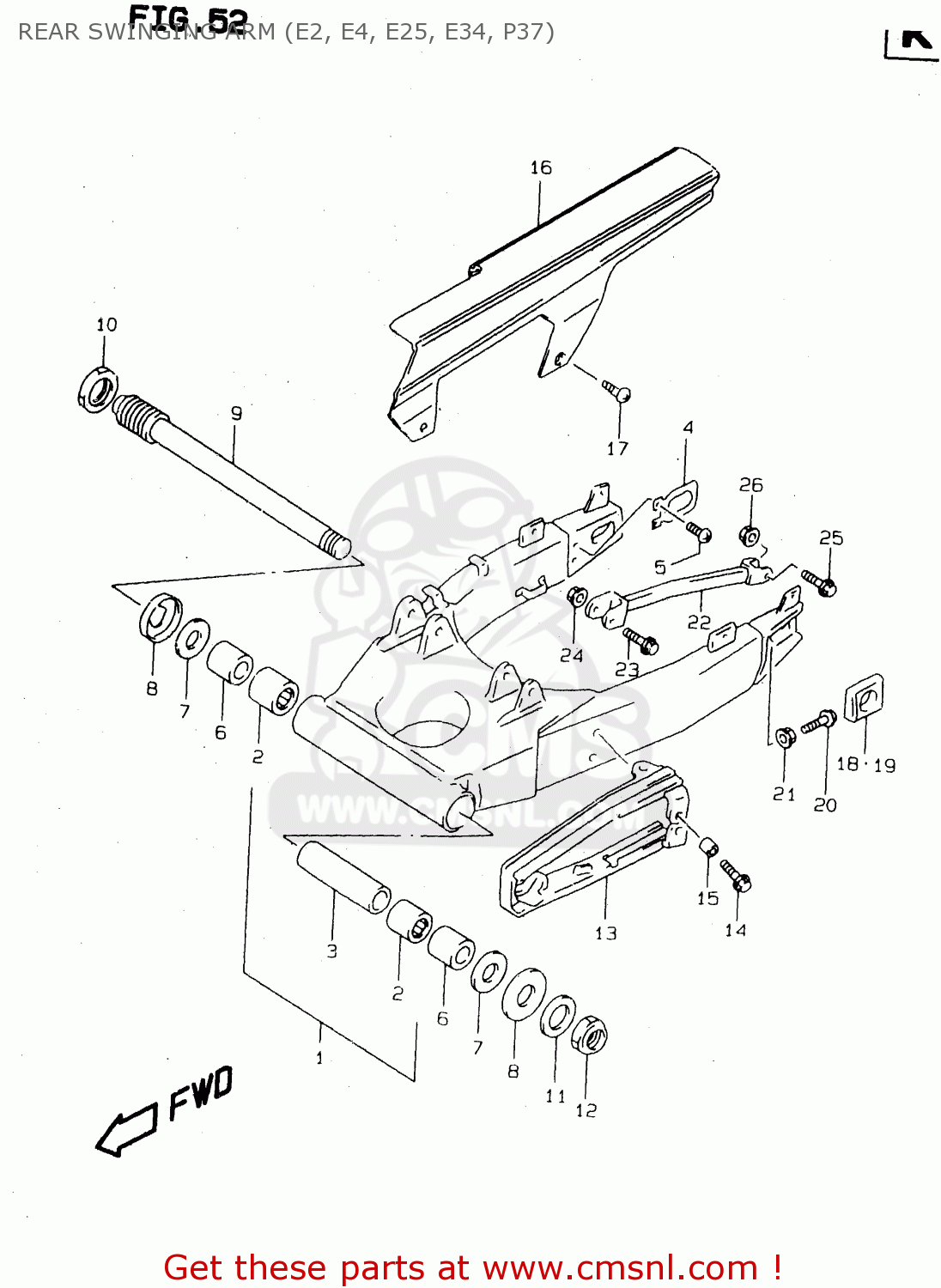

Rear swinging arm (e2, e4, e25, e34, p37) diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

REAR SWINGING ARM (E2, E4, E25, E34, P37) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

REAR SWINGING ARM (E2, E4, E25, E34, P37) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

6100002F10
ref: 1

SWINGINGARM ASSY,RR

€ 1,529.00

2

0926330040
ref: 2

BEARING(30X40X25)

€ 31.50

3

6128033E00
ref: 3
MODEL V/W, ->61281-3

SPACER COMP,REAR SWING PIVOT

€ 26.00

3

6128133E10
ref: 3
MODEL X

SPACER,REAR SWING PIVOT,CENTER

€ 26.00

4

6112433E00
ref: 4

PLATE,RR SWING ARM BRKT

€ 3.50

5

0214206103
ref: 5

SCREW 6X10

€ 2.00

6

6125117E10
ref: 6

SPACER,REAR SWING ARM PIVOT

€ 7.00

7

0821125481
ref: 7

WASHER

€ 5.50

8

6126217E10
ref: 8

DUST SEAL,RR SWGARM PIVOT

€ 6.50

9

6121133E00
ref: 9

SHAFT,RR SWINGINGARM PIVOT

€ 100.00

10

6121440C30
ref: 10

NUT,REAR SWING ARM PIVOT

€ 16.50

11

0916025070
ref: 11

WASHER(25.2X42X3.2)

€ 4.50

12

0915925001
ref: 12

NUT

€ 29.00

13

6127302F00
ref: 13

BUFFER,CHAIN TOUCH DEFENSE

€ 32.50

14

0911606111
ref: 14

BOLT 6X20,WITH PLAIN WASHER

€ 2.00

15

0918006306
ref: 15

SPACER(6.5X9X5)

€ 2.00

16

6131034E00
ref: 16

CASE,CHAIN

€ 44.00

17

0913906083
ref: 17

SCREW(6X16)

€ 2.50

18

6144533E00
ref: 18

ADJUSTER,CHAIN,R

€ 42.00

19

6144633E10
ref: 19

ADJUSTER,CHAIN,L

€ 42.50

20

0910008287
ref: 20

BOLT(8X50)

€ 3.00

21

0831610083
ref: 21

NUT

€ 3.00

22

6431033E00
ref: 22

TORQUELINK,RR

€ 82.00

23

0911108083
ref: 23

BOLT(8X44)

€ 6.00

24

0831931087
ref: 24

NUT

€ 2.50

25

0910310019
ref: 25

BOLT(10X37)

€ 2.50

26

0831931107
ref: 26

NUT

€ 3.00
