CRANKCASE COVER

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

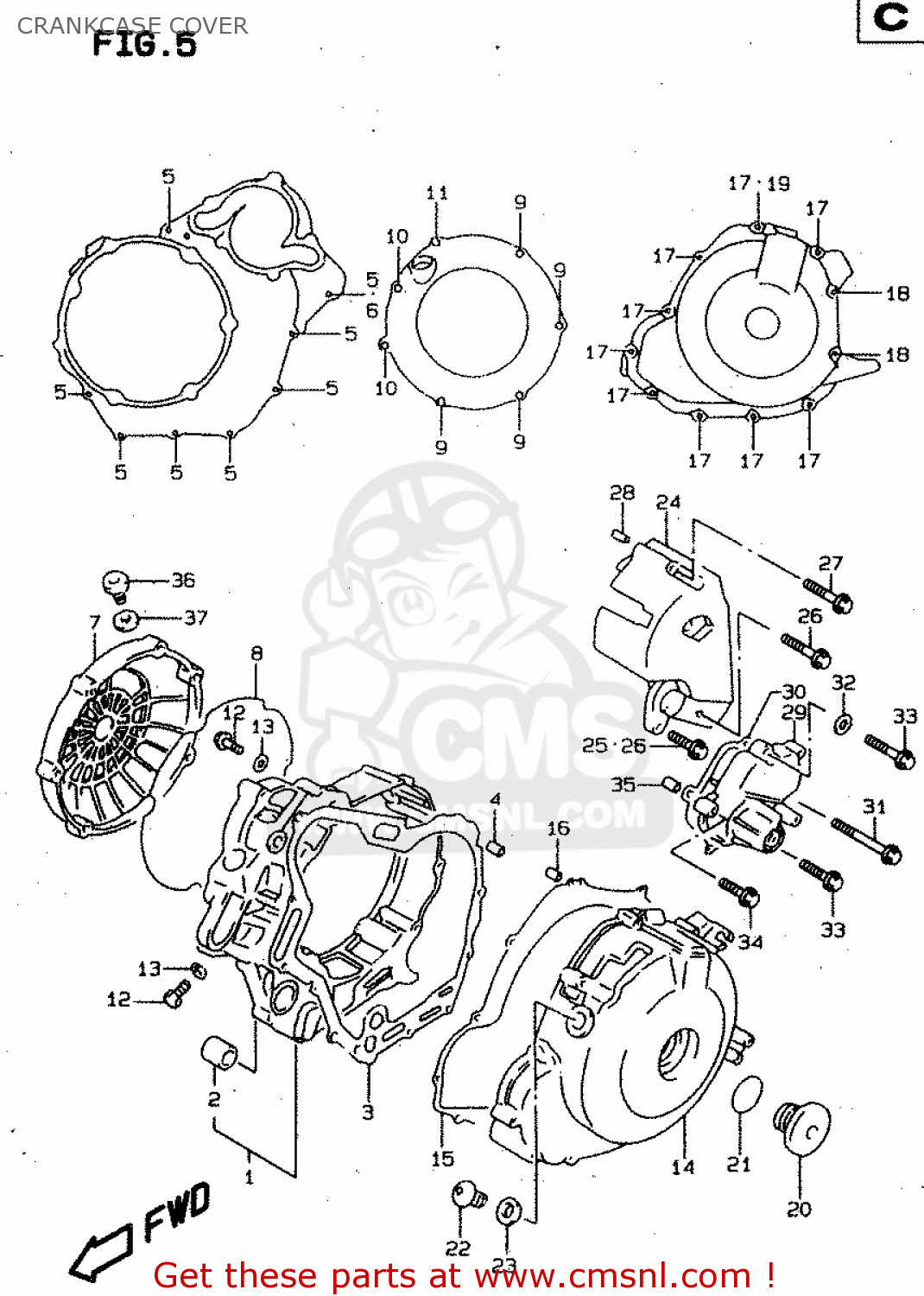

Crankcase cover diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

CRANKCASE COVER TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)
CRANKCASE COVER TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)
CRANKCASE COVER TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
1134002F00
ref: 1
MODEL V
COVER COMP,CLUTCH
1134002F00
€ 399.00
1
1134002F10
ref: 1
MODEL W/X
COVER,CLUTCH
1134002F10
€ 940.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148202F00
ref: 3
GASKET,CLUTCH COVER (NAS)
1148202F00
€ 21.50
4
0421109149
ref: 4
PIN
0421109149
€ 2.00
5
0154706307
ref: 5
BOLT
0154706307
€ 2.50
6
0916806024
ref: 6
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
7
1137002F00
ref: 7
MODEL V, ->11370-02F
COVER COMP,CLUTCH,OUTER
1137002F00
€ 119.00
7
1137002F10
ref: 7
MODEL W/X
COVER,CLUTCH OUTER
1137002F10
€ 119.00
8
1148402F00
ref: 8
MODEL V
O RING,CLUTCH COVER OUTER
1148402F00
€ 22.00
8
1148402F10
ref: 8
MODEL W/X
O RING,CLUTCH COVER OUTER
1148402F10
€ 17.50
9
0154706307
ref: 9
BOLT
0154706307
€ 2.50
10
0154706803
ref: 10
MODEL V
BOLT
€ 3.50
10
0154706757
ref: 10
MODEL W/X
BOLT
0154706757
€ 2.50
11
0154706857
ref: 11
BOLT
0154706857
€ 2.50
12
0155006103
ref: 12
MODEL V
BOLT
0155006103
€ 2.50
12
0155006103
ref: 12
MODEL W/X
BOLT
0155006103
€ 2.50
13
0916806004
ref: 13
MODEL V
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
13
0916806004
ref: 13
MODEL W/X
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
14
1135102F00
ref: 14
MODEL V, ->11351-02F
COVER,MAGNETO
€ 222.00
14
1135102F01
ref: 14
MODEL W/X
COVER,MAGNETO
1135102F01
€ 222.00
15
1148302F00
ref: 15
GASKET,MAGNETO COVER (NAS)
1148302F00
€ 17.50
16
0421109149
ref: 16
PIN
0421109149
€ 2.00
17
0154706357
ref: 17
BOLT
0154706357
€ 2.50
18
0154706707
ref: 18
BOLT
0154706707
€ 2.50
19
0916806024
ref: 19
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
20
0925936021
ref: 20
PLUG
0925936021
€ 11.00
21
0928033004
ref: 21
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
22
0924814005
ref: 22
PLUG,14X12
0924814005
€ 5.00
23
0916814002
ref: 23
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
24
1136002F00
ref: 24
COVER,ENGINE SPROCKET
€ 51.00
25
0154706257
ref: 25
MODEL V
BOLT
0154706257
€ 2.50
26
0154706357
ref: 26
MODEL V
BOLT
0154706357
€ 2.50
26
0154706357
ref: 26
MODEL W/X
BOLT
0154706357
€ 2.50
27
0154706757
ref: 27
BOLT
0154706757
€ 2.50
28
0421109149
ref: 28
PIN
0421109149
€ 2.00
29
1138102F00
ref: 29
MODEL V
COVER,GEAR SHIFT
1138102F00
€ 58.00
29
1138102F01
ref: 29
MODEL W/X
COVER,GEAR SHIFT
1138102F01
€ 58.00
30
1148502F00
ref: 30
GASKET,GEAR SHIFT COVER (NAS)
1148502F00
€ 4.00
31
0910306126
ref: 31
BOLT(6X105)
0910306126
€ 5.00
32
0916806024
ref: 32
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
33
0154706257
ref: 33
BOLT
0154706257
€ 2.50
34
0154706357
ref: 34
BOLT
0154706357
€ 2.50
35
0421109149
ref: 35
PIN
0421109149
€ 2.00
36
0925920008
ref: 36
PLUG
0925920008
€ 6.50
37
0928017003
ref: 37
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
