OPTIONAL

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

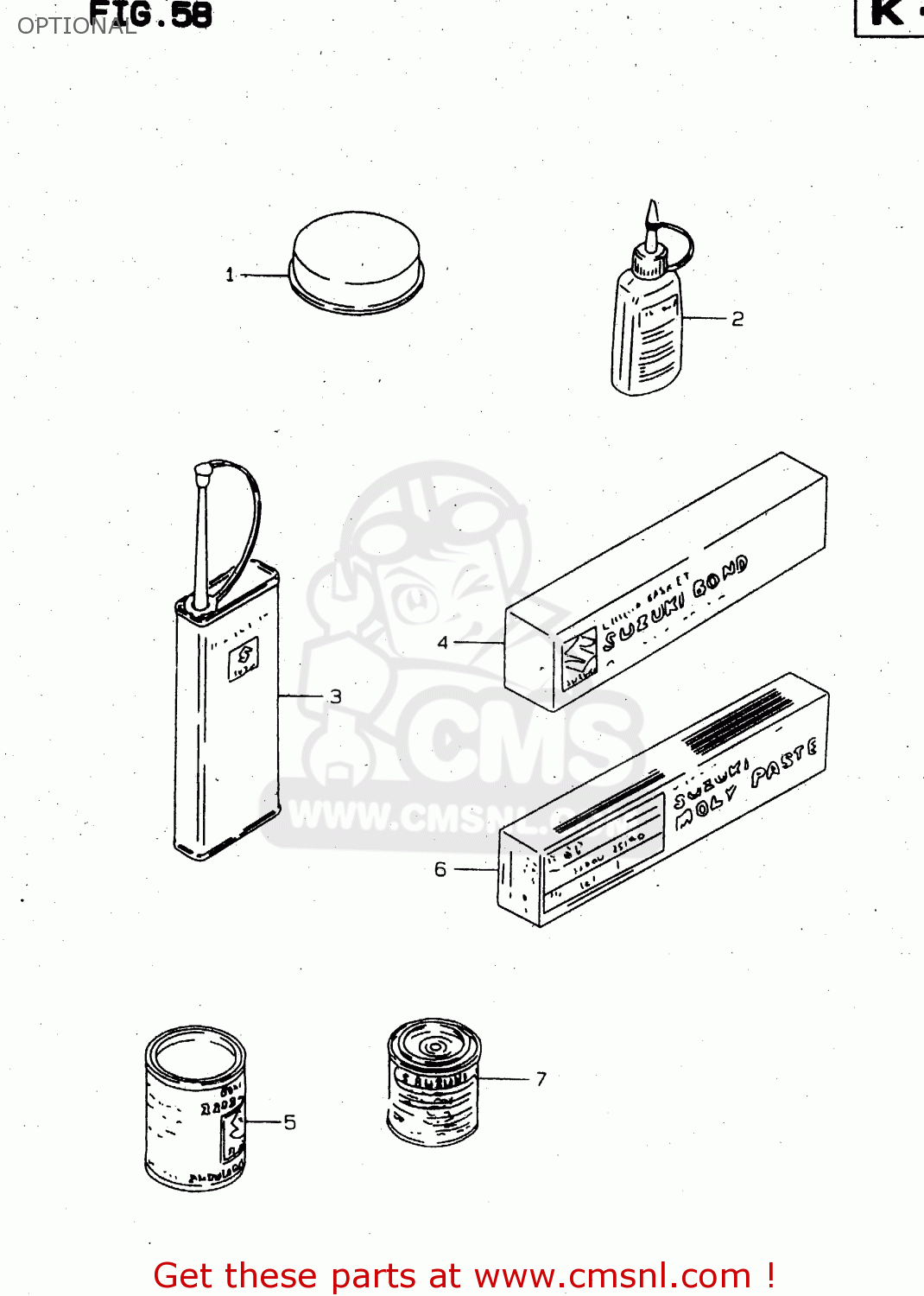

Optional diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

OPTIONAL TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

OPTIONAL TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

9900025110
ref: 1
20G

GREASE,PBC FOR BRK PAD 20G

€ 44.00

2

9900032020
ref: 2
50G

THREAD LOCK(1333B RED 50G)

€ 29.00

2

9900032030
ref: 2
50G

THREAD LOCK NO.1303B PURPL 50G

€ 40.00

2

9900032050
ref: 2
50G

THREAD LOCK NO.1342

€ 20.00

2

9900032100
ref: 2
50G

THREAD LOCK NO.1305 GREEN 50G

€ 40.00

2

9900032130
ref: 2
50G

THREAD LOCK SUPER(1360)

€ 29.00

3

9900032040
ref: 3
200G

THREAD LOCK NO.1401 CLEAR 200G

€ 92.50

4

9900031140
ref: 4
100G

LIQUID GSKT NO.1207B 100G BLK

€ 92.50

4

9900031110
ref: 4
100G

LIQUID GSKT NO.1215 250G

€ 92.50

5

9900025030
ref: 5
150G

GREASE(C)EP2 LITHIUM 150G

€ 8.00

6

9900025140
ref: 6
50G

SUZUKI MOLY PASTE

€ 12.00

7

990001020933J
ref: 7
90G

PAINT(PEARL NOVELTY BLACK)

€ 76.00

7

99000102091UH
ref: 7
90G

PAINT (MARBLE PRIME GREEN)

€ 76.00

7

990001020928V
ref: 7
90G

PAINT (MARBLE ITALIAN RED)

€ 76.00

7

9900010209Y2D
ref: 7
90G

PAINT (FLASH SILVER METALLIC)

€ 76.00

7

9900010209Y3G
ref: 7
90G

PAINT (CANDY JADE LIME YELLOW)

€ 76.00

7

9900010209Y0W
ref: 7
90G

PAINT (CANDY KORAN ORANGE)

€ 76.00

7

9900010209Y7H
ref: 7
90G

PAINT (PEARL DARK SPACE BLUE)

€ 76.00
