HANDLE LEVER

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

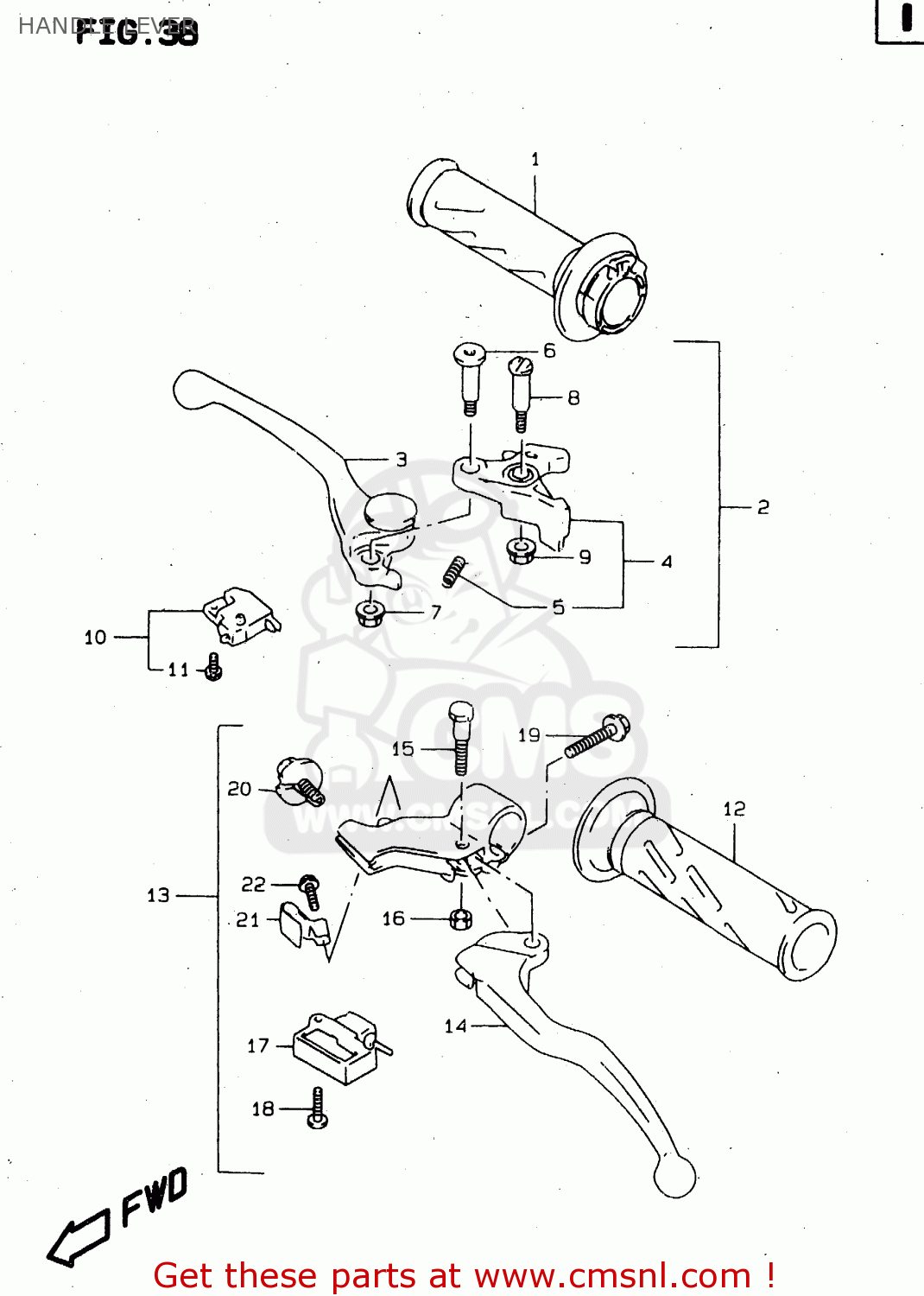

Handle lever diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

HANDLE LEVER TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

HANDLE LEVER TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

5711046E01
ref: 1

GRIP,THROTTLE

€ 26.00

2

5730032C01
ref: 2
MODEL V

LEVER ASSEMBLY,BRAKE

€ 88.00

2

5730032C10
ref: 2
MODEL W/X

LEVER ASSY,BRAKE

€ 88.00

3

5742032C00
ref: 3

LEVER,ADJUST

€ 39.50

4

5743032C00
ref: 4
MODEL V/W

KNOCKER

€ 45.50

4

5743032C10
ref: 4
MODEL X

KNOCKER

€ 45.50

5

5743832C00
ref: 5

SPRING

€ 4.00

6

5743732C01
ref: 6

BOLT,LEVER

€ 6.50

7

0831931063
ref: 7

NUT

€ 2.50

8

5743117C00
ref: 8

BOLT,LEVER PIVOT

€ 8.00

9

0831610063
ref: 9

NUT

€ 2.50

10

5746017C00
ref: 10

SWITCH ASSEMBLY,STOP

€ 32.50

11

5746517C00
ref: 11

SCREW

€ 1.50

12

5721122D01
ref: 12

GRIP,LEFT

€ 11.50

13

5750033E20
ref: 13

LEVER ASSEMBLY,CLUTCH

€ 97.00

14

5762133E00
ref: 14

LEVER,CLUTCH

€ 24.00

15

5743145C00
ref: 15

BOLT,LEVER SET

€ 10.50

16

0831921063
ref: 16

NUT

€ 2.50

17

5756005A00
ref: 17

SWITCH,CLUTCH

€ 11.00

18

0212203208
ref: 18

SCREW

€ 2.00

19

0154706203
ref: 19

SCREW

€ 2.50

20

5764133E20
ref: 20

NUT,CABLE ADJUSTER

€ 24.00

21

5764433E00
ref: 21

SPRING,ADJUST

€ 6.50

22

5764233E00
ref: 22

SCREW,SPRING

€ 2.50
