STEERING DAMPER (MODEL V)

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

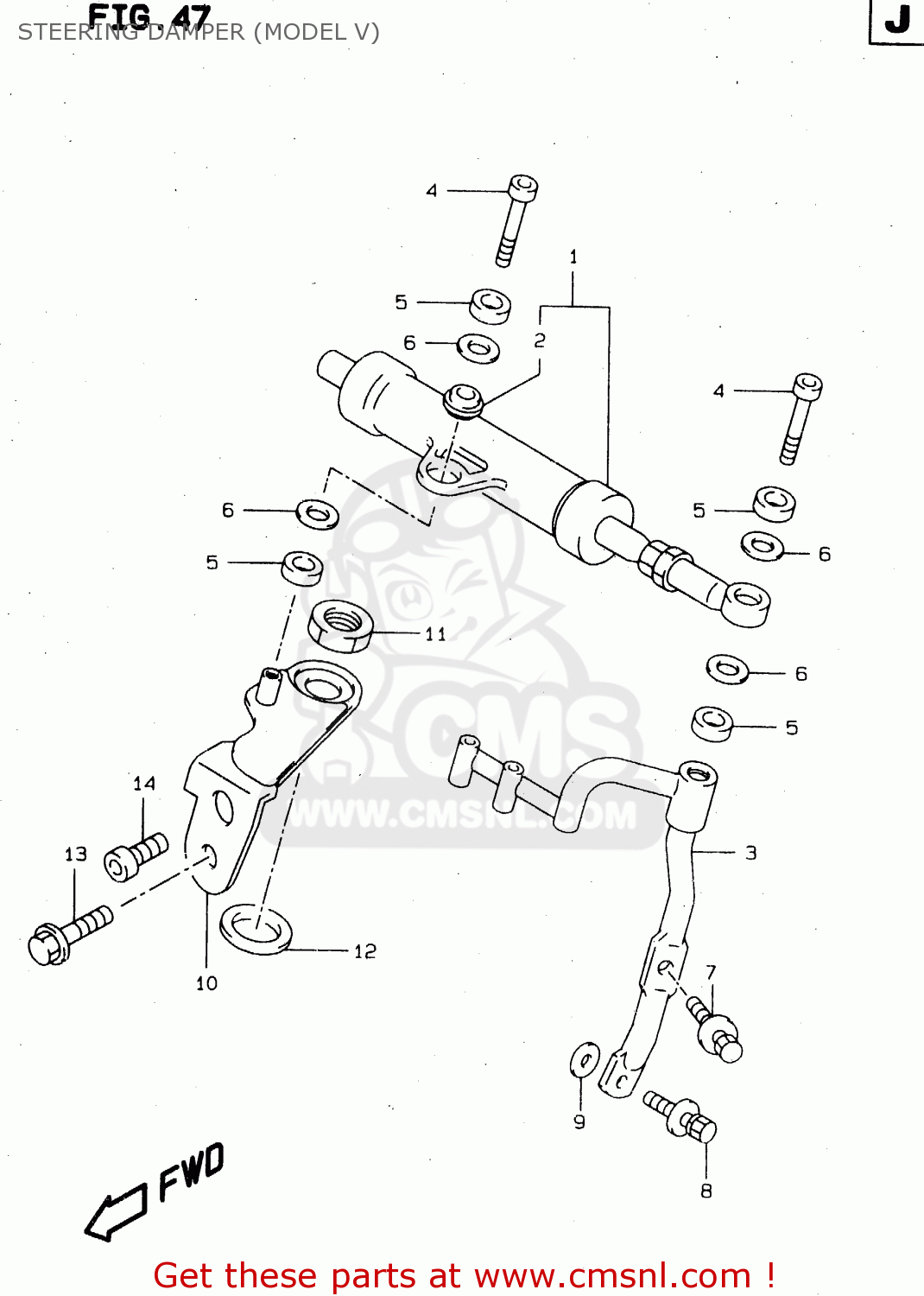

Steering damper (model v) diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

5175002F10
ref: 1

DAMPER ASSY, STEERING

€ 684.00

0926908003
ref: 2

BEARING(8X17.5X11)

€ 39.50

5171002F00
ref: 3
->51700-02810

STAY,STEERING DAMPER

€ 75.50

0910608071
ref: 4

BOLT(8X35)

€ 5.50

6433940410
ref: 5

6433940410

0918108106
ref: 6

SHIM(8X12X0.8)

€ 3.00

0911606171
ref: 7

BOLT(6X30)

€ 2.50

5173502F00
ref: 8

BOLT,STAY,LOWER 6X35

€ 4.50

0916006088
ref: 9

WASHER(6.5X20X1.6)

€ 2.00

5172002F00
ref: 10
->51700-02820

PLATE,STEERING DAMPER

€ 265.00

5135302F10
ref: 11

NUT,STEM TOP

€ 24.50

5172302F00
ref: 12

WASHER,STEERING DAMPER

€ 4.50

0155008127
ref: 13

BOLT

€ 3.50

5132803FA0
ref: 14

BOLT(8X32)

€ 3.00
