ELECTRICAL (MODEL W/X)

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

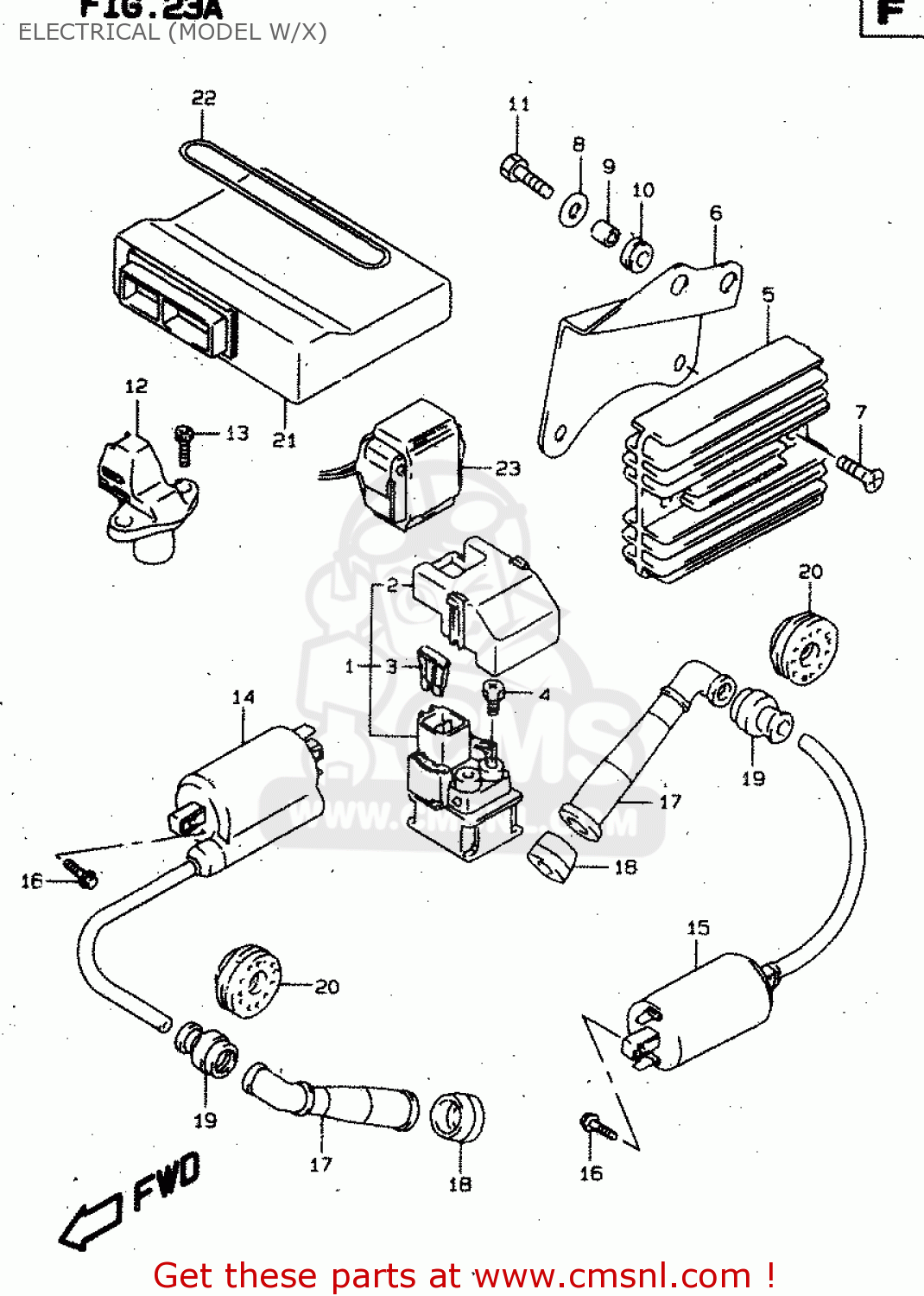

Electrical (model w/x) diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

ELECTRICAL (MODEL W/X) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

ELECTRICAL (MODEL W/X) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3180021E20
ref: 1

RELAY ASSY,STARTING MOTOR

€ 69.00

2

3186121E20
ref: 2

COVER,RELAY ASSEMBLY

€ 10.50

3

0948130101
ref: 3

FUSE(30A)

€ 6.00

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280002F00
ref: 5

RECTIFIER ASSY

€ 368.00

6

3283102F00
ref: 6

BRACKET,RECT FTG

€ 9.50

7

0913606093
ref: 7

SCREW (6X20)

€ 2.00

8

0916006084
ref: 8
6.5X18X1.60, <-09160

WASHER(6.5X18X1.6)

€ 2.00

9

0918006258
ref: 9
6.5X9X6.70

SPACER(6.5X9X6.7)

€ 3.00

10

0932009036
ref: 10

CUSHION

€ 4.00

11

0156006253
ref: 11

BOLT

€ 2.00

12

3216002F00
ref: 12

SENSOR ASSY,CAM POSITION

€ 127.50

13

0211206163
ref: 13

SCREW 6X16

€ 2.00

14

3341048E00
ref: 14

COIL ASSY,IGNITION

€ 148.50

15

3342038A11
ref: 15

COIL ASSY,IGNITION

€ 150.00

16

0216205203
ref: 16

SCREW, PRESSURE SENSOR

€ 2.00

17

3351011D00
ref: 17

CAP,SPARK PLUG

€ 38.00

18

3354123E01
ref: 18

SEAL,SPARK PLUG CAP

€ 7.00

19

3354238B00
ref: 19

SEAL,HIGH TENSION CORD

€ 4.50

20

3354302F00
ref: 20

COVER,SPARK PLUG CAP

€ 22.50

21

3292002F60
ref: 21

CONTROL UNIT, EPI

€ 1,008.00

21

3292002F70
ref: 21
E4

CONTROL UNIT,EPI

€ 971.00

21

3292002F90
ref: 21
E22

CONTROL UNIT,EPI

€ 0.00

21

3292002FK0
ref: 21
E18

CONTROL UNIT, EPI

€ 1,295.50

22

3365112910
ref: 22

BAND,BATTERY

€ 6.00

23

3396002F00
ref: 23

SENSOR ASSY,FUEL CUT

€ 85.00
