WATER PUMP

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

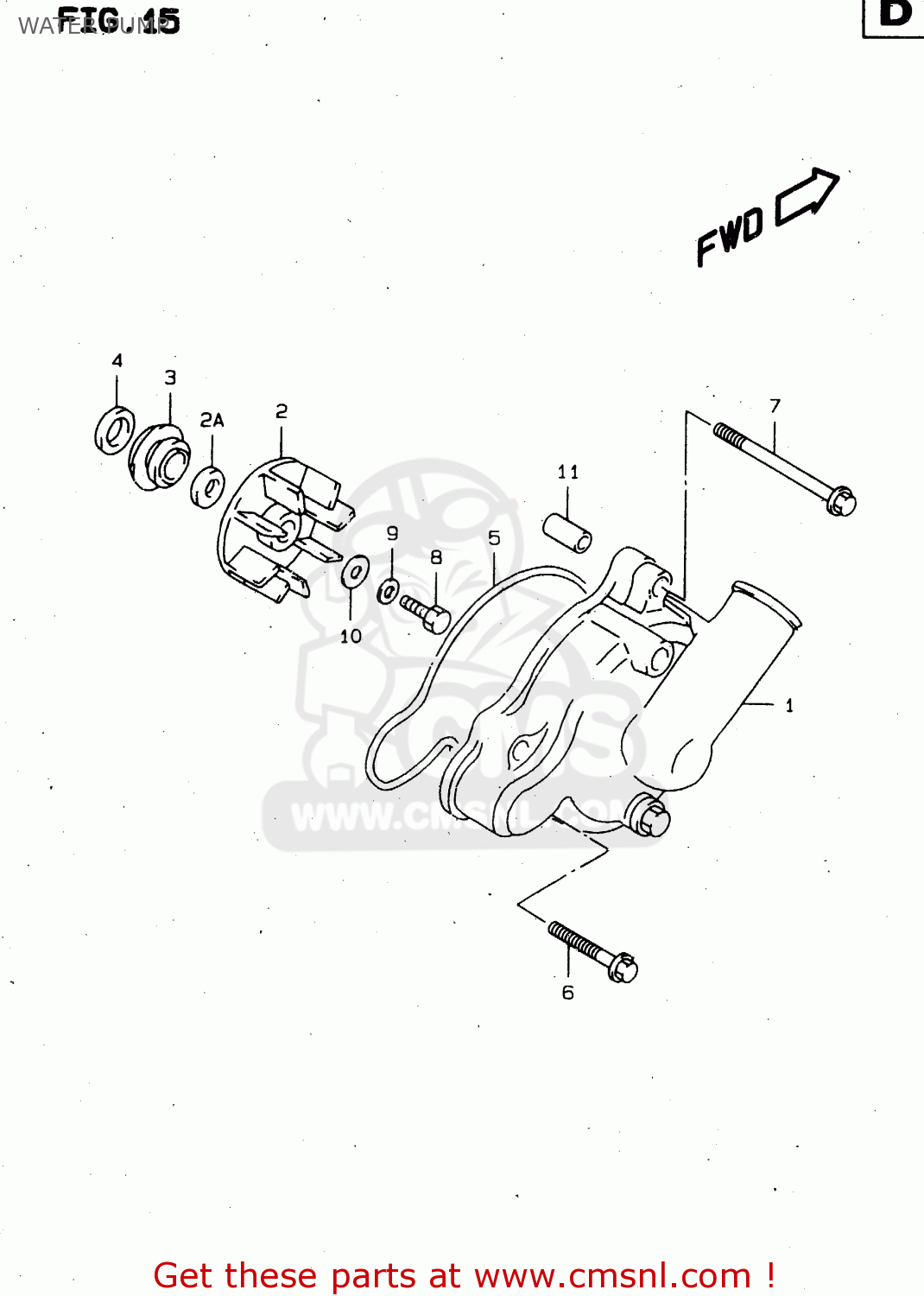

Water pump diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

WATER PUMP TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

WATER PUMP TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1741002F00
ref: 1
MODEL V, ->17410-02F

CASE COMP,WATER PUMP

€ 83.50

1

1741002F10
ref: 1
MODEL W/X

CASE,WATER PUMP

€ 89.50

2

1749102F00
ref: 2

IMPELLER,WATER PUMP

€ 22.00

2A

1753302F00
ref: 2A

WASHER,IMPELLER

€ 4.00

3

1747002F00
ref: 3
MODEL V

SEAL,MECHANICAL

€ 21.50

3

1747002F10
ref: 3
MODEL W/X

SEAL,MECHANICAL

€ 21.50

4

0928310005
ref: 4
MODEL V

SEAL,OIL(10X20X5)

€ 4.50

4

1746102F00
ref: 4
MODEL W/X

SEAL,WATER PUMP SHAFT OIL

€ 8.50

5

1743502F00
ref: 5

O RING,WATER PUMP CASE

€ 8.50

6

0154706307
ref: 6

BOLT

€ 2.50

7

0154706557
ref: 7

BOLT

€ 2.50

8

0910006099
ref: 8
MODEL V

BOLT(6X13)

€ 2.00

8

0910006162
ref: 8
MODEL W/X

BOLT(6X13)

€ 4.00

9

0916406006
ref: 9

WASHER

€ 2.50

10

0916806025
ref: 10

GASKET(6X15X2.2) (NAS)

€ 3.00

11

0421109149
ref: 11

PIN

€ 2.00
