REAR SWINGING ARM (MODEL V E18, E22, E24, E39)

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

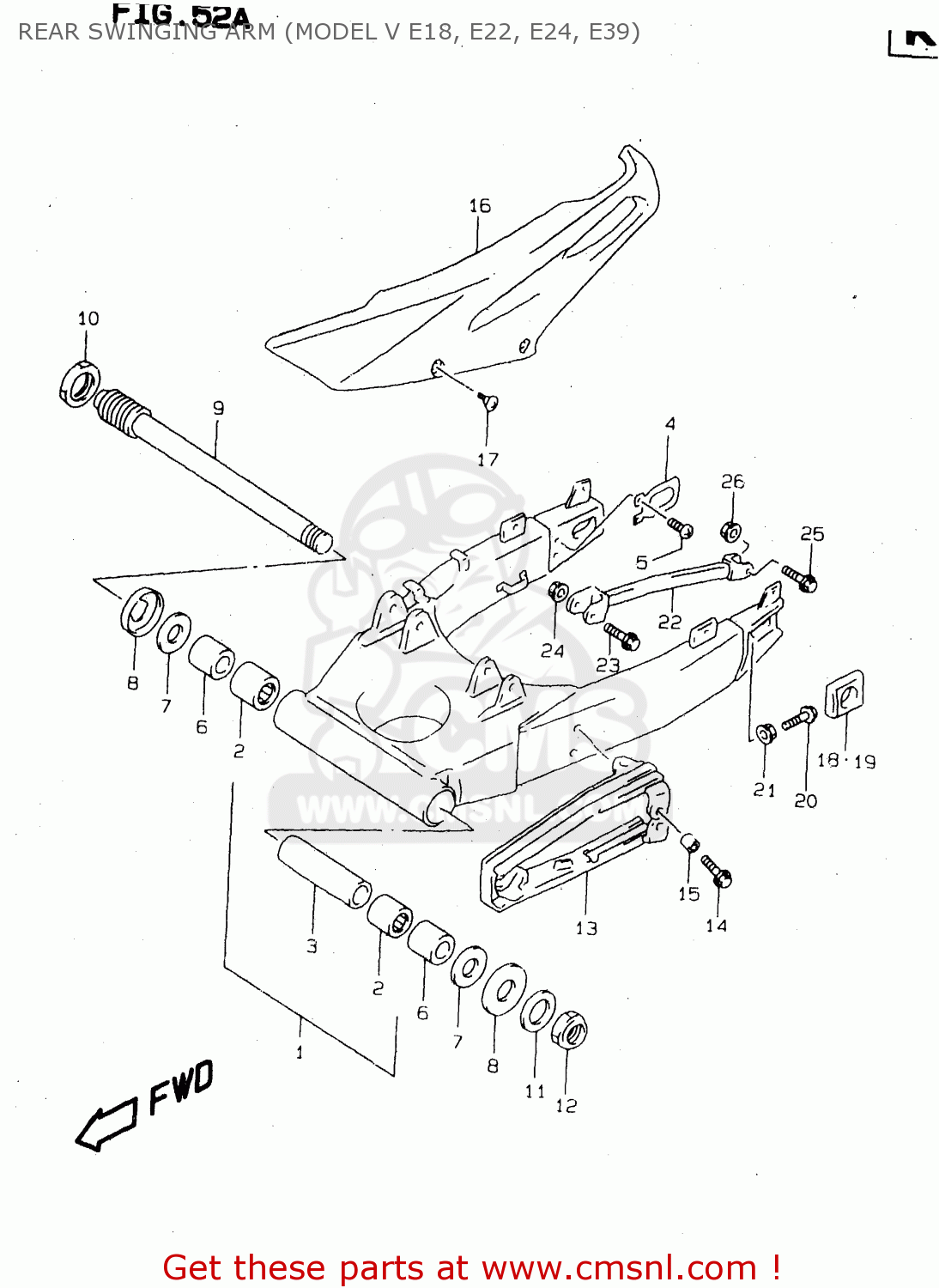

Rear swinging arm (model v e18, e22, e24, e39) diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

REAR SWINGING ARM (MODEL V E18, E22, E24, E39) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

REAR SWINGING ARM (MODEL V E18, E22, E24, E39) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

6100002F00
ref: 1

SWINGINGARM ASSY,RR

€ 1,466.00

2

0926330040
ref: 2

BEARING(30X40X25)

€ 31.50

3

6128033E00
ref: 3

SPACER COMP,REAR SWING PIVOT

€ 26.00

4

6112433E00
ref: 4

PLATE,RR SWING ARM BRKT

€ 3.50

5

0214206103
ref: 5

SCREW 6X10

€ 2.00

6

6125117E10
ref: 6

SPACER,REAR SWING ARM PIVOT

€ 7.00

7

0821125481
ref: 7

WASHER

€ 5.50

8

6126217E10
ref: 8

DUST SEAL,RR SWGARM PIVOT

€ 6.50

9

6121133E00
ref: 9

SHAFT,RR SWINGINGARM PIVOT

€ 100.00

10

6121440C30
ref: 10

NUT,REAR SWING ARM PIVOT

€ 16.50

11

0916025070
ref: 11

WASHER(25.2X42X3.2)

€ 4.50

12

0915925001
ref: 12

NUT

€ 29.00

13

6127302F00
ref: 13

BUFFER,CHAIN TOUCH DEFENSE

€ 32.50

14

0911606111
ref: 14

BOLT 6X20,WITH PLAIN WASHER

€ 2.00

15

0918006306
ref: 15

SPACER(6.5X9X5)

€ 2.00

16

6131102F00
ref: 16

CASE, CHAIN

€ 58.50

17

0913906081
ref: 17

SCREW

€ 2.00

18

6144533E00
ref: 18

ADJUSTER,CHAIN,R

€ 42.00

19

6144633E10
ref: 19

ADJUSTER,CHAIN,L

€ 42.50

20

0910008287
ref: 20

BOLT(8X50)

€ 3.00

21

0831610083
ref: 21

NUT

€ 3.00

22

6431033E00
ref: 22

TORQUELINK,RR

€ 82.00

23

0911108083
ref: 23

BOLT(8X44)

€ 6.00

24

0831931087
ref: 24

NUT

€ 2.50

25

0910310019
ref: 25

BOLT(10X37)

€ 2.50

26

0831931107
ref: 26

NUT

€ 3.00
