FRAME COVER (MODEL V)

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

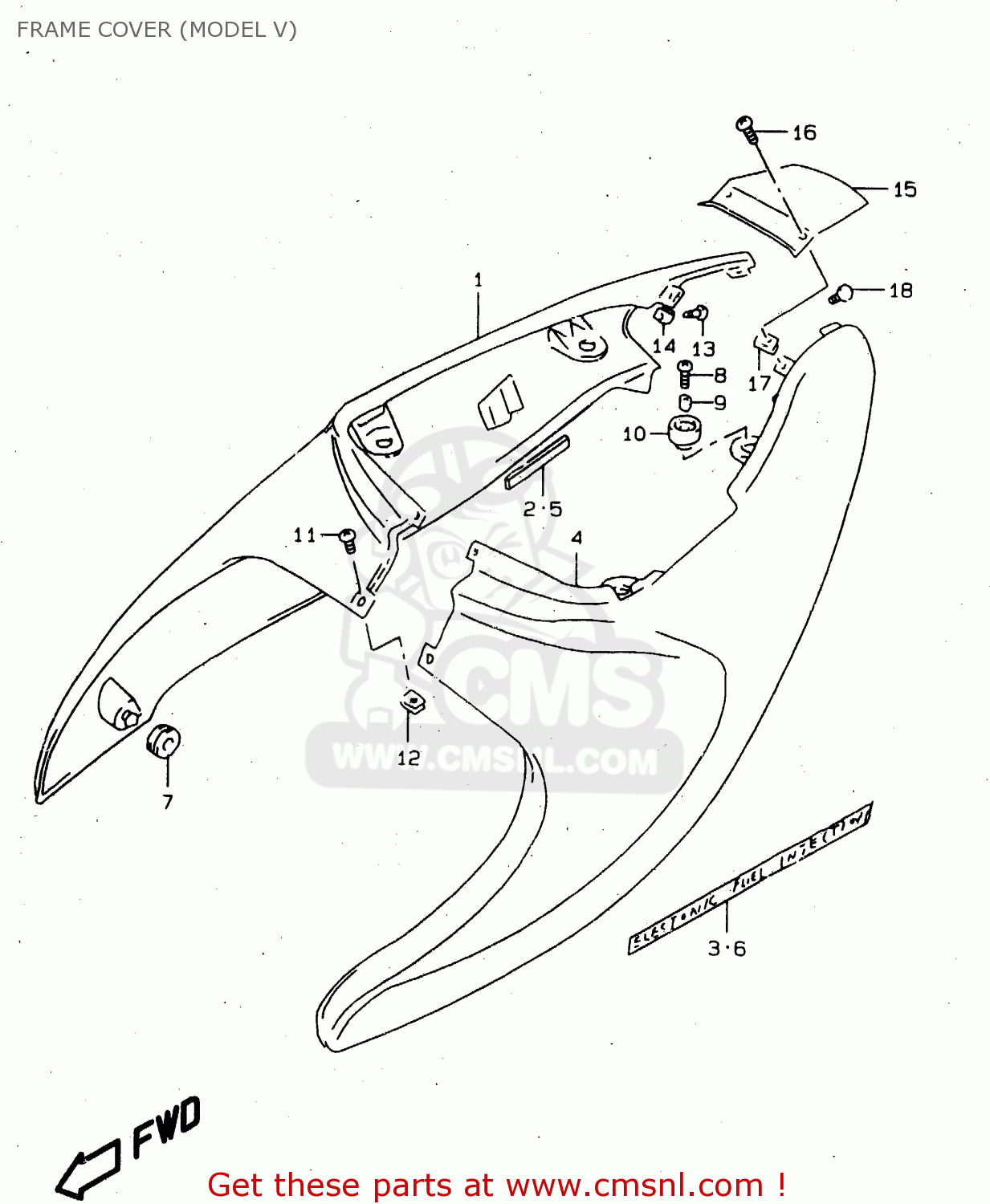

Frame cover (model v) diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

FRAME COVER (MODEL V) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

FRAME COVER (MODEL V) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4711002F0028V
ref: 1

COVER,FRAME,R(RED)

€ 146.00

1

4711002F001UH
ref: 1

COVER,FRAME,R(GREEN)

€ 135.00

1

4711002F0033J
ref: 1

COVER,FRAME,R(BLACK)

€ 132.00

2

4716102F00
ref: 2

CUSHION,FRAME COVER

€ 4.00

3

6813102F00H3Y
ref: 3
FOR 28V

EMBLEM,FRAME COVER

€ 9.00

3

6813102F00H3Z
ref: 3
FOR 1UH

EMBLEM,FRAME COVER

€ 7.00

3

6813102F003EE
ref: 3
FOR 33J

EMBLEM,FRAME COVER

€ 7.00

4

4721002F0028V
ref: 4

COVER,FRAME,L(RED)

€ 135.00

4

4721002F001UH
ref: 4

COVER,FRAME,LEFT (GREEN)

€ 134.00

4

4721002F0033J
ref: 4

COVER,FRAME,LEFT (BLACK)

€ 127.50

5

4716102F00
ref: 5

CUSHION,FRAME COVER

€ 4.00

6

6813102F00H3Y
ref: 6
FOR 28V

EMBLEM,FRAME COVER

€ 9.00

6

6813102F00H3Z
ref: 6
FOR 1UH

EMBLEM,FRAME COVER

€ 7.00

6

6813102F003EE
ref: 6
FOR 33J

EMBLEM,FRAME COVER

€ 7.00

7

0932008018
ref: 7

CUSHION

€ 4.00

8

0913606105
ref: 8

SCREW(6X20)

€ 2.00

9

0918006286
ref: 9

SPACER(6.5X10X9.4)

€ 2.50

10

0932010045
ref: 10

CUSHION

€ 3.50

11

0324105123
ref: 11

SCREW L:12

€ 1.50

12

0914805038
ref: 12

NUT

€ 2.50

13

0913605034
ref: 13

SCREW(5X16)

€ 2.00

14

0914805038
ref: 14

NUT

€ 2.50

15

4731102F0028V
ref: 15

COVER,FRAME CTR

€ 34.00

15

4731102F001UH
ref: 15

COVER,FRAME,CENTER

€ 35.50

15

4731102F0033J
ref: 15

COVER,FRAME CTR

€ 28.50

16

0354115123
ref: 16

SCREW

€ 2.50

17

0914805038
ref: 17

NUT

€ 2.50

18

4712902F00
ref: 18

CUSHION

€ 7.50

all assemblies
