STEERING DAMPER (MODEL W/X)

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

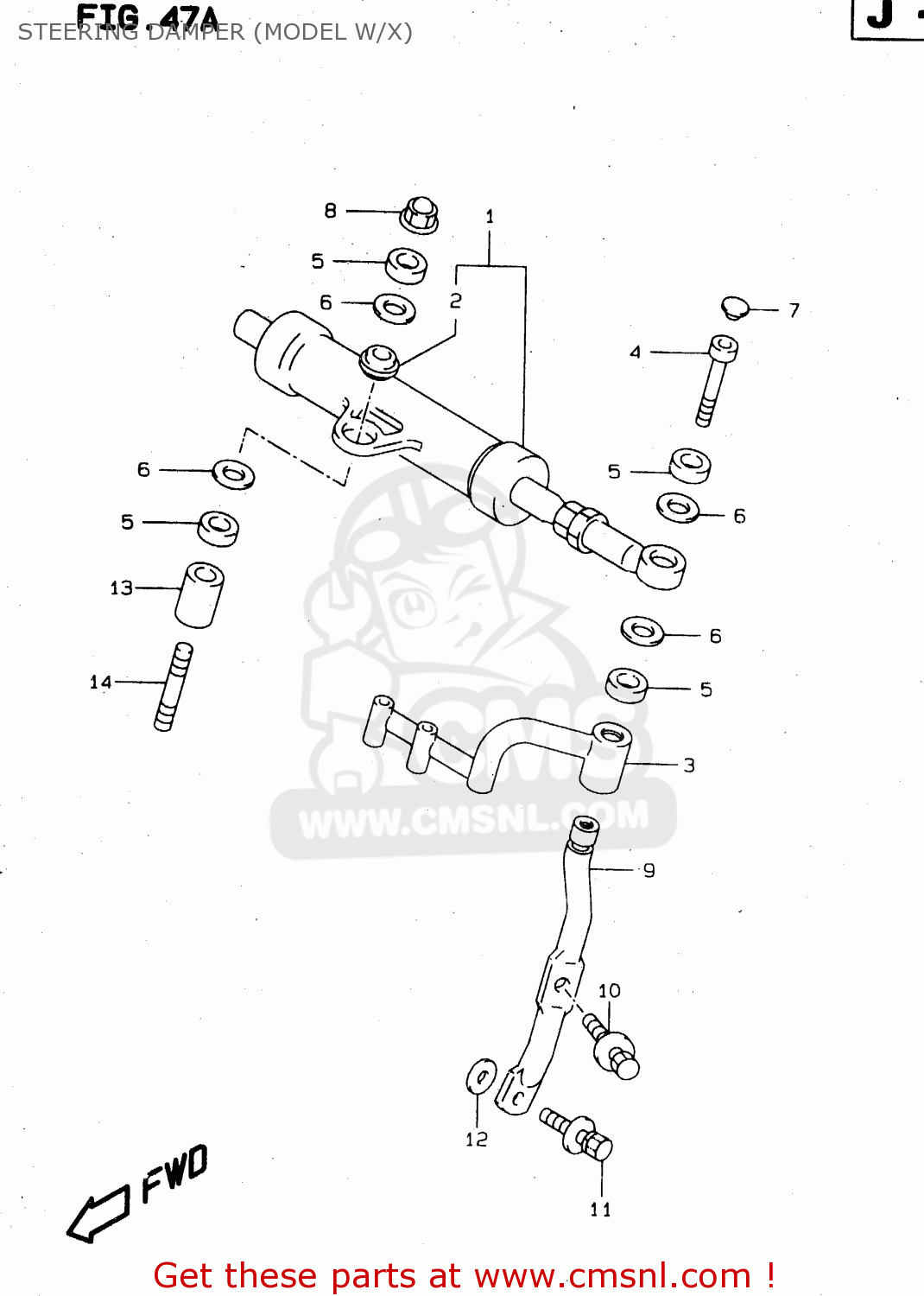

Steering damper (model w/x) diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

5175002F10
ref: 1

DAMPER ASSY, STEERING

€ 684.00

0926908003
ref: 2

BEARING(8X17.5X11)

€ 39.50

5171002F10
ref: 3

STAY,STEERING DAMPER

€ 65.50

0713008507
ref: 4

BOLT

€ 3.00

6433940410
ref: 5

6433940410

0918108106
ref: 6

SHIM(8X12X0.8)

€ 3.00

0925006011
ref: 7

CAP(OD:11)

€ 2.50

0831320087
ref: 8

NUT

€ 2.50

5172002F10
ref: 9

ROD,STEERING DAMPER

€ 50.00

0911606171
ref: 10

BOLT(6X30)

€ 2.50

5173502F00
ref: 11

BOLT,STAY,LOWER 6X35

€ 4.50

0916006088
ref: 12

WASHER(6.5X20X1.6)

€ 2.00

5172202F10
ref: 13

SPACER,STEERING DAMPER

€ 10.50

0910808167
ref: 14

BOLT,STUD(8X50)

€ 4.00
