CLUTCH (MODEL X)

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

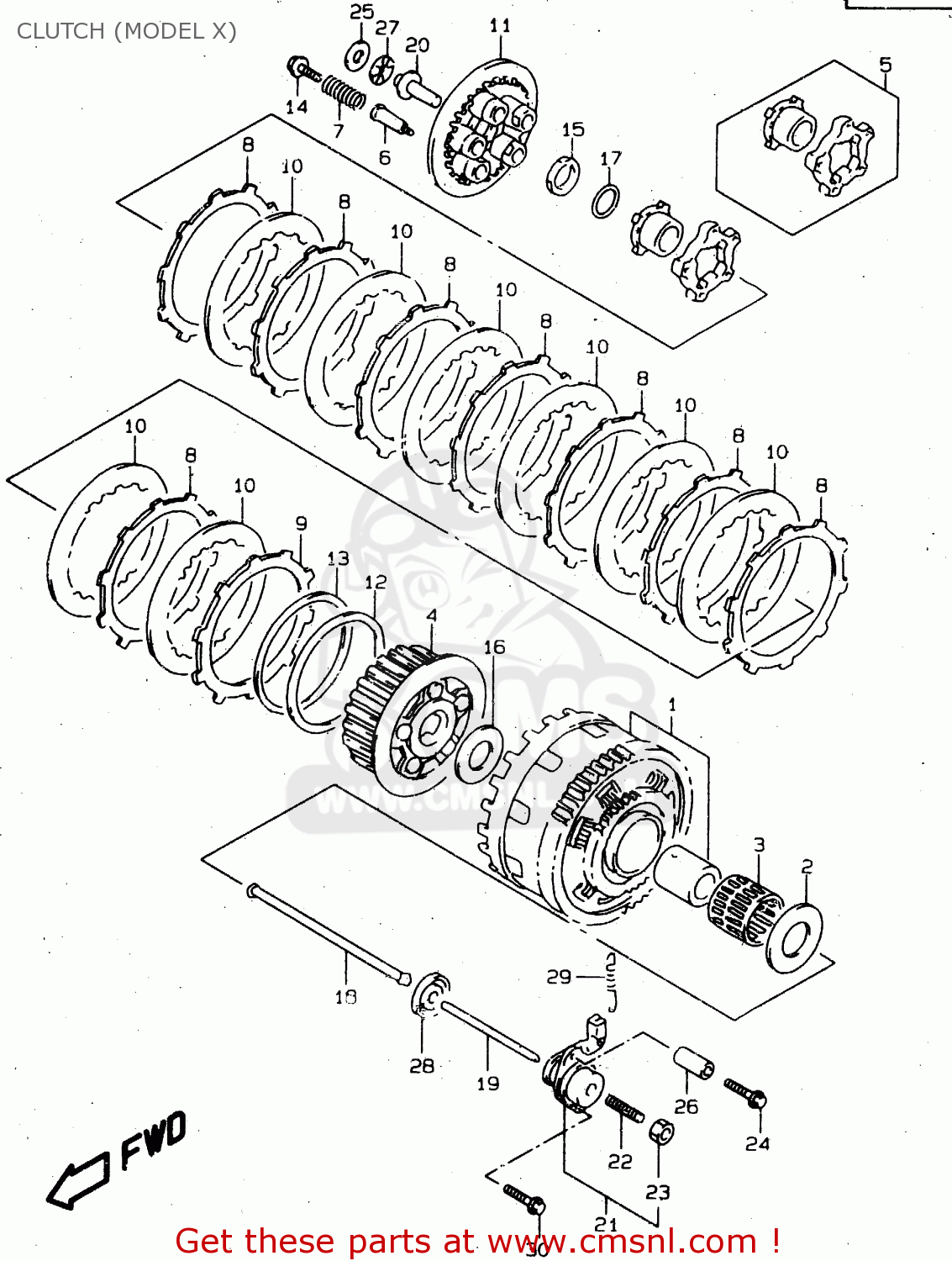

Clutch (model x) diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

CLUTCH (MODEL X) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

CLUTCH (MODEL X) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

2120002820
ref: 1

GEAR ASSY,PRI DRIVEN

€ 382.50

2

0916025071
ref: 2

WASHER(25X54X2.5)

€ 9.00

3

0926335017
ref: 3

BEARING(35X40X35.8)

€ 36.50

4

2141002F10
ref: 4

HUB,CLUTCH SLEEVE

€ 145.50

5

2161002F12
ref: 5

CAM SET,CLUTCH

€ 174.00

6

2148102F10
ref: 6

BOLT,SPRING SUPPORT

€ 9.50

7

2141302F10
ref: 7

SPRING,CLUTCH

€ 7.50

8

2144102F10
ref: 8

PLATE,CLUTCH DRIVE (NAS)

€ 20.00

9

2144202F10
ref: 9

PLATE,CLUTCH DRIVE NO (NAS)

€ 20.00

10

2145102F10
ref: 10

PLATE,CLUTCH DRIVEN (NAS)

€ 9.00

11

2146202F10
ref: 11

DISC,CLUTCH PRESSURE

€ 58.00

12

2147102F10
ref: 12

SEAT,WAVE WASHER

€ 16.50

13

2147202F10
ref: 13

WASHER,CLUTCH PLATE WAVE

€ 18.00

14

2148202F10
ref: 14

BOLT,CLUTCH SPRING

€ 3.50

15

0915924010
ref: 15

NUT

€ 11.00

16

0916025072
ref: 16
25X50X2.5

WASHER(25X50X2.5)

€ 9.00

17

0916424006
ref: 17
24.2X35X2

WASHER

€ 4.00

18

2311038B00
ref: 18

ROD,CLUTCH PUSH,R

€ 19.00

19

2311105A01
ref: 19

ROD,CLUTCH PUSH

€ 13.50

20

2312138B00
ref: 20

PIECE,CLUTCH PUSH

€ 25.00

21

2320015500
ref: 21

SCREW ASSY,CLUTCH RELEASE

€ 46.50

22

0913406010
ref: 22

SCREW(6X25)

€ 3.00

23

0831000067
ref: 23

NUT

€ 2.50

24

0910306197
ref: 24

BOLT

€ 3.50

25

0916015045
ref: 25
15.5X28X1

WASHER(15.5X28X1)

€ 4.00

26

0918006322
ref: 26

SPACER(6.2X12X50)

€ 6.00

27

0926315003
ref: 27
15X28X2

BEARING(15X28X2)

€ 7.00

28

0928506015
ref: 28
6X34X5.5

SEAL,OIL(6X34X5.5)

€ 8.50

29

0944308047
ref: 29

SPRING

€ 3.50

30

0155006603
ref: 30

BOLT

€ 2.50
