OIL COOLER

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

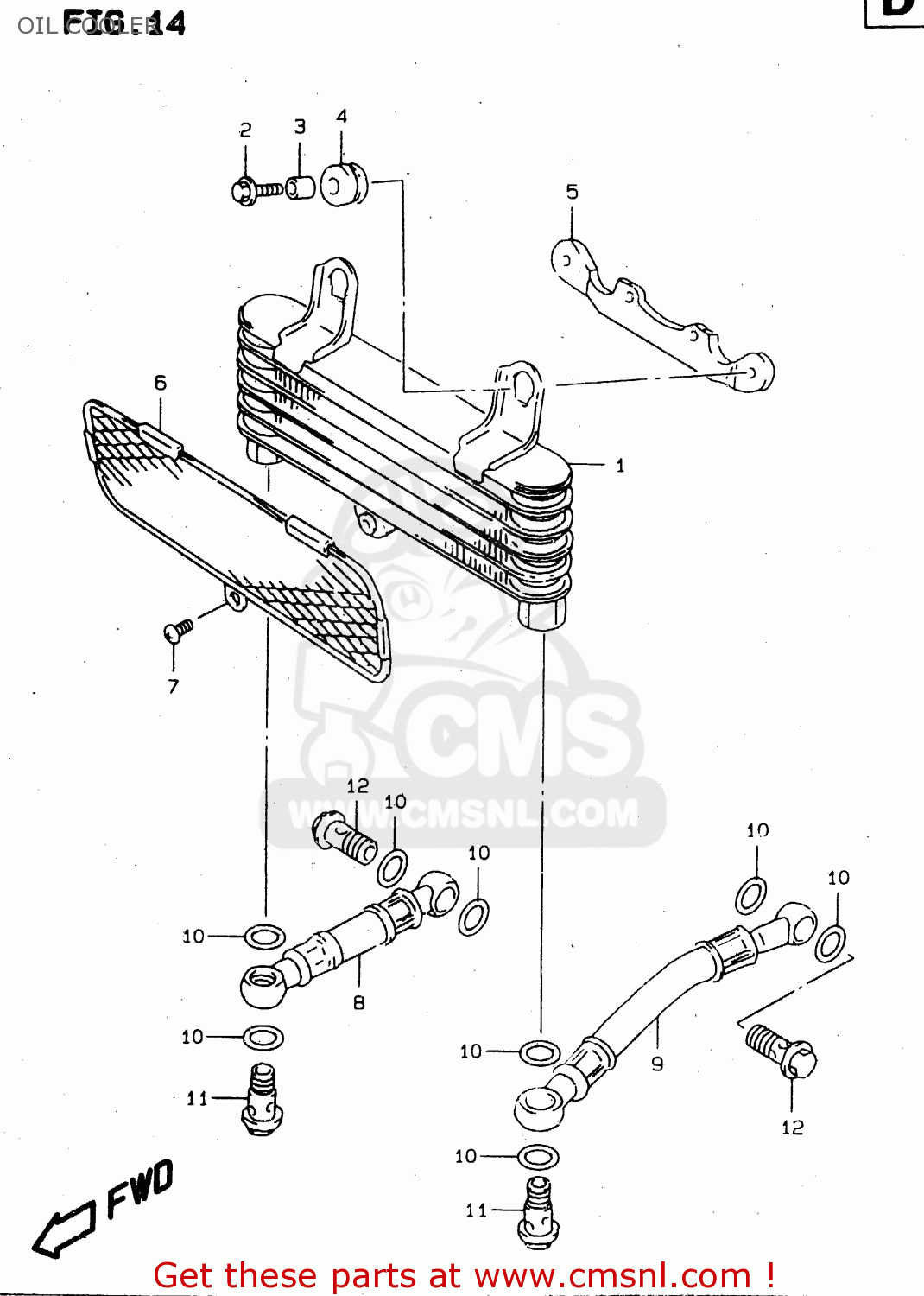

Oil cooler diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1660002F00
ref: 1

COOLER ASSEMBLY,OIL

€ 938.00

0911606143
ref: 2

BOLT 6X20

€ 2.00

0918006310
ref: 3

SPACER(6.5X10X10)

€ 2.00

0932010015
ref: 4

CUSHION

€ 2.50

1662002F00
ref: 5

BRACKET,OIL COOLER

€ 10.50

1665002F00
ref: 6

GUARD,OIL COOLER

€ 38.50

0214205103
ref: 7

SCREW

€ 2.50

1646002F00
ref: 8

HOSE,OIL COOLER,R

€ 106.00

1647002F00
ref: 9

HOSE COMP,OIL COOLER,LEFT

€ 100.00

0916814011
ref: 10

GASKET(14X20X1.5) (NAS)

€ 2.00

0936012006
ref: 11

BOLT UNION

€ 13.50

0936014012
ref: 12

BOLT UNION

€ 10.00
