THROTTLE BODY (MODEL W/X)

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

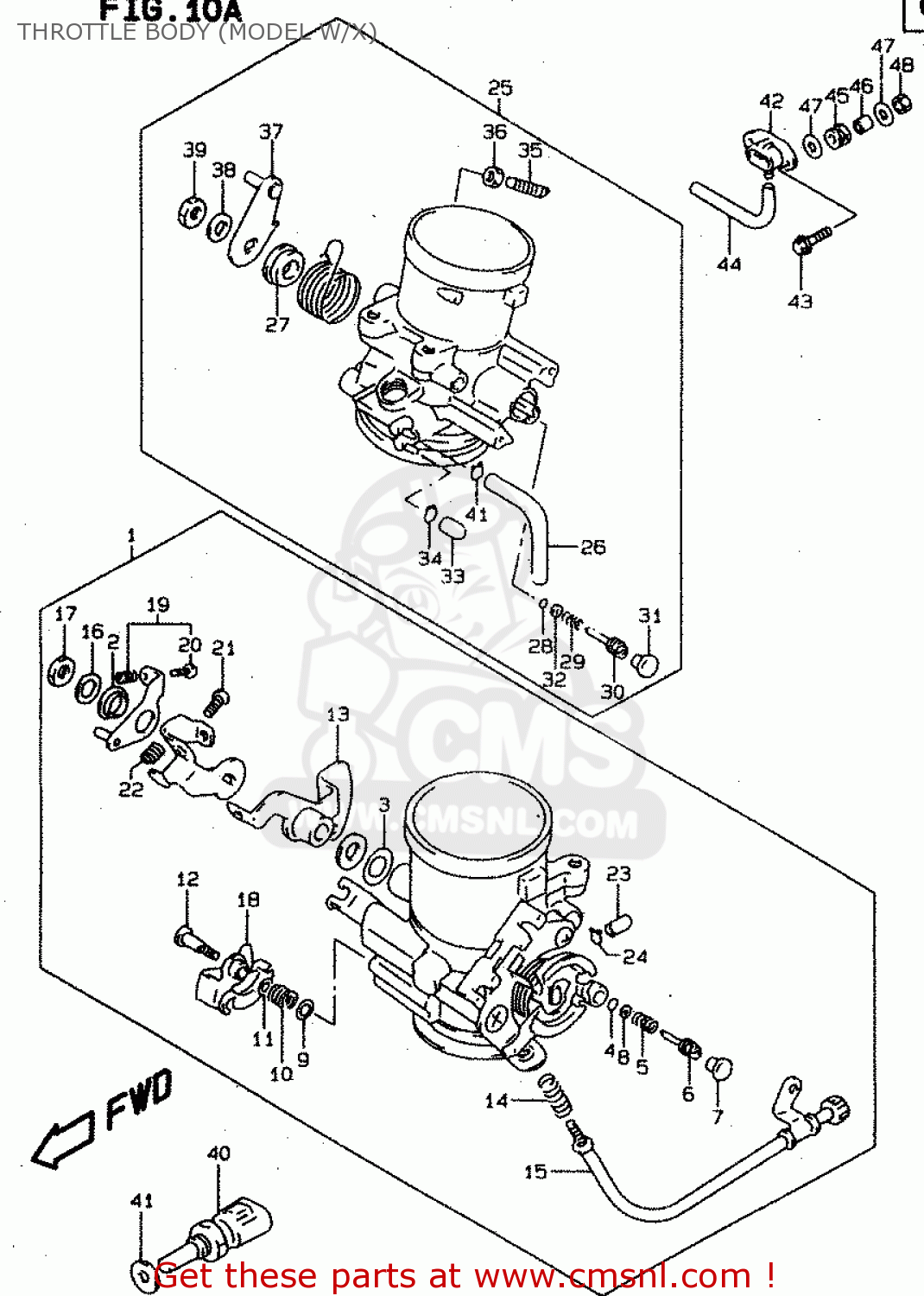

Throttle body (model w/x) diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

THROTTLE BODY (MODEL W/X) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)
THROTTLE BODY (MODEL W/X) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)
THROTTLE BODY (MODEL W/X) TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
1340102F40
ref: 1
BODY ASSY,THROTTLE FR
€ 676.50
1
1340102F50
ref: 1
E18, E22
BODY ASSY,THROTTLE FR
€ 0.00
2
9556982140
ref: 2
RING
9556982140
€ 5.50
3
1355602F00
ref: 3
PACKING (NAS)
€ 2.50
4
1329529900
ref: 4
O RING,PILOT AIR SCREW
1329529900
€ 4.00
5
1349409410
ref: 5
SPRING
1349409410
€ 3.00
6
1326916700
ref: 6
SCREW,AIR
1326916700
€ 9.50
7
1335736A00
ref: 7
PLUG
1335736A00
€ 4.50
8
1360647A00
ref: 8
WASHER
1360647A00
€ 2.00
9
1360638800
ref: 9
WASHER
€ 2.50
10
1342602F00
ref: 10
SPRING
1342602F00
€ 5.00
11
1342402F00
ref: 11
RING
€ 4.50
12
1354820E20
ref: 12
SCREW
€ 3.00
13
1354102F00
ref: 13
LEVER ASSY
€ 73.50
14
1327193011
ref: 14
SPRING
1327193011
€ 4.50
15
1327002F00
ref: 15
ADJUSTER ASSY
1327002F00
€ 66.50
16
9555982140
ref: 16
WASHER
9555982140
€ 2.00
17
1360737010
ref: 17
NUT
€ 2.00
18
1342102F00
ref: 18
LEVER ASSEMBLY
€ 21.00
19
1360160AT0
ref: 19
SCREW SET,ADJUST
€ 4.50
20
0211204203
ref: 20
SCREW
0211204203
€ 1.00
21
1360242E10
ref: 21
SCREW
€ 3.00
22
1337560A00
ref: 22
SPRING
1337560A00
€ 4.00
23
1327484000
ref: 23
E2, E4, E24, E25, E3
CAP
1327484000
€ 5.50
24
0940106101
ref: 24
E2, E4, E24, E25, E3
CLIP
0940106101
€ 2.50
25
1340202F40
ref: 25
BODY ASSY,THROTTLE RR
€ 704.00
25
1340202F50
ref: 25
E18, E22
BODY ASSY,THROTTLE RR
€ 671.50
26
1368302F00
ref: 26
HOSE
€ 11.00
27
1361502F00
ref: 27
RING
€ 5.50
28
1329529900
ref: 28
O RING,PILOT AIR SCREW
1329529900
€ 4.00
29
1349409410
ref: 29
SPRING
1349409410
€ 3.00
30
1326916700
ref: 30
SCREW,AIR
1326916700
€ 9.50
31
1335736A00
ref: 31
PLUG
1335736A00
€ 4.50
32
1360647A00
ref: 32
WASHER
1360647A00
€ 2.00
33
1327484000
ref: 33
CAP
1327484000
€ 5.50
34
0940106101
ref: 34
CLIP
0940106101
€ 2.50
35
1326702F00
ref: 35
SCREW
€ 7.00
36
1360747070
ref: 36
NUT
1360747070
€ 4.00
37
1354202F00
ref: 37
LEVER ASSY
€ 9.50
38
9555982140
ref: 38
WASHER
9555982140
€ 2.00
39
1360737010
ref: 39
NUT
€ 2.00
40
1365051G10
ref: 40
SENSOR,WATER TEMP
1365051G10
€ 101.50
41
0916812016
ref: 41
GASKET(12.2X21X0.8) (NAS)
0916812016
€ 2.50
42
1859080C50
ref: 42
SENSOR,MAP
1859080C50
€ 365.50
43
0155006253
ref: 43
BOLT
0155006253
€ 2.50
44
0935540805600
ref: 44
L:600->150
HOSE(4X8X600)
0935540805600
€ 9.00
45
0932010501
ref: 45
CUSHION
0932010501
€ 5.50
46
0918006310
ref: 46
SPACER(6.5X10X10)
0918006310
€ 2.00
47
0916006077
ref: 47
WASHER(6.5X20X1.2)
0916006077
€ 2.00
48
0831610063
ref: 48
NUT
0831610063
€ 2.50
