STARTING MOTOR

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

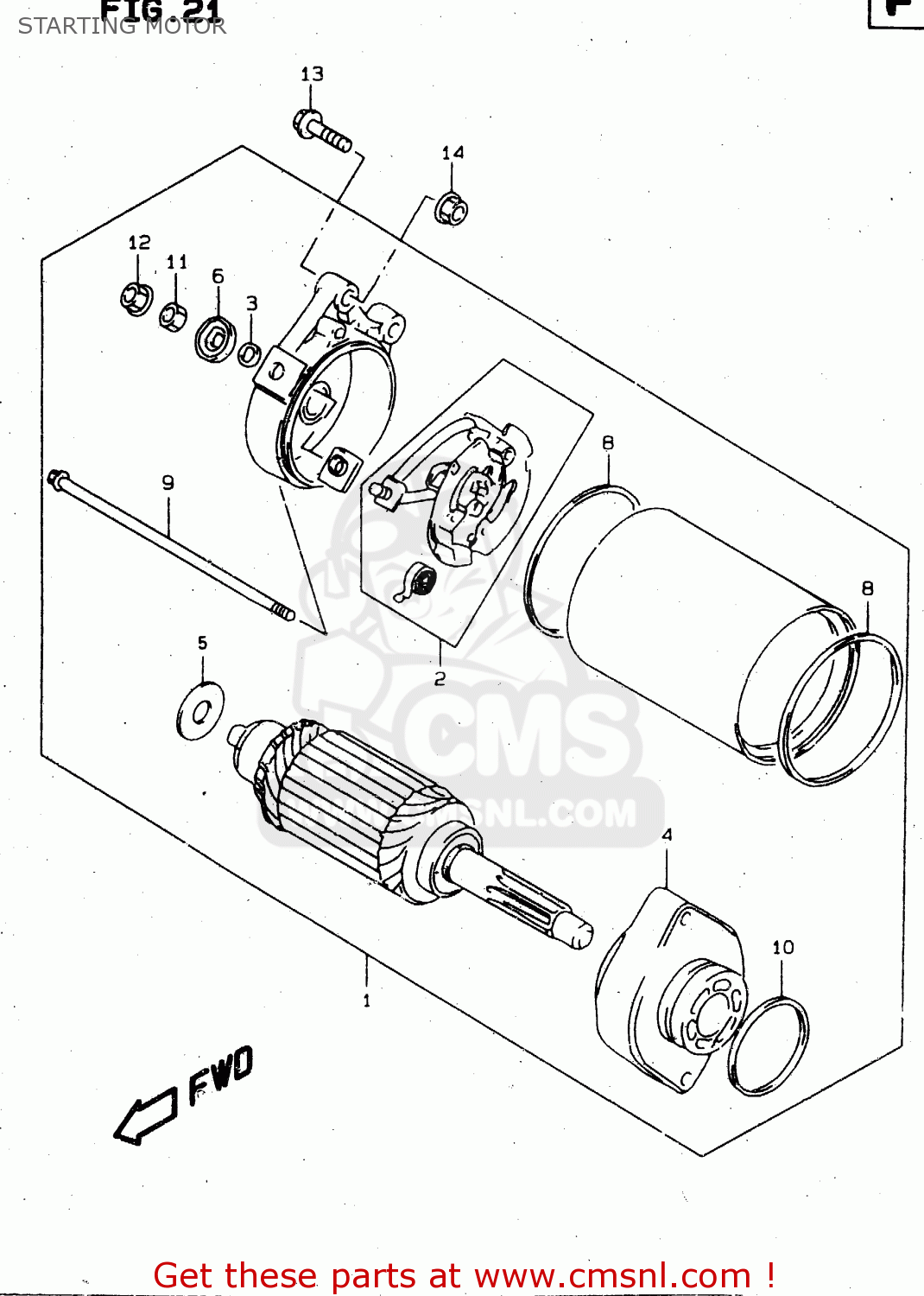

Starting motor diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

3110002F00
ref: 1
MODEL V/W

MOTOR ASSEMBLY,STARTING

€ 704.50

3110002F10
ref: 1
MODEL X

MOTOR ASSY,STARTING

€ 704.50

3113245C00
ref: 2

HOLDER SET,BRUSH

€ 46.00

3114338300
ref: 3

O RING

€ 3.50

3115044B00
ref: 4

BRACKET SET

€ 98.50

3117043400
ref: 5

SHIM SET,STARTING MOTOR

€ 3.50

3117238300
ref: 6

BUSHING

€ 4.00

3117388C00
ref: 7

BUSHING

€ 6.00

3126444110
ref: 8

O RING

€ 8.00

3128124B10
ref: 9

BOLT

€ 5.00

0928035005A
ref: 10
<-09280-35003

O-RING (D:2.1 ID:34.7)

€ 9.50

0831000067
ref: 11

NUT

€ 2.50

0836135068
ref: 12

NUT

€ 2.00

0154706257
ref: 13

BOLT

€ 2.50

0836135068
ref: 14

NUT

€ 2.00
