REAR CUSHION LEVER

TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

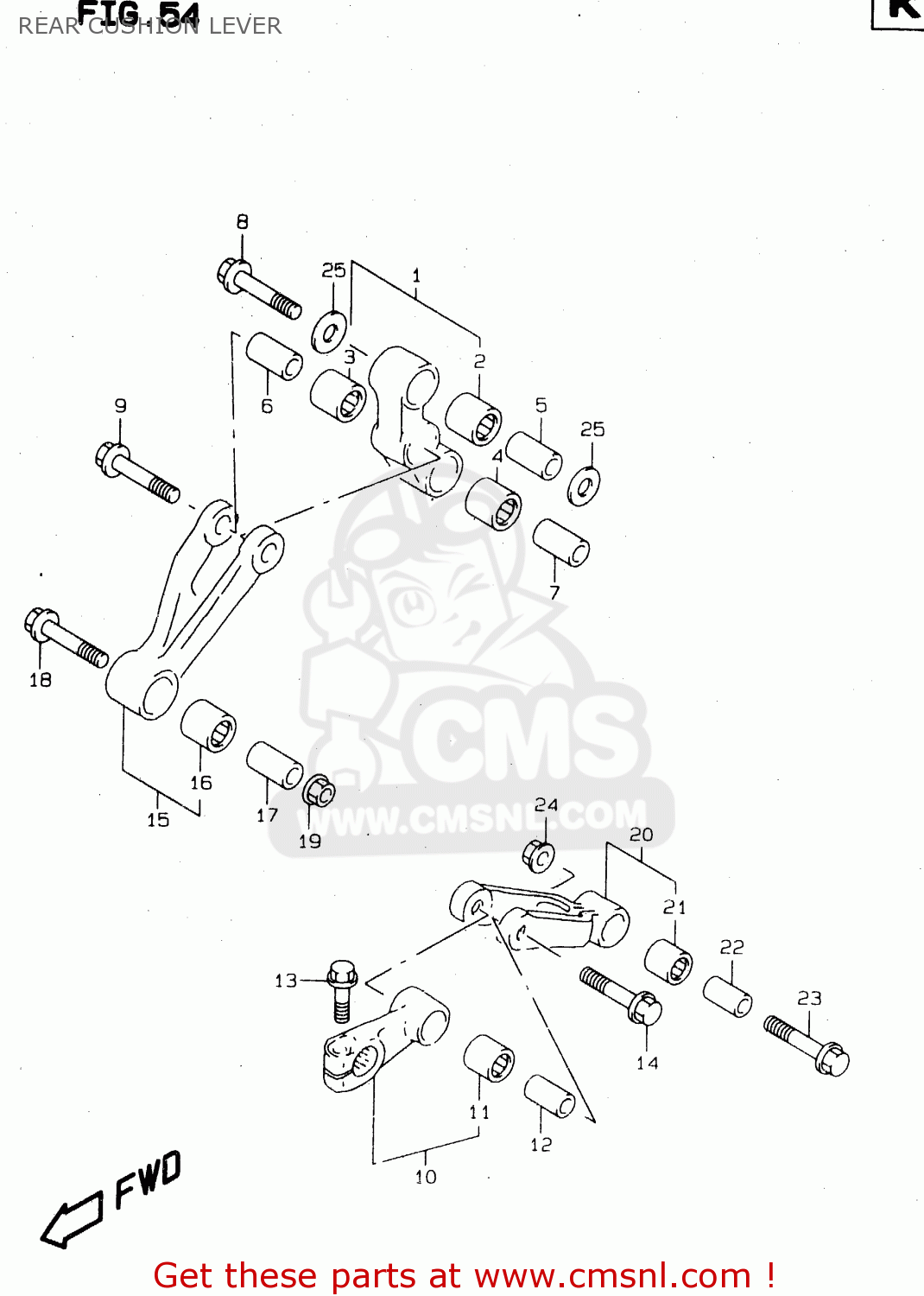

Rear cushion lever diagram TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

REAR CUSHION LEVER TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

REAR CUSHION LEVER TL1000S 1999 (X) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

6260002810
ref: 1

LEVER SET,REAR CUSHION

€ 311.00

2

0926320073
ref: 2

BEARING(20X27X30)

€ 24.50

3

0926320074
ref: 3

BEARING(20X27X32)

€ 25.00

4

0926317039
ref: 4

BEARING(17X24X20)

€ 18.00

5

6231727C10
ref: 5

SPACER,RR CUSHION LEVER FR

€ 9.00

6

6231727C10
ref: 6

SPACER,RR CUSHION LEVER FR

€ 9.00

7

6268402F00
ref: 7

SPACER,RR CUSHION LEVER RR

€ 12.50

8

6265801C60
ref: 8

BOLT,RR CUSHION LEVER FR

€ 6.00

9

6266842A02
ref: 9

BOLT,CUSHION LEVER FR

€ 7.00

10

6260002860
ref: 10

ARM SET,REAR CUSHION

€ 126.00

11

0926314025
ref: 11

BEARING(14X20X25)

€ 25.50

12

6264602F00
ref: 12

SPACER,RR CUSH ARM

€ 10.00

13

0910308042
ref: 13

BOLT(8X31)

€ 6.50

14

6264814500
ref: 14

BOLT,RR CUSHION ROD UPR

€ 3.00

15

6265002810
ref: 15

ROD SET,REAR CUSHION,RIGHT

€ 184.00

16

0926320074
ref: 16

BEARING(20X27X32)

€ 25.00

17

6231727C10
ref: 17

SPACER,RR CUSHION LEVER FR

€ 9.00

18

6266827A00
ref: 18

BOLT,RR CUSHION LEVER FR

€ 13.50

19

0831931128
ref: 19

NUT 12MM

€ 4.00

20

6264002810
ref: 20

ROD SET,RR CUSHION,L

€ 175.00

21

0926314025
ref: 21

BEARING(14X20X25)

€ 25.50

22

6264602F00
ref: 22

SPACER,RR CUSH ARM

€ 10.00

23

6231114501
ref: 23

BOLT,REAR SHOCK ABSORBER

€ 3.50

24

0831931107
ref: 24

NUT

€ 3.00

25

0918120186
ref: 25

SHIM(20X30X0.5)

€ 3.00
