AIR CLEANER

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

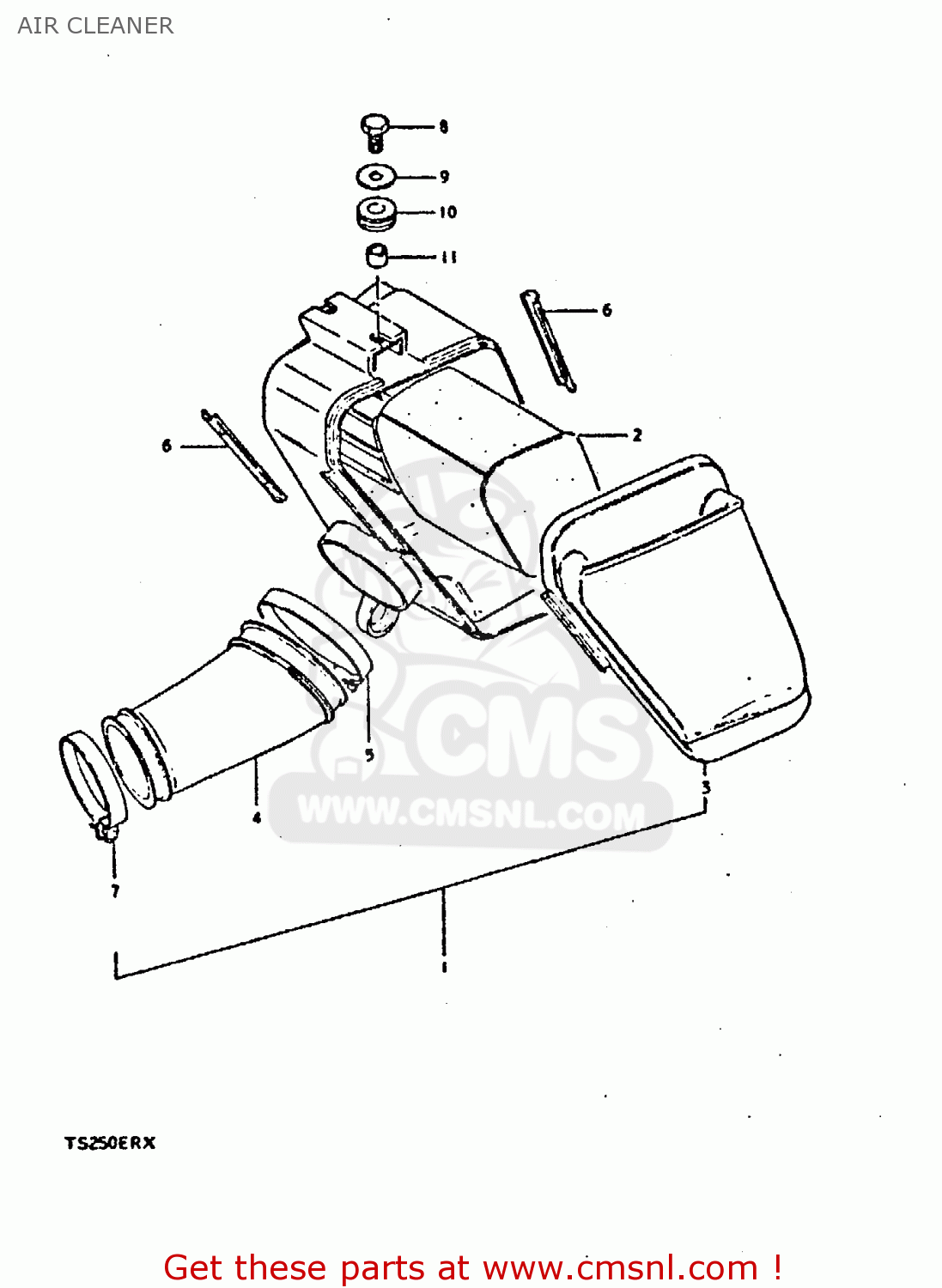

Air cleaner diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

prices are in EUR

ref

part #

description

quantity

1370030900
ref: 1

CLEANER ASSEMBLY,AIR

€ 76.50

1378130900
ref: 2

FILTER

€ 22.00

1374030900
ref: 3

CAP,AIR CLEANER

€ 23.50

1388230900
ref: 4

OUTLET

€ 18.00

0940270202
ref: 5

CLAMP

€ 5.00

1382100010
ref: 6

SLIDER

€ 3.50

0940256306
ref: 7

CLAMP

€ 3.50

0110706168
ref: 8

BOLT, UPPER

€ 3.00

0916006027
ref: 9

WASHER (6.5X20X1.2)

€ 2.00

0932008007
ref: 10

CUSHION

€ 4.00

0918007005
ref: 11

SPACER (7X9X7)

€ 2.50
