STAND - FOOTREST (E22)

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

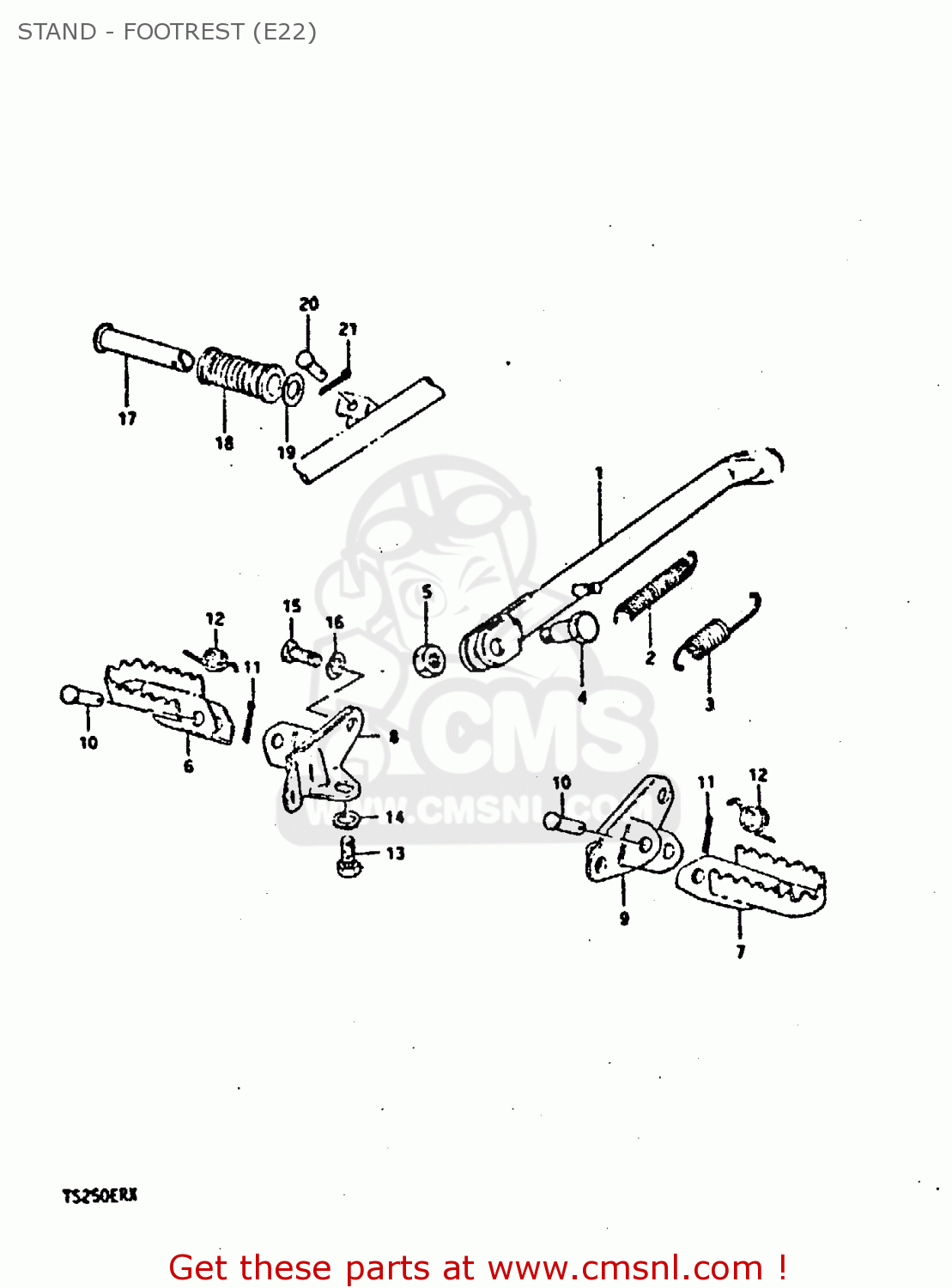

Stand - footrest (e22) diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

prices are in EUR

ref

part #

description

quantity

4231048520
ref: 1

STAND, PROP

€ 106.50

0944314014
ref: 2

SPRING

€ 5.50

0944322001
ref: 3

SPRING, OUTER

€ 4.50

0911110013
ref: 4

BOLT

€ 4.50

0831022108
ref: 5

NUT

€ 2.50

4351030501
ref: 6

HOLDER,FRONT FOOTREST,RIGHT

€ 26.50

4352030501
ref: 7

HOLDER,FRONT FOOTREST

€ 0.00

4355041102
ref: 8

FOOTREST,FRONT

€ 30.50

4356041102
ref: 9

FOOTREST

€ 31.50

0920010008
ref: 10

PIN

€ 3.00

0411120208
ref: 11

PIN 20X20

€ 1.50

0944815004
ref: 12

SPRING

€ 2.50

0110708168
ref: 13

BOLT

€ 2.00

0832121088
ref: 14

LOCK WASHER

€ 2.00

0910008135
ref: 15

BOLT 8X16

€ 3.00

0832131088
ref: 16

WASHER,LOCK,8.

€ 2.00

4361003001
ref: 17

BAR,FOOTREST RUBBER

€ 5.50

4361203001
ref: 18

RUBBER,PILLION FOOTREST

€ 3.50

0916019006
ref: 19

WASHER (19.5X32X2)

€ 2.00

0920006010
ref: 20

PIN

€ 2.50

0411120208
ref: 21

PIN 20X20

€ 1.50
