CRANKCASE COVER

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

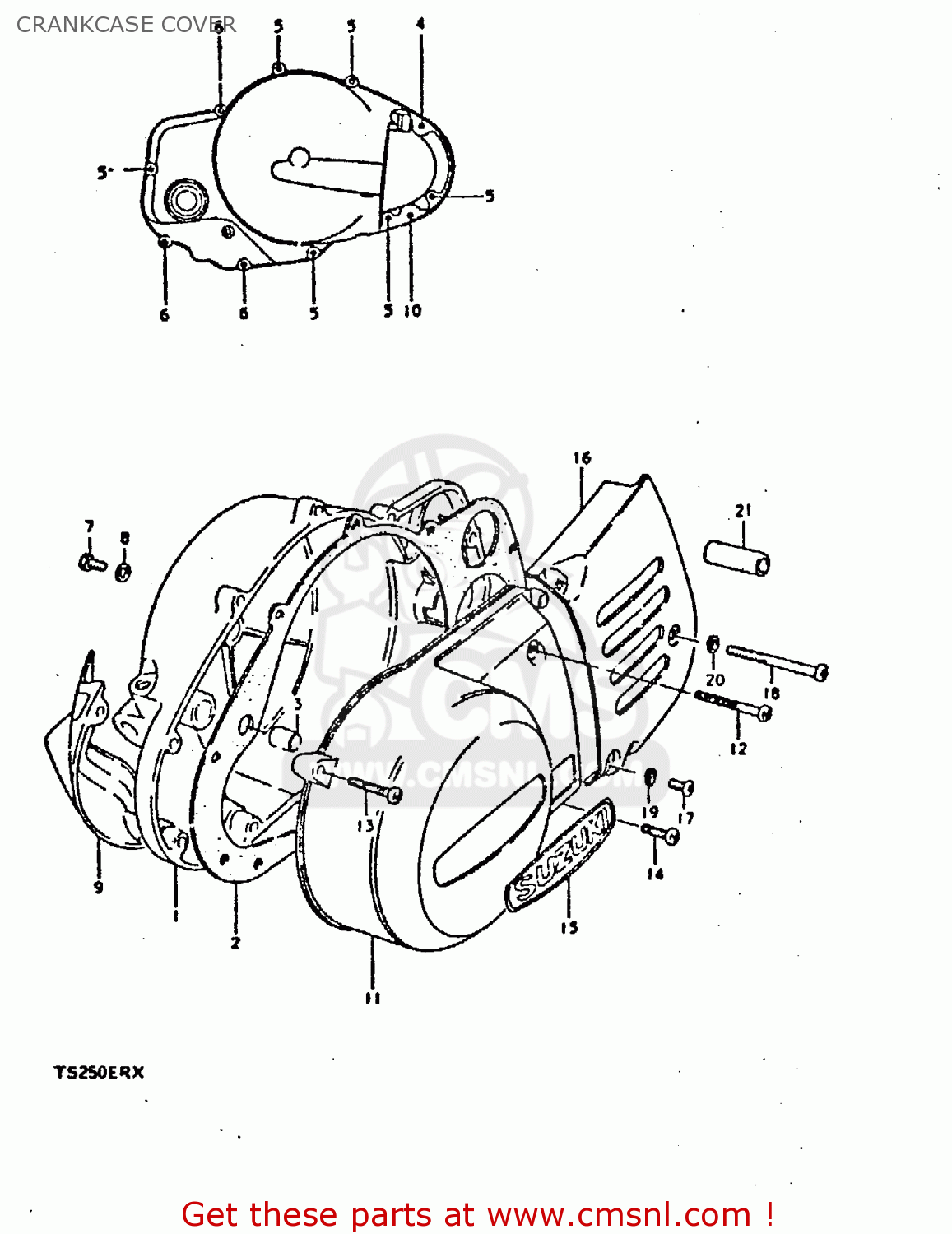

Crankcase cover diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

prices are in EUR

ref

part #

description

quantity

1134130501
ref: 1

COVER,CLUTCH

€ 217.00

1148230500
ref: 2

GASKET,CLUTCH COVER (MCA)

€ 15.50

0920613001
ref: 3

PIN

€ 2.50

0211206308
ref: 4

SCREW 6X30

€ 2.50

0211206258
ref: 5

SCREW

€ 2.00

0211206208
ref: 6

SCREW

€ 2.00

0912806004
ref: 7

SCREW(6X10)

€ 1.50

0916806001
ref: 8

GASKET(6.2X11X1) (NAS)

€ 1.50

1145130501
ref: 9

COVER,CLUTCH RELEASE A

€ 27.00

0211206165
ref: 10

SCREW

€ 2.00

1135130501
ref: 11

COVER,MAGNETO

€ 187.00

0211206358
ref: 12

SCREW (6X35)

€ 2.50

0211206258
ref: 13

SCREW

€ 2.00

0211206208
ref: 14

SCREW

€ 2.00

6823328000
ref: 15

EMBLEM,MAGNETO COVER

€ 9.50

16-1

1136030500
ref: 16-1
MODEL T, TO 11360-30

COVER,SPROCKET

€ 36.50

16-2

1136030501
ref: 16-2
MODEL X

COVER,ENGINE SPROCKET

€ 36.50

0211205108
ref: 17

SCREW

€ 2.00

0211206608
ref: 18

SCREW 6X60

€ 2.50

0832121058
ref: 19

LOCK WASHER

€ 2.00

0832121068
ref: 20

LOCK WASHER

€ 2.50

0932013004
ref: 21

CUSHION

€ 4.50
