MUFFLER

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

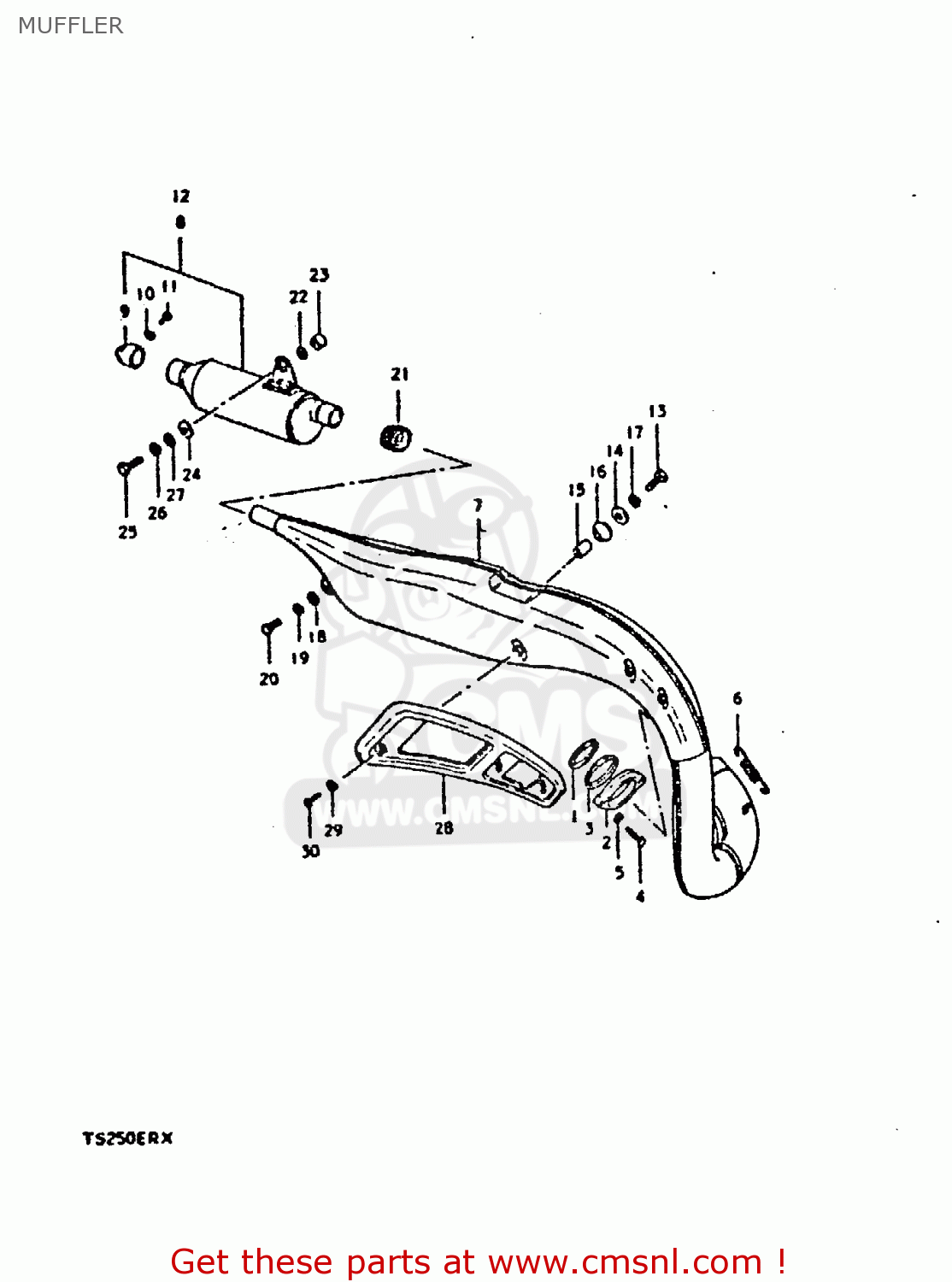

Muffler diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

MUFFLER TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
MUFFLER TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
MUFFLER TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
1
1418130080
ref: 1
GASKET,EXHAUST PIPE (NAS)
1418130080
€ 11.50
2
1418230000
ref: 2
CLAMP,EXHAUST PIPE
1418230000
€ 36.50
3
1418430010
ref: 3
GASKET,EXHAUST PIPE
1418430010
€ 5.50
4
0110706258
ref: 4
BOLT
€ 2.00
5
0832121068
ref: 5
LOCK WASHER
0832121068
€ 2.50
6
0944211002
ref: 6
SPRING
€ 0.00
7-1
NOTUSED
ref: 7-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-2
1431030911
ref: 7-2
E2, E4, E16, E17, E1
MUFFLER ASSEMBLY,FIRST
€ 466.00
8-1
1430330900
ref: 8-1
TO 14303-30910
MUFFLER, 2ND
€ 185.00
8-2
1430330910
ref: 8-2
MUFFLER, 2ND
€ 185.00
9
NOTUSED
ref: 9
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
0832121068
ref: 10
LOCK WASHER
0832121068
€ 2.50
11
0211206088
ref: 11
SCREW
€ 2.00
12
NOTUSED
ref: 12
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
13
0110708308
ref: 13
BOLT (8X30)
0110708308
€ 2.50
14
0916008007
ref: 14
WASHER (8.7X22X2)
0916008007
€ 2.00
15
0918008048
ref: 15
SPACER (8X12X15)
0918008048
€ 3.50
16
1477230500
ref: 16
DAMPER,MUFFLER,FR
1477230500
€ 3.00
17
0832121088
ref: 17
LOCK WASHER
0832121088
€ 2.00
18
0832221088
ref: 18
WASHER
0832221088
€ 2.00
19
0832121088
ref: 19
LOCK WASHER
0832121088
€ 2.00
20
0110708168
ref: 20
BOLT
€ 2.00
21-1
1477130900
ref: 21-1
MODEL T, TO 14771-30
CONNECTOR,MUFFLER
€ 19.00
21-2
1477130901
ref: 21-2
MODEL X
CONNECTOR,MUFFLER
1477130901
€ 19.00
22
0916008004
ref: 22
WASHER
0916008004
€ 2.50
23
0918008083
ref: 23
SPACER
0918008083
€ 4.50
24
0932014006
ref: 24
CUSHION
0932014006
€ 3.50
25
0110708258
ref: 25
BOLT
0110708258
€ 2.50
26
0832121088
ref: 26
LOCK WASHER
0832121088
€ 2.00
27
0916008004
ref: 27
WASHER
0916008004
€ 2.50
28
1478130900
ref: 28
COVER,MUFFLER
€ 0.00
29
0832121068
ref: 29
LOCK WASHER
0832121068
€ 2.50
30
0211206088
ref: 30
SCREW
€ 2.00
