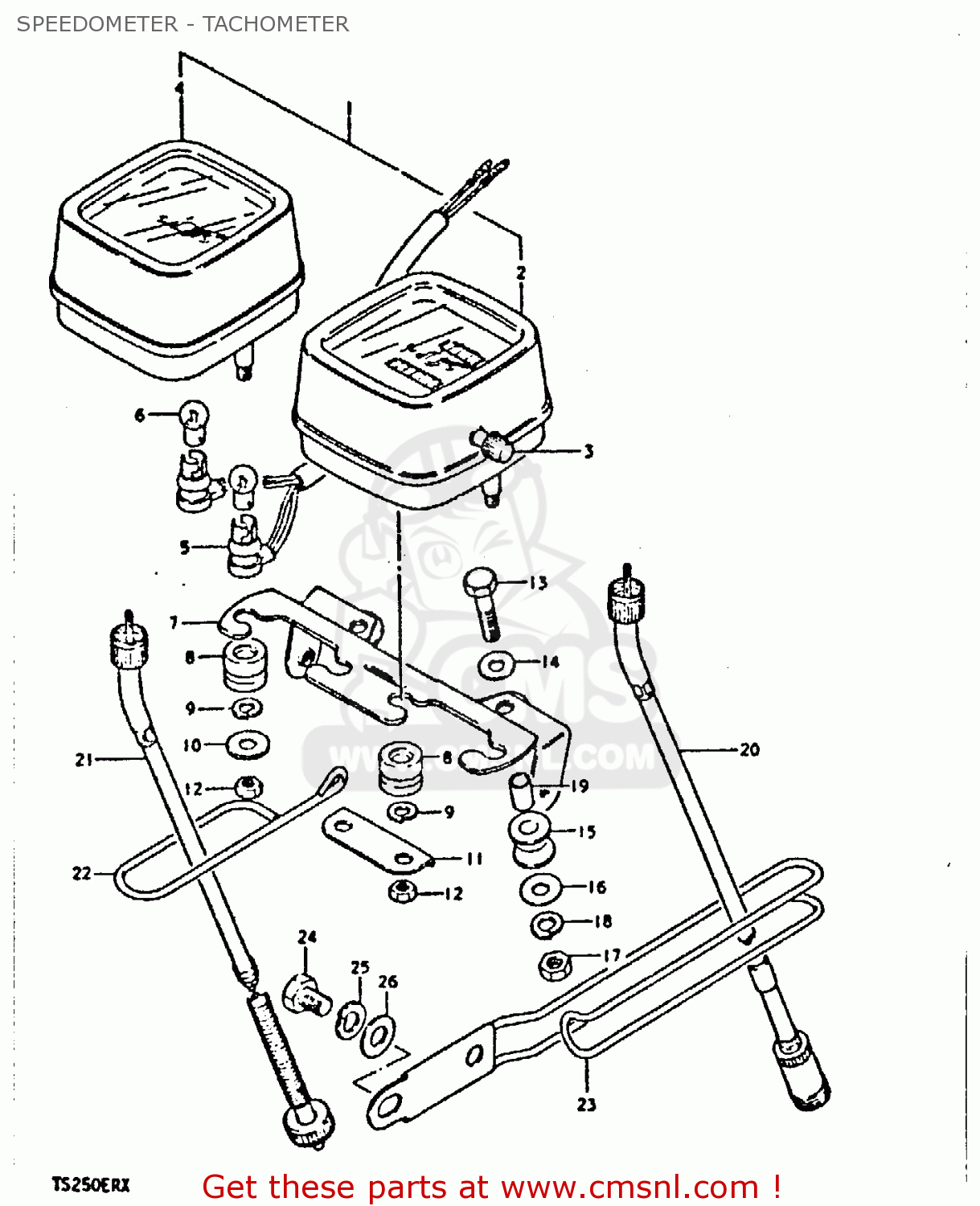

SPEEDOMETER - TACHOMETER - TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

ref

part #

description

quantity

1-1

NOTUSED
ref: 1-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-2

3410030933
ref: 1-2
MILE & KILO SCALE

SPEED/TACHOMETER ASSY

€ 0.00

2-1

NOTUSED
ref: 2-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-2

3411030931
ref: 2-2
MILE & KILO SCALE

METER,SPEEDOMETER (KM/MPH)

€ 216.00

3

3412448540
ref: 3

KNOB,TRIP METER

€ 0.00

4

3421030900
ref: 4

TACHOMETER

€ 109.00

5

3417346770
ref: 5

SOCKET,METER

€ 15.50

6

0947106002
ref: 6

BULB(6V/3W)

€ 2.50

7

3495030901
ref: 7

BRACKET,COMBINATION METER

€ 37.50

8

3418929330
ref: 8

CUSHION

€ 3.50

9

0832121058
ref: 9

LOCK WASHER

€ 2.00

10

3418130520
ref: 10

WASHER,METER

€ 1.50

11

3418248510
ref: 11

PLATE,METER CONNECTING

€ 4.00

12

3418548540
ref: 12

NUT

€ 2.50

13

0110706308
ref: 13

BOLT

€ 2.50

14

0832221068
ref: 14

WASHER

€ 2.00

15

3495615100
ref: 15

CUSHION

€ 4.00

16

0916006007
ref: 16

WASHER

€ 2.00

17

0831011068
ref: 17

NUT

€ 2.50

18

0832121068
ref: 18

LOCK WASHER

€ 2.50

19

0918006040
ref: 19

SPACER (6.1X8X15.5)

€ 2.00

20-1

3491030910
ref: 20-1
MODEL T, TO 34910-30

CABLE ASSEMBLY,SPEEDOMETER

€ 31.50

20-2

3491030911
ref: 20-2
MODEL X

CABLE ASSEMBLY,SPEEDOMETER

€ 31.50

21-1

3494030900
ref: 21-1
MODEL T, TO 34940-30

CABLE ASSEMBLY,TACHOMETER

€ 23.50

21-2

3494030901
ref: 21-2
MODEL X

CABLE ASSEMBLY,TACHOMETER

€ 23.50

22

3494830900
ref: 22

GUIDE,TACHOMETER CABLE

€ 0.00

23

5862030501
ref: 23

GUIDE,CABLE

€ 16.00

24

0110708128
ref: 24

BOLT 8X12

€ 2.50

25

0832121088
ref: 25

LOCK WASHER

€ 2.00

26

0832211088
ref: 26

WASHER

€ 2.00
