FUEL TANK (TS250ERX)

TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

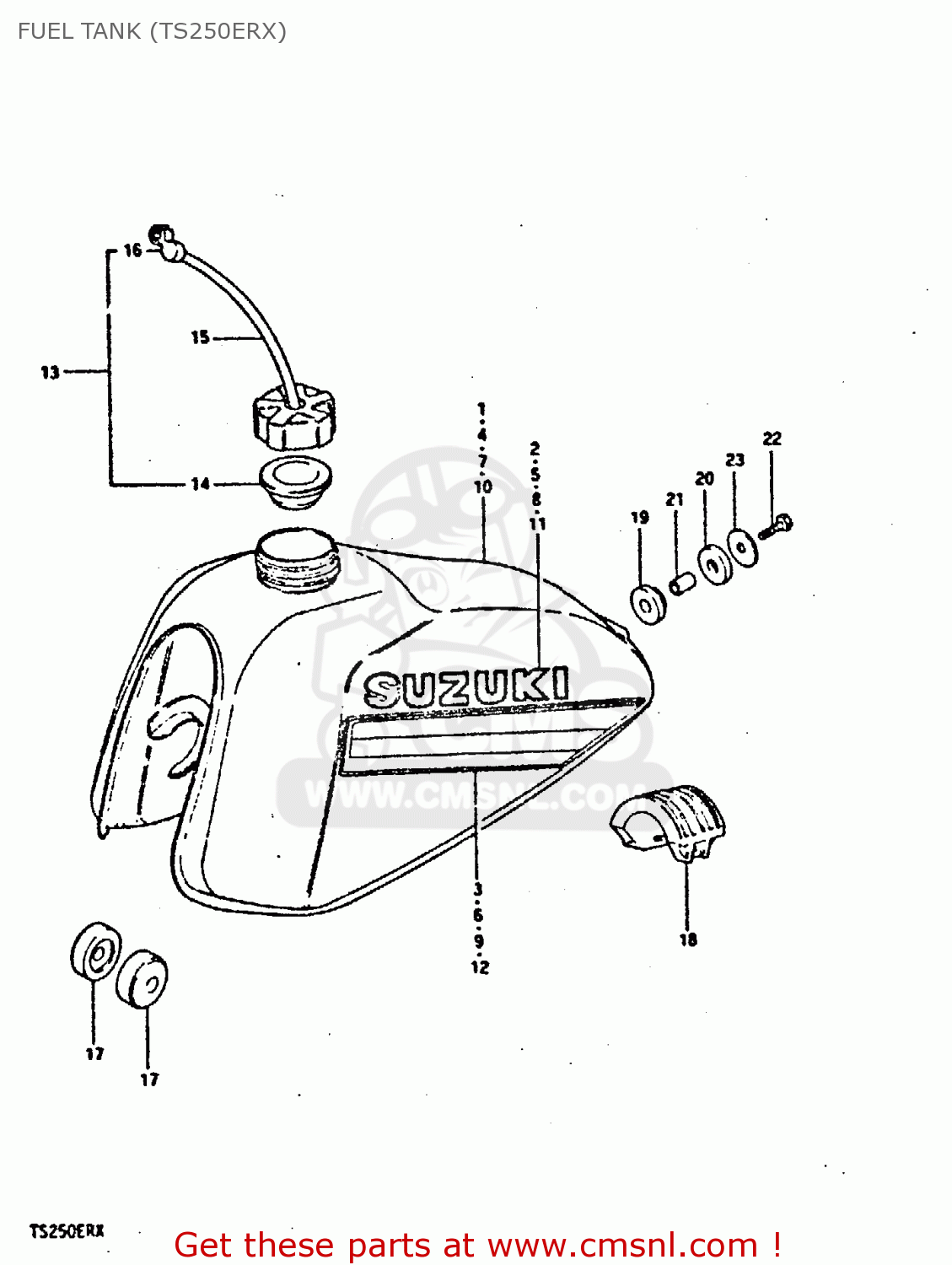

Fuel tank (ts250erx) diagram TS250ER 1981 (X) (E1 E2 E4 E09 E16 E17 E18 E21 E22 E24 E30 E39)

prices are in EUR

ref

part #

description

quantity

441003097008Y
ref: 1

TANK, FUEL (BLUE)

€ 184.00

6811129320064
ref: 2

EMBLEM

€ 10.50

681103092074U
ref: 3

TAPE SET

€ 0.00

441003097007P
ref: 4

TANK, FUEL (RED)

€ 184.00

6811129320064
ref: 5

EMBLEM

€ 10.50

681103092074T
ref: 6

TAPE SET

€ 0.00

4410030970163
ref: 7

TANK, FUEL (YELLOW)

€ 184.00

6811129320019
ref: 8

EMBLEM(BLACK)

€ 12.50

681103092067H
ref: 9

TAPE SET

€ 24.50

4410030970189
ref: 10

TANK, FUEL (WHITE)

€ 184.00

6811129320019
ref: 11

EMBLEM(BLACK)

€ 12.50

681103092067H
ref: 12

TAPE SET

€ 24.50

4420048511
ref: 13

CAP SET,FUEL TANK

€ 32.50

4424840400
ref: 14

GASKET,FUEL TANK CAP (NAS)

€ 4.50

0934305031
ref: 15

HOSE

€ 13.00

4448632101
ref: 16

CLAMP,FUEL TANK BREATHER HOSE

€ 3.50

0932910007
ref: 17

CUSHION

€ 3.00

4454141300
ref: 18

CUSHION,FUEL TANK

€ 9.00

0932012013
ref: 19

CUSHION

€ 3.00

0932012017
ref: 20

CUSHION

€ 2.50

0918008032
ref: 21

SPACER (8.2X12X17)

€ 5.00

0110708308
ref: 22

BOLT (8X30)

€ 2.50

0916008002
ref: 23

WASHER (8.5X29X1.6)

€ 2.00

FUEL TANK (TS250ERX)
